13 Chapter 2: Hardware Setup

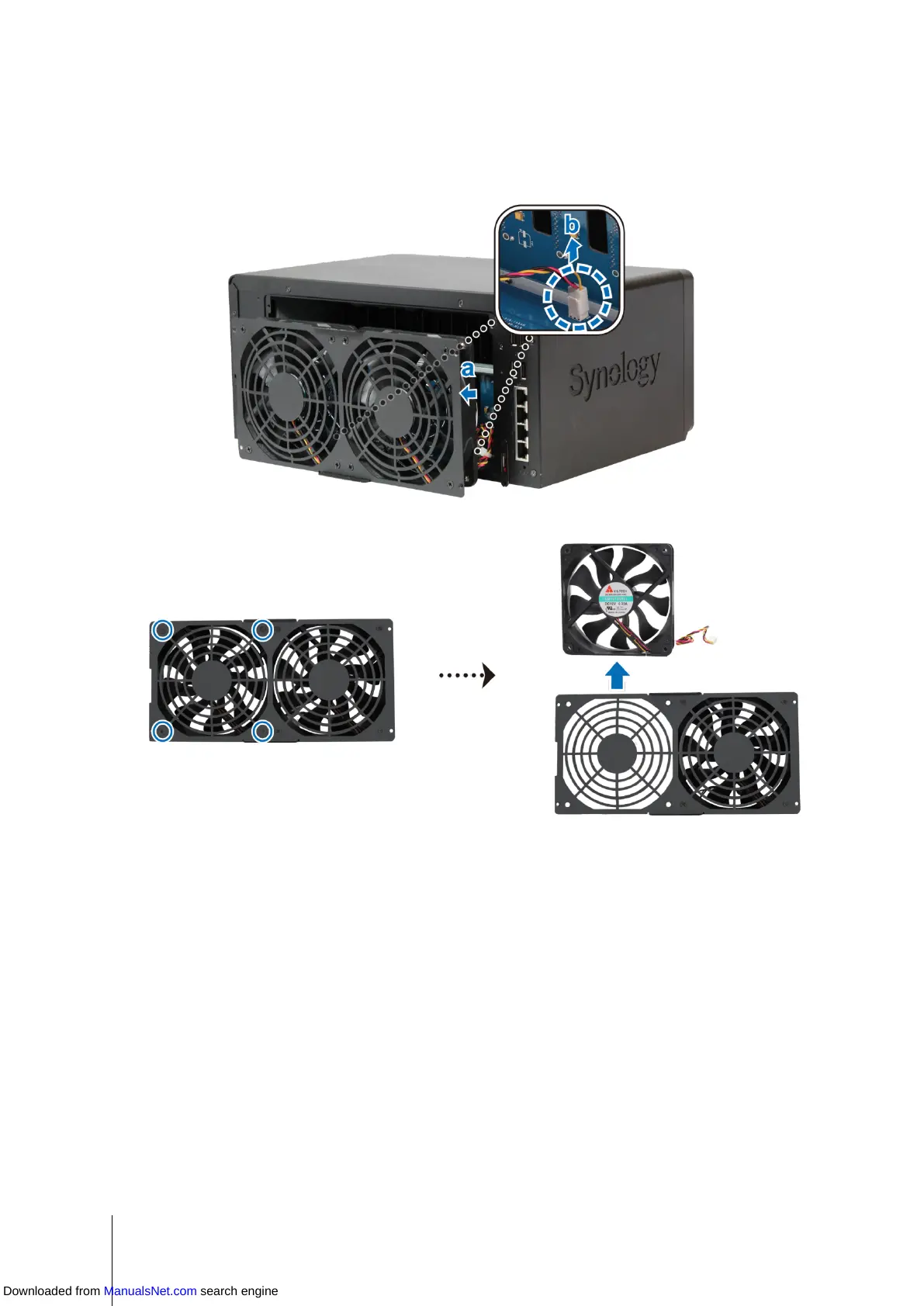

4 Remove the malfunctioning fan:
a Pull the fan panel from your DiskStation.
b Disconnect the 2 fan cables from the connectors located near the bottom of the fan socket, and then remove
the fan panel.
c Remove the 4 screws that secure the malfunctioning fan, and then remove the fan.
