Synrad Firestar f-Series operator’s manual
Mounting
4
Carefully position the laser so that each thru hole in the baseplate aligns with a spherical washer and
threaded mounting hole.
5
Insert the appropriate metric or standard capscrews, included in the laser’s ship kit, through Firestar’s
baseplate, through the spherical washers, and into the threaded holes of the mounting surface (see
Figure 1-9). Turn the screws by hand until the threads engage.
Figure 1-9 Detail of fastening into mounting surface
6
Evenly tighten all three capscrews. For M8 capscrews, torque to 12 N m; for M10 screws, torque to
24 N m. When using 5/16" screws, torque to 13 ft lb; for 3/8" capscrews, tighten to 23 ft lb.
Fastening f201/f400 lasers from below
To fasten your f201/f400 laser to a mounting surface from below, perform the following steps:
1
Refer to the appropriate outline and mounting drawing for dimensions and then drill three 8.5 mm
(f201) or 10.5 mm (f400) holes into your mounting surface. For SAE installations, drill three 0.332"
(f201) or 0.413" (f400) holes into your mounting surface.
These hole locations (referenced by Note 1 or Note 3 on the O & M drawings) should correspond to
the threaded holes labeled “M”, for metric, or “S”, for standard, as shown in Figure 1-10.

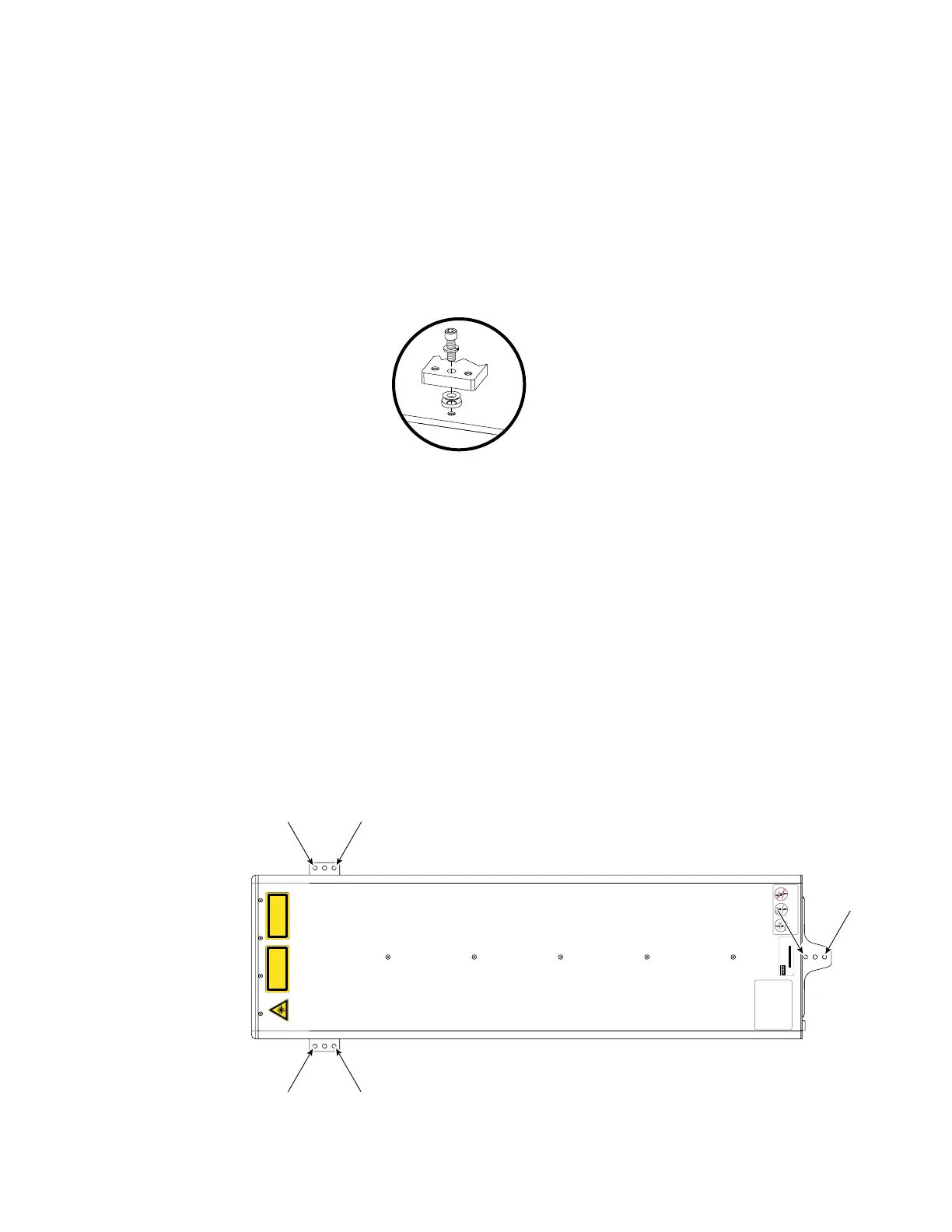

Figure 1-10 Fastening f201/f400 from below
Insert metric or SAE
fastener thru laser
mount and spherical
mounting plate
INVISIBLE LASER RADI A TIO N
A V OID EYE OR SKIN EXPOSURE T O
DIRECT OR SC A TTERED RADI A TIO N
CLASS 4 LASER P R ODUC T
EN-60825-1, 2007
1400 W A TTS MA X
10200-10800 NANOMETERS
C A UTION
CONDENS A TION AN D
W A TER D AM A GE CA N
OCCUR IF COOLING W A TE R
IS BEL O W DEW POIN T .
SEE OPER A TION MAN U AL .
Insert metric or UNC
fastener thru laser
mount and spherical
washer set into threaded
mounting plate
Insert metric or UNC
fastener thru mounting
plate and spherical washer
set into threaded metric
or UNC hole in laser mount
Do not use more than
one fastener per mount-
ing foot. Doing so will
damage the laser
OR
The RF Drive circuit in this laser is designed to
sense fault conditions that could potentially
damage the laser’s electronic circuit boards.
On rare occasions, the laser may shutdown during
the start-up sequence. When this happens, the
Ready indicator will flash a series of three blinks,
pause, and then repeat. If this occurs, remove DC
power from the laser, wait 30 seconds, and then
re-apply DC power.
If the Ready indicator continues to flash, contact
SYNRAD, Inc. as this may indicate a serious
problem in the laser’s control circuit.
Cooling fittings
removed for clarity
Top View
(f400 model shown)
S
MODEL #: FSF400SD
SERIAL #: F400204082943
TESTED AT: 96V MFG: July 22, 2008
This laser component does not comply with standards for complete
laser products as specified by 21 CFR 1040.10 or IEC 60825-1.
SYNRAD, Inc. 4600 Campus Place, Mukilteo WA 98275 425.349.3500
To Next Page
