Synrad Firestar f201 - Figure 3-16 Firestar Output Driving PLC Input Module

technical reference
323
Synrad Firestar f-Series operator’s manual
User I/O connections

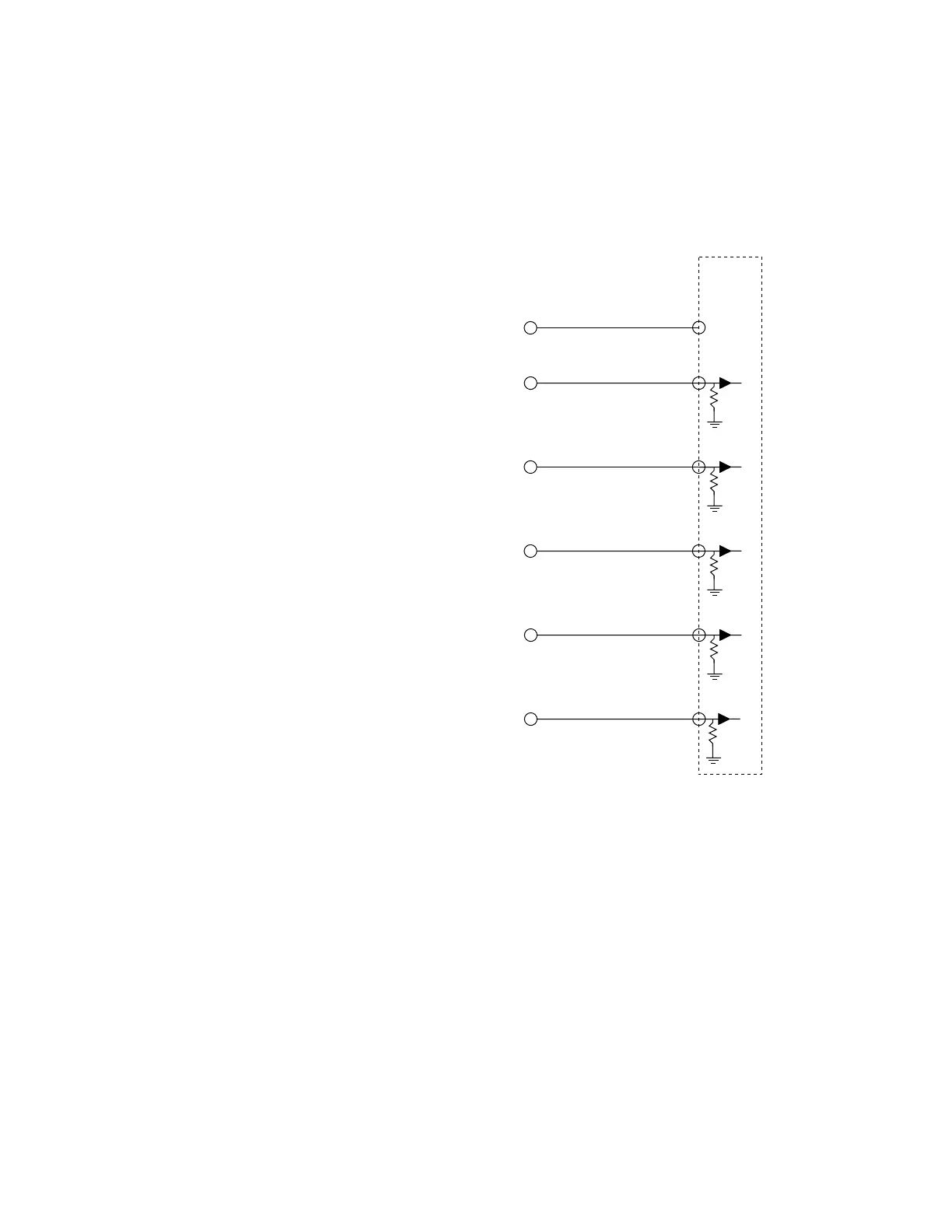

Figure 3-16 illustrates how Firestar’s outputs can drive the DC Input Module of a Programmable Logic
Controller (PLC). By supplying voltage (+VDC) to Pin 13, Output Common, each Firestar output is
independently switched to activate individual PLC inputs.
USER I/O PINS
PLC
DC
INPUT
MODULE
(13)
OUTPUT COMMON
(6)
LASER ACTIVE
(7)
OVER TEMPERATURE
(8)
LASER READY
(14)
SHUTTER OPEN
(15)
INTERLOCK OPEN
V+
(+5–24V)
Figure 3-16 Firestar output driving PLC input module
