getting started
10
SSYNRAD OEM v30 Operator’s Manual Version 2
Connecting
Cooling tubing connections
The following procedure will guide you in conguring the most ecient cooling system. Please connect
your system exactly as described below.
To connect cooling tubing to your v30 laser, refer to Figure 1-3 and perform the following steps.

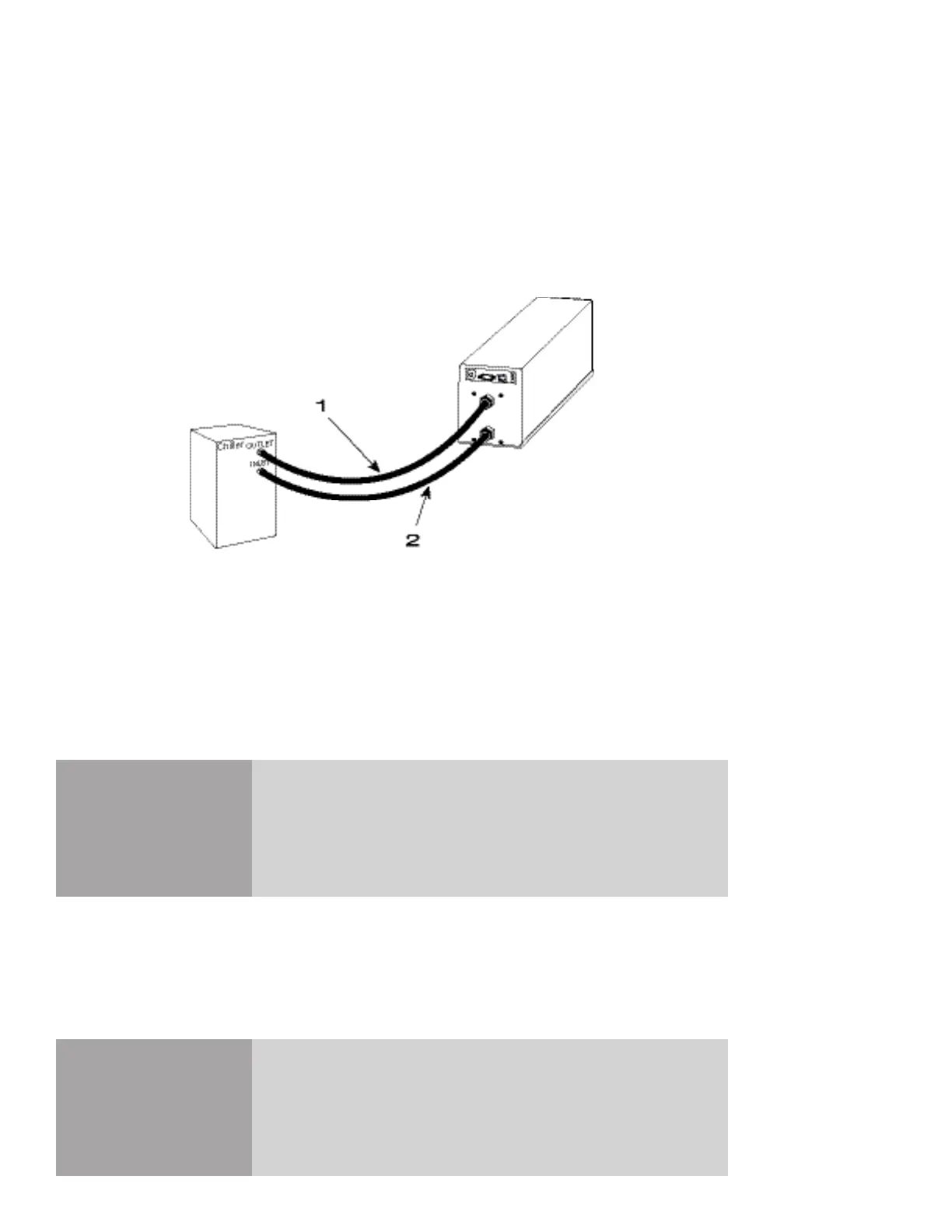

Figure 1-3 OEM v30 cooling connections
1
Cut and connect a length of 1/2-inch O.D. polyethylene cooling tubing to t between the chiller’s
Outlet port and the upper WATER IN port on the rear of the OEM v30 laser.
2
Cut and connect a length of tubing to t between the lower WATER OUT port on the rear of the
laser and the chiller’s Inlet port.
Caution
possible
equipment
damage
Inlet coolant temperature must be maintained above the dew point
temperature to prevent condensation and water damage to the v30
laser.
Caution
possible
equipment
damage
Operating the laser at coolant temperatures above 22 °C (72 °F)
may result in decreased laser performance and/or premature failure of
electronic components.
3
Turn on the chiller and adjust the coolant temperature setpoint to between 18 °C to 22 °C. Regulate
coolant ow to 3.8 lpm (1.0 GPM) at less than 414 kPa (60 PSI) of pressure.
4
Closely examine all cooling connections and verify that there are no leaks.
