SYNRAD OEM v30 Operator’s Manual Version 2
OEM v30 packaging instructions

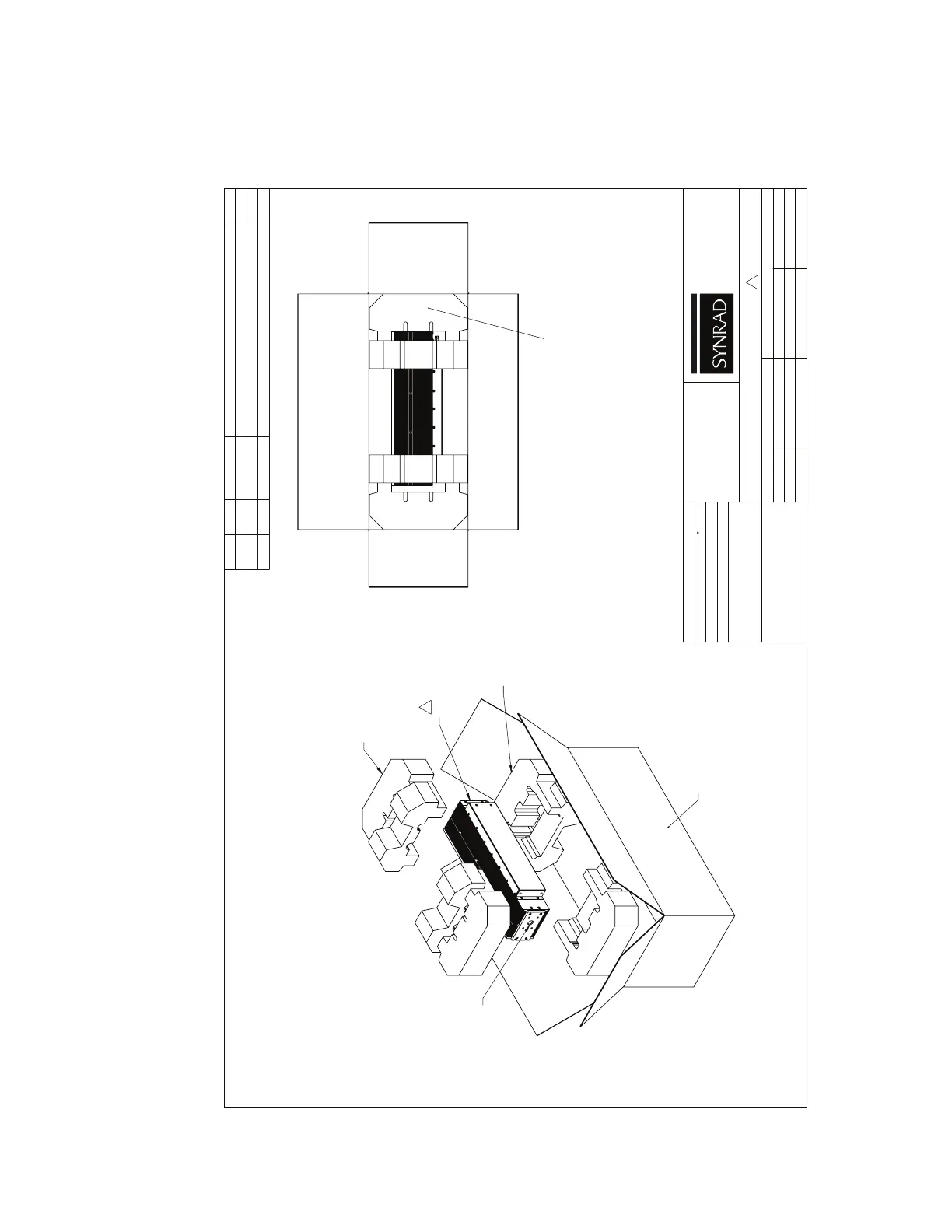

Figure 4-20 OEM v30 air-cooled packaging instructions
2X TOP FOAM REMOVE CUT-OUTS AS REQUIRED FOR PROPER FIT
2X BOTTOM FOAM REMOVE CUT-OUTS AS REQUIRED FOR PROPER FIT
LASER (Vi30 VERSION SHOWN)
FRONT OF BOX
FRONT OF LASER
(BEAM EXIT)
B
TUCK POWER CALBE
(NOT SHOWN) IN THIS AREA
IMPORTANT NOTE: FAILURE TO PORPERLY PACKAGE LASER USING SYNRAD SHIPPING BOX AND FOAM/CARDBOARD INSERTS AS SHOWN MAY VOID WARRANTY. CUSTOMERS MAY INCUR ADDITIONAL
REPAIR CHARGES DUE TO SHIPPING DAMAGE CAUSED BY IMPROPER PACKAGING.
STEP BY STEP PACKAGING INSTRUCTIONS:
POSITION BOX SO LOGO ON TOP FLAP IS FACING YOU (LOGO WILL BE ON THE LEFT SIDE).
1.
POSITION BOTTOM FOAM INSIDE BOX AS SHOWN.
2.
PLACE LASER INSIDE FOAM CAVITIES AS SHOWN, MAKING SURE FRONT OF LASER IS ON THE LEFT
3.
SIDE AND TOP OF LASER IS FACING YOU. PULL CABLES TO RIGHT SIDE AND COIL. NOTE: CABLES NOT SHOWN FOR EASE OF ILLUSTRATION
.
4.
PLACE TOP FOAM OVER LASER AS SHOWN
.
5.
TUCK CABLE AS SHOWN
.
6.
DO NOT SHIP WITH KEY IN SWITCH TO AVOID DAMAGE TO KEYSWITCH.
7.
WRITE SYNRAD RETURN AUTHORIZATION NUMBER ON OUTSIDE OF SHIPPING BOX.
8.
B
DESCRIPTION:
FINISH:
MATERIAL:
REV ECO DATE
DESCRIPTION DB
TOLERANCES UNLESS NOTED:
.
ANGLE = ±
.
.x = ±
.
.xx = ±
.
.xxx = ±
.
PROPRIETARY
SYNRAD INC. AND SHALL NOT BE
USED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT WRITTEN
PERMISSION OF SYNRAD INC.
PART NUMBER:
DWG/FILE NUMBER:
SHEET
ENG:
DRAWN BY:
DATE:
UNITS:
CATEGORY:
CHECKED BY:
DATE:
SIZE: B
FINISH CLASS:
APPROVED BY:
DATE:
SYNRAD INC.
4600 Campus Place
Mukilteo, WA 98275 Phone: (425)349-3500 Fax: (425)349-3667
PACKAGING, V30/Vi30
26-Apr-11
900-20277-01
1
.
.
.
900-20277-01
of
1
I
D. DUVALL
Inches
SEE BOM
.
.
DMD
RELEASE TO PRODUCTION
26-Apr-11
4325A
UPDATE DESCRIPTION
B
DMD
23-May-12
4564
.
.
.
.
.
