SYNRAD OEM v30 Operator’s Manual Version 2
OEM v30 package outline drawings

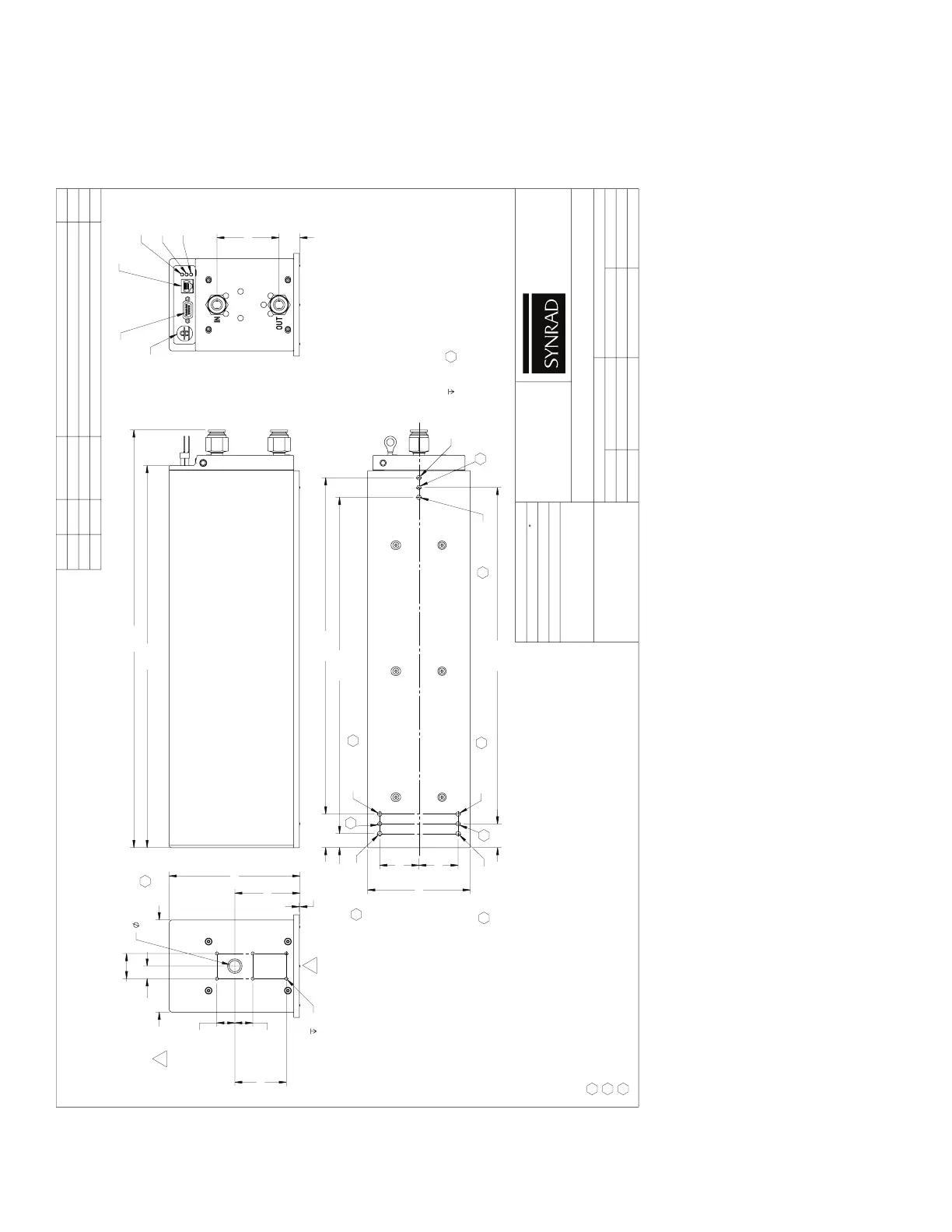

Figure 4-19 OEM v30 water-cooled package outline and mounting dimensions
18.65
17.06
.93
2.78
DC INPUT
W/IN-LINE FUSE
INTERFACE A
(DB-9)
INTERFACE B (RJ-45)
LASE (RED)
READY (AMBER)
POWER (GREEN)
.026
3X 1.125
3X .563
5.84
2.9062X .800
2X .800
2X 2.300
.500
BEAM EXIT
4.120
MTG HOLES
6X 8-32 UNC-2B
.20
ACCESSORY
C
L
3
3X 1.750 3X 1.750
4.580
1/4-20 UNC
1/4-20 UNC
M6 X 1 ISO
M6 X 1 ISO
M6 X 1 ISO
6.3mm
15.013
15.013.625
1.500
1.063
15.013
1/4-20 UNC
1
1
1
2
2
2
2
2
2
C
L
1 2
NOTES:
HARDENED BALL MOUNTING POINT, 3X (Ø.1875 BALL BEARING)
.
THIS MOUNTING HOLE PATTERN USED FOR BOTTOM ACCESS FASTENING. BEAM PATH MAY NOT BE CENTERED OR PERPENDICULAR TO FACEPLATE APERTURE
.
3
B
B
DESCRIPTION:
FINISH:
MATERIAL:
REV ECO DATE
DESCRIPTION
DB
TOLERANCES UNLESS NOTED:
2.0
ANGLE = ±
.1
.x = ±
.01
.xx = ±
.005
.xxx = ±
.
PROPRIETARY
THIS DRAWING IS PROPRIETARY TO
SYNRAD INC. AND SHALL NOT BE
USED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT WRITTEN
PERMISSION OF SYNRAD INC.
PART NUMBER:
DWG/FILE NUMBER:
SHEET
ENG:
DRAWN BY:
DATE:
UNITS:
CATEGORY:
CHECKED BY:
DATE:
SIZE: B
FINISH CLASS:
APPROVED BY:
DATE:
SYNRAD INC. 4600 Campus Place Mukilteo, WA 98275 Phone: (425)349-3500 Fax: (425)349-3667
OUTLINE & MOUNTING, WATER-COOLED V30, OEM
1-Sep-09
300-18965-03
1
.
.
.
300-18965-03
of
1
.
D. DUVALL
Inches
.
.
.
DMD
RELEASE TO PRODUCTION
1-Sep-09
4096A
ADD 4.120 DIMENSION, UPDATED FRONT HOUSING
B
DMD
10-Feb-10
4167
.
.
.
.
.
