ti-Series Laser Quick Start Guide

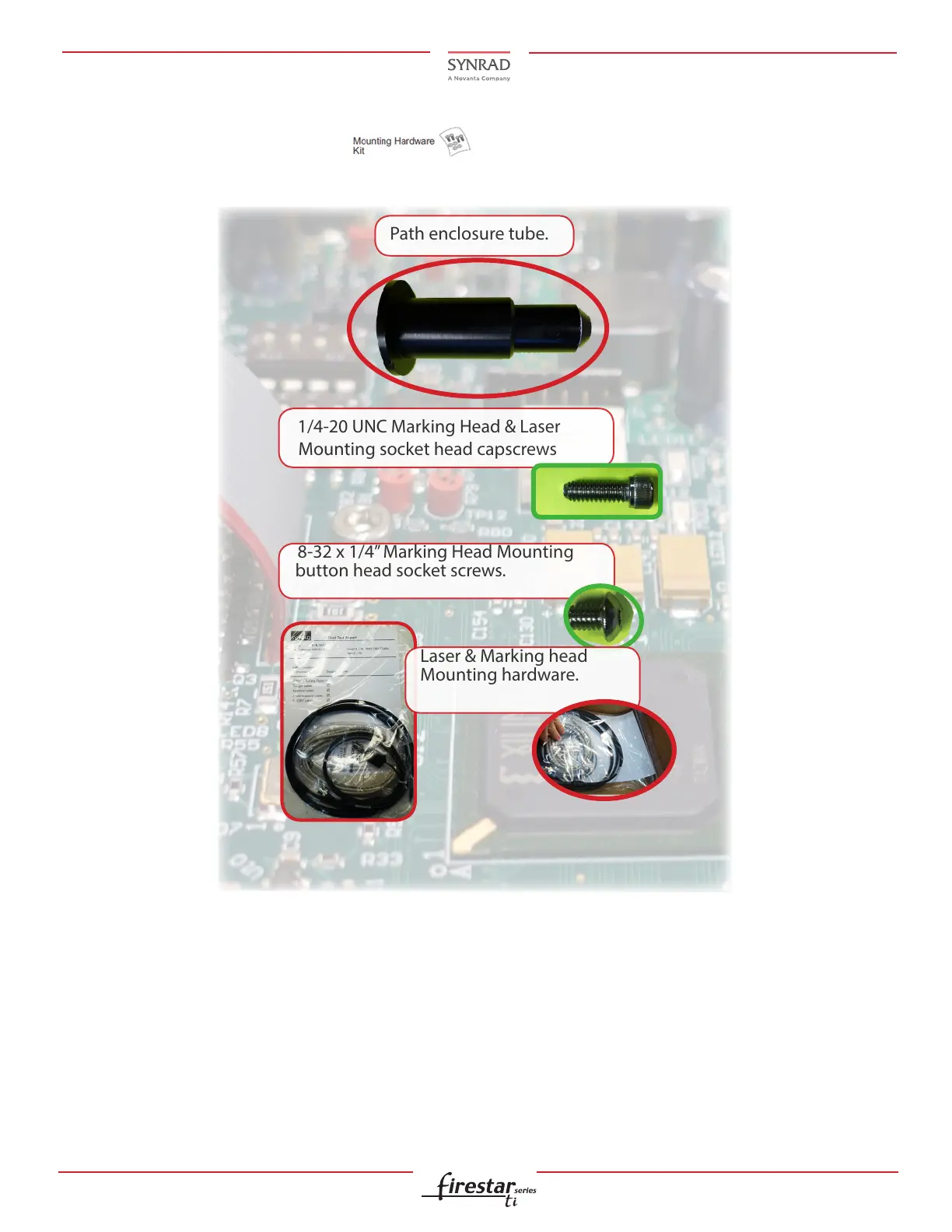

1/4-20 UNC Marking Head & Laser
Mounting socket head capscrews
8-32 x 1/4” Marking Head Mounting
button head socket screws.
Laser & Marking head
Mounting hardware.
Mounting (With a SYNRAD Marking Had):
7. Locate the Mounting Hardware ( ) path enclosure tube, marking head & laser hard-
ware (varies per laser & kit ordered. Marking head mounting hardware ships with the head in a sepa
rate box and/or packaging depending on the package ordered.
To Next Page
