Syntec 60CA - Teach Functionality

机床产品/Machine Tool Products – 60CA/60CB Simple-Type Wood Cutting Machine Operation Manual
Fenu and System Introduction– 28
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

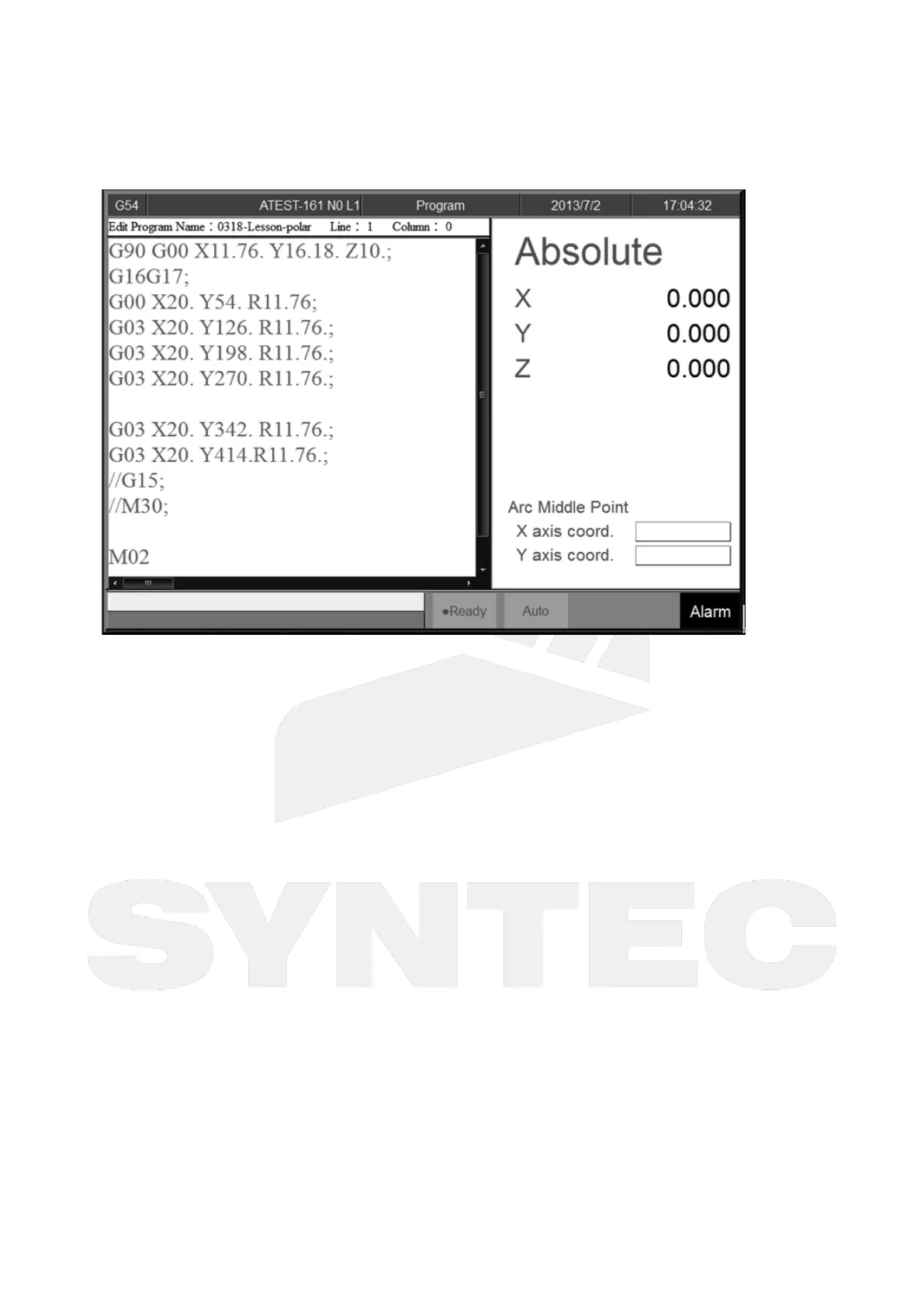

4.6.6 Teach
Command
5 Buttons type: F2 Program→Next→F3 Teach
8 Buttons type: F2 Program→F6 Teach
Function
Move the machine table with 『MPG』/『JOG』/『INJOG』 to the destination and use 『Teach』function,
input the current absolute coordinate value to NC program.
Omit the manual input problem.
Rapid Teach
Command
5 Buttons type: F2 Program→Next→F3 Teach→F1 Rapid Teach
8 Buttons type: F2 Program→F6 Teach→F1 Rapid Teach
Function
Add the current absolute coordinate as the value of 「G00 Rapid Traverse」function in current
program.
Line Cut Teach
Command
5 Buttons type:F2 Program→Next→F3 Teach→F2 Line Cut Teach
8 Buttons type:F2 Program→Next→F6Teach→F2 Line Cut Teach
Function
