INTRODUCTION
Sysmex KX-21 Operator’s Manual -- Revised October 1998 1-7
8. GRAPHIC SCREEN
8.1 Contents of Display
00/00 00:00No.0 WB
P-LCR ---.-%
MPV ---.-fL
PLT 0
×10
3
/µL PDW ---.-fL
MCHC ---.-g/dL RDW ---.-fL
MCH ---.-pg NEUT# ---.-×10
3
/µL
MCV ---.-fL MXD# ---.-
×10
3
/µL
HCT 0.0% LYM# ---.-×10
3
/µL
HGB 0.0g/dL NEUT% ---.-%
RBC 0.00×10
6
/µL MXD% ---.-%
WBC 0.0
×10
3
/µL LYM% ---.-%
No.1 WB
Next Sample No.
Next Sample
Analysis Mode Status Display
Analysis Progress Status
Analysis Result
Display Area
Menu Display Area
Ready
1:M.Discri. 2:Print 3:Paper Feed

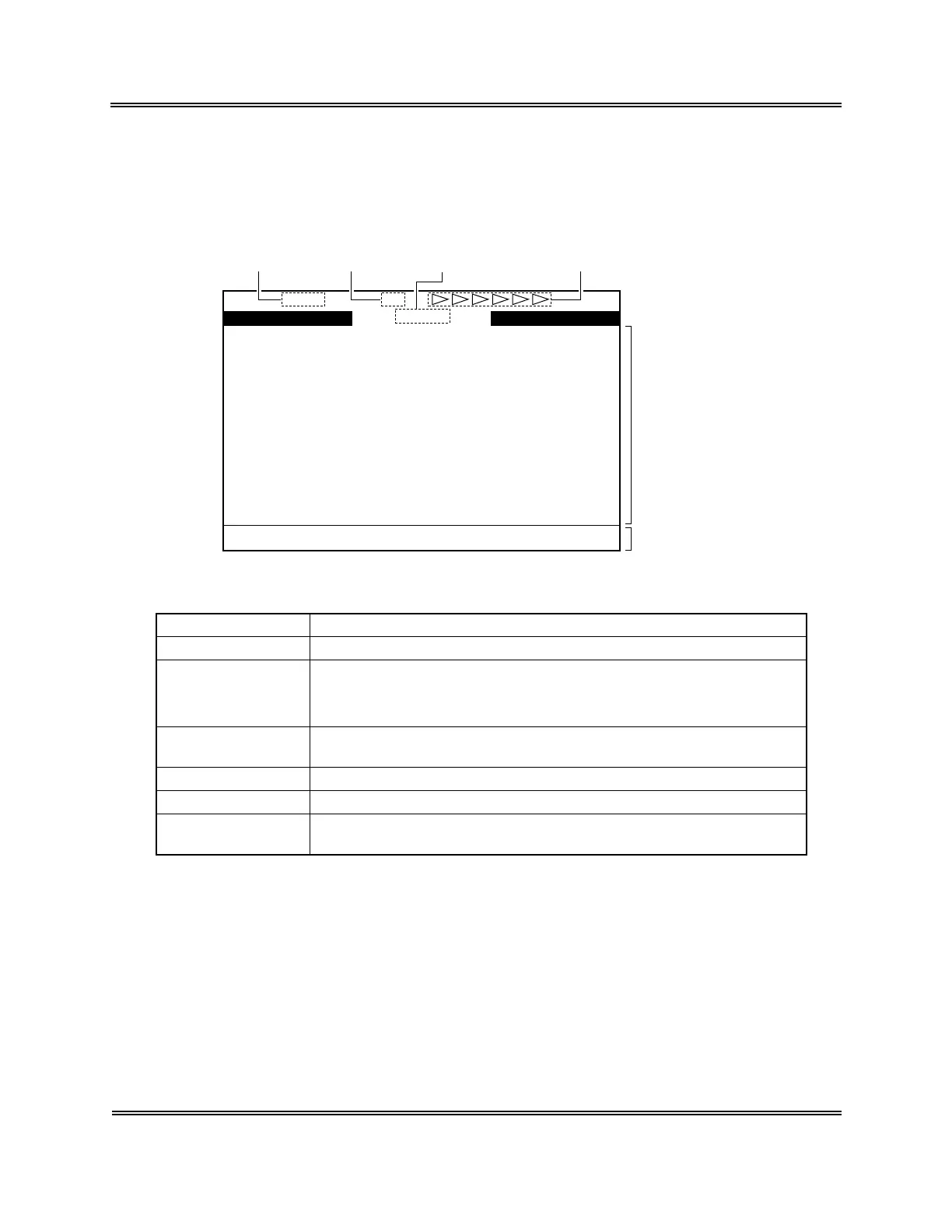

Figure 1-8-1: Graphic LCD
Name Function
Next Sample No. Displays the sample No. to be analyzed next.
Next Sample
Analysis Mode
Displays the analysis mode for the sample to be analyzed next.
WB: whole blood mode
PD: pre-diluted mode
Analysis Progress
Status
With the start-to-end analysis progress classified into six steps, the
present progress status is displayed.
Status Display Status of the unit is displayed.
Menu Display Area Useable menus for each screen are displayed.
Analysis Result
Display Area
The area for displaying analysis result
Table 1-8-1: Contents of Display
