FUNCTIONAL DESCRIPTION
9-32 Sysmex KX-21 Operator’s Manual -- Revised October 1998
8.3 Right Side Panel
2) Power Supply Switch
1) Fuse
3) Power Supply Connector

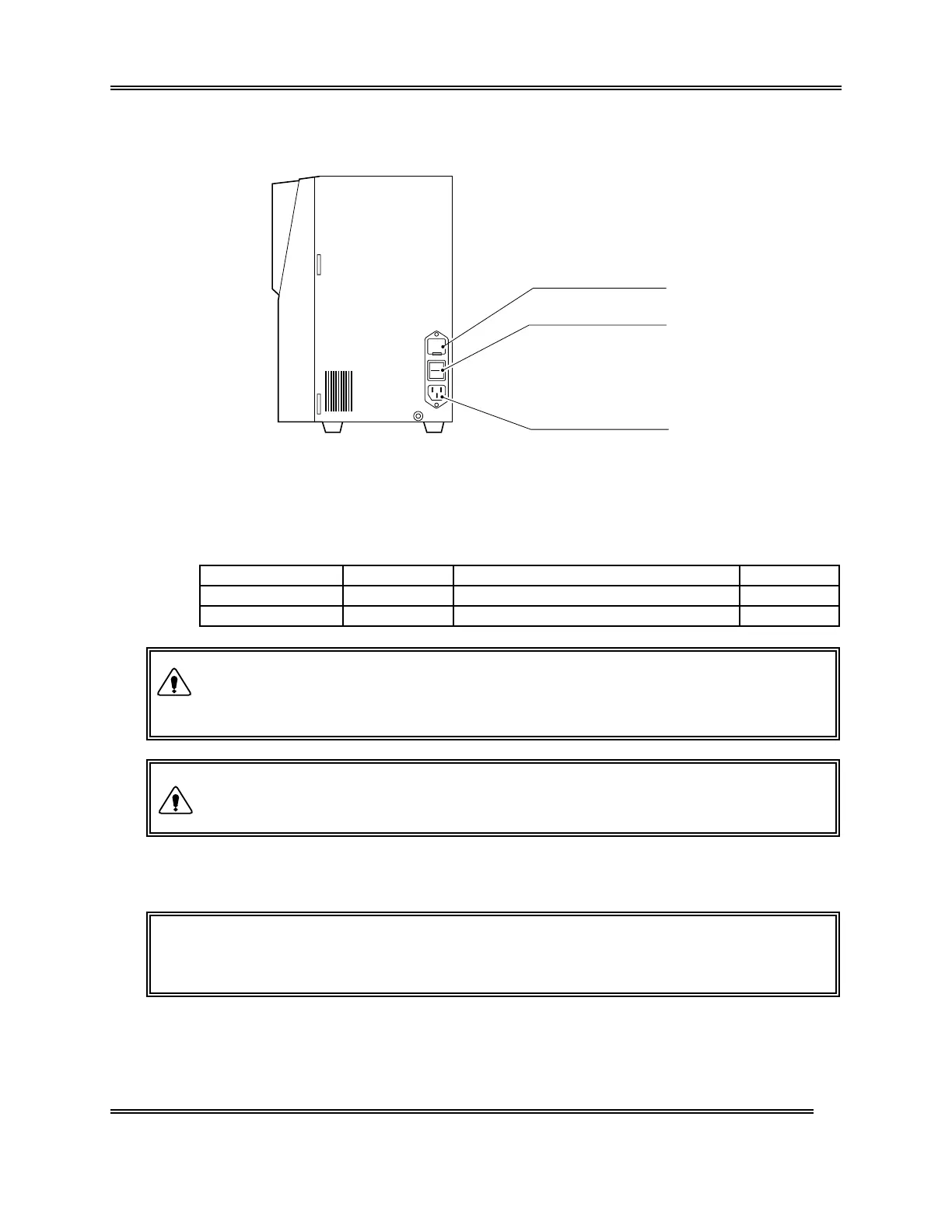

Figure 9-8-3: Right Side Panel
1) Fuse
Replace with provided time-lag type fuse. The rating will be different depending on
the instrument specification.
Specification Part No. Description Fuse Type
117 VAC 266-5109-1 Fuse 250 V 3.15 A ST4-3.15A-N1 Time Lag
220/240 VAC 266-5292-6 Fuse 250 V 2 A No. 19195 Time Lag
• To avoid risk of electrical shock, disconnect the power cord before
replacing the fuses.
• For continued protection against risk of fire, use the fuse of specified
type and rating.
2) Power Supply Switch
Turns on and off the main unit power supply.
CAUTION: • Avoid turning this switch ON and OFF continuously in short duration.
This will overload the fuse and may cause fuse blown.
3) Power Supply Connector
Using the furnished power supply cord, this connector supplies power from the outlet.
WARNING
CAUTION
Sysmex KX-21 Operator’s Manual -- Revised December 1999
