8.4 Left Side Panel
3) 250 mmHg Bellows Unit
4) Air filter
2) 0.5 kg/cm
2
Regulator
1) Trap Chamber

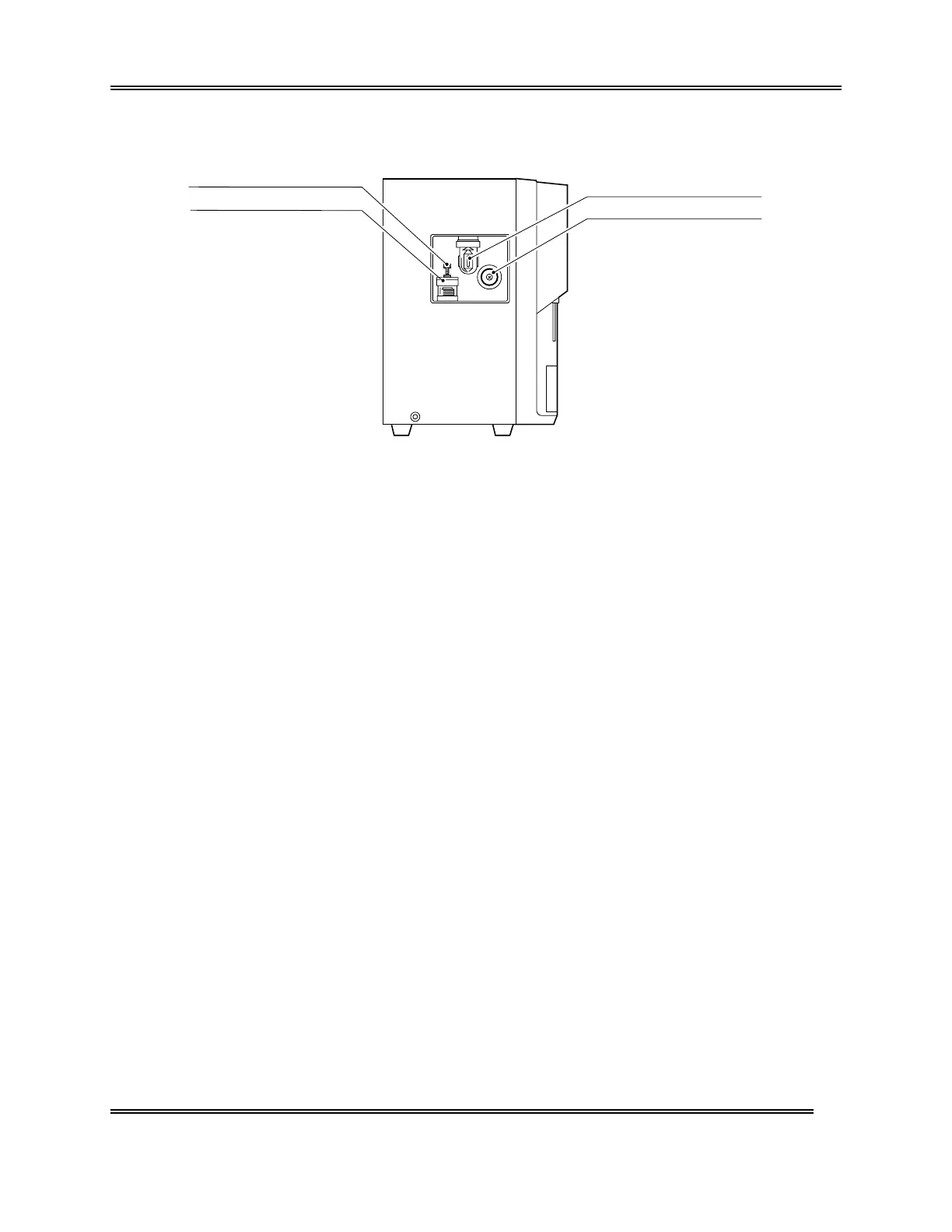

Figure 9-8-4: Left Side Panel
1) Trap Chamber
Prevents reagent, etc. from flowing into the vacuum pump of the compressor when an
error occurs with the instrument.
2) 0.5 kg/cm
2
Regulator
Regulates pressure to 0.5 kg/cm
2
.
3) 250 mmHg Bellows Unit
Regulates vacuum to 250 mmHg vacuum.
4) Air Filter
Prevents dirt and dust from entering the bellows.
