INSTALLATION
A-4 Sysmex KX-21 Operator’s Manual -- Revised October 1998
4. REMOVE SHIPPING CLAMPS
(1) Peel off the fixing tape of the outer cover gently.

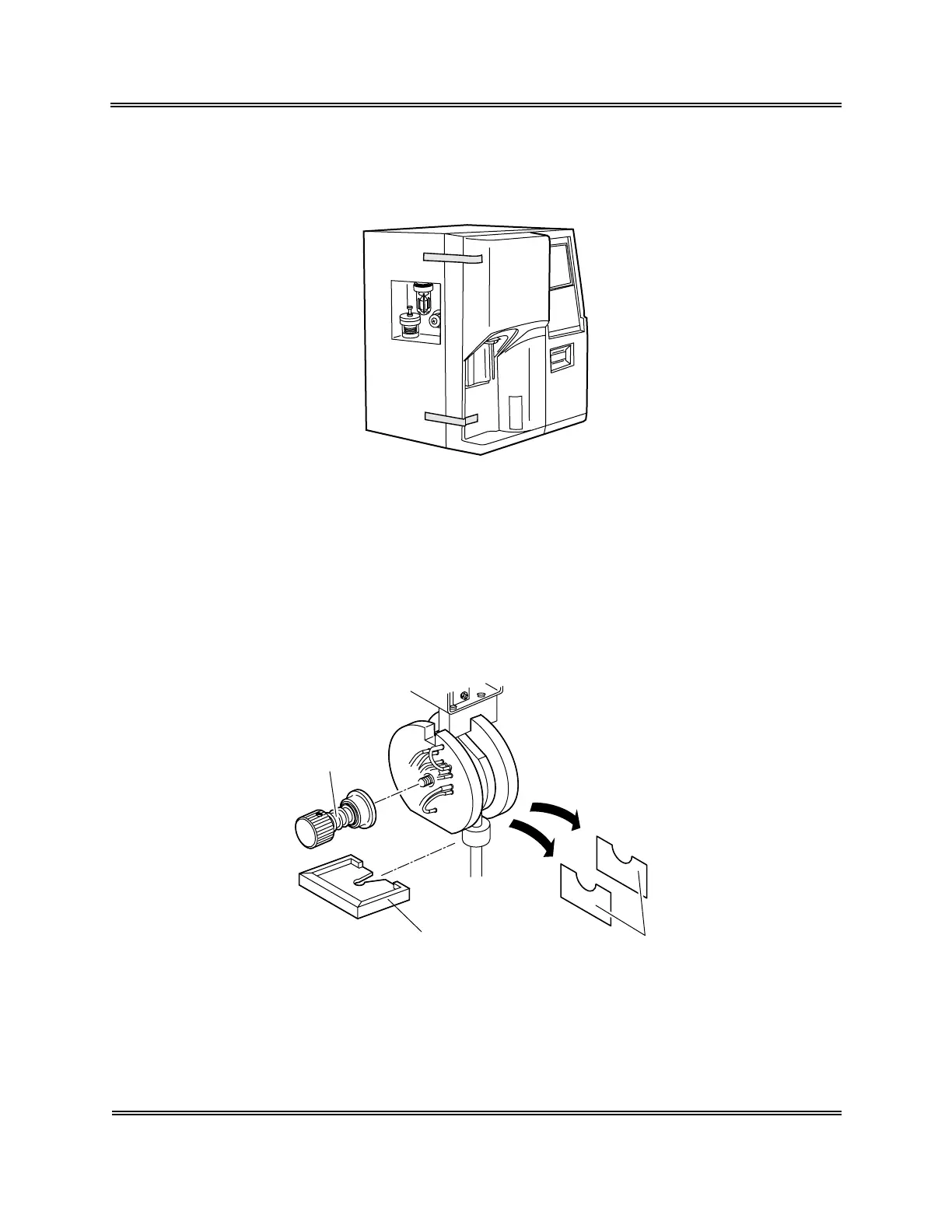

Figure A-4-1: Removing the Tape
(2) Open the front cover of the main unit.
(3) Remove the protection sheets of the sampling valve.
1) Remove the SRV fixing screw.
2) With the fixed and rotary valves separated sufficiently, remove the protection
sheets.
3) Return the valves and the SRV fixing screw to their original positions.
4) Set the provided sample rotor valve tray.
Protection Sheets
SRV Fixing Screw
Tray No. 20
Figure A-4-2: Removing the Protection Sheets
To Next Page
