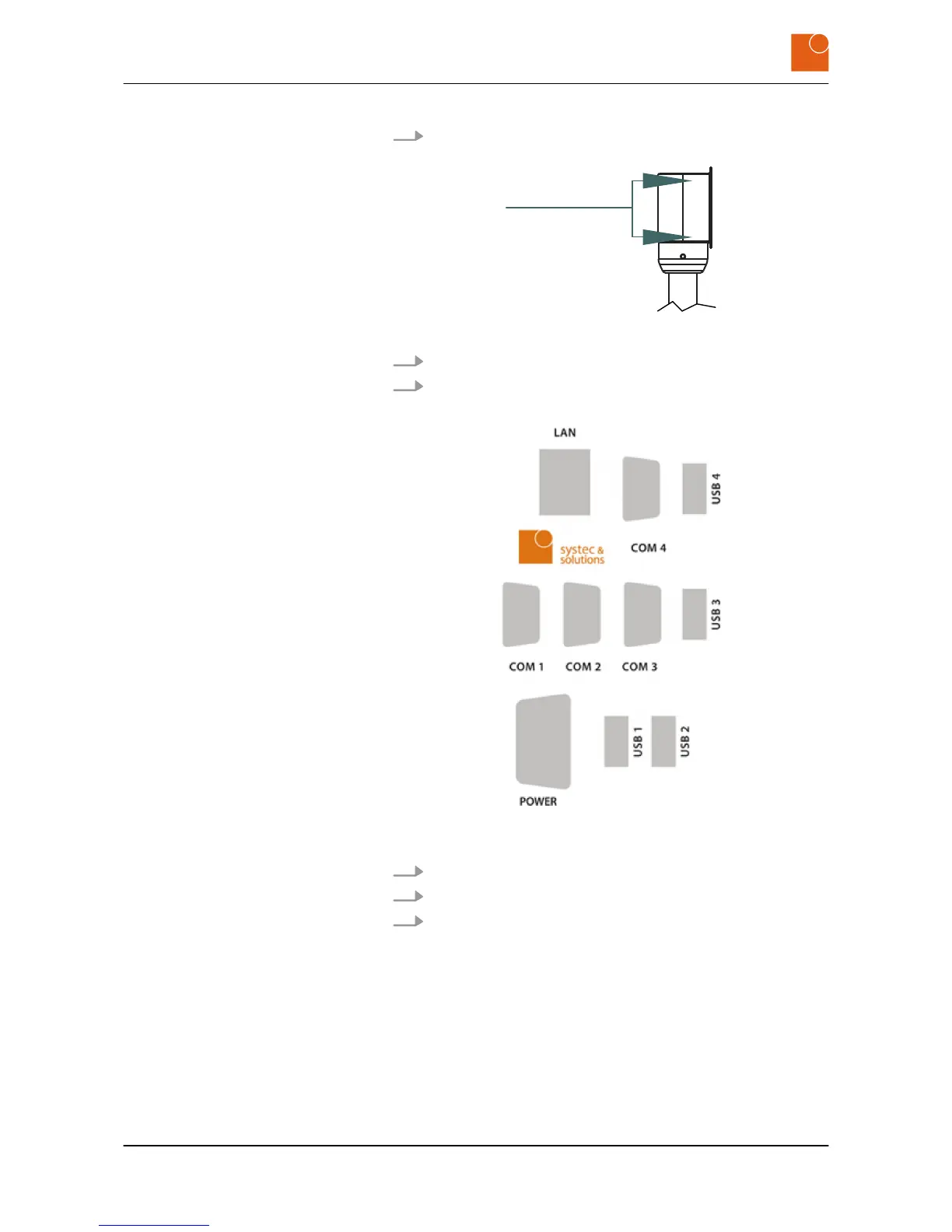

Fig. 21: Screw connections on the equipment rack adapter
2. Release the screw connections on the equipment rack adapter.
3. Lift the device off the equipment rack adapter and hold it firmly.
ð
You can now see the interface plate on the rear of the device.
Fig. 22: Interface plate on the rear of the WAVE 224 monitor/thin client
(depending on the configuration)
4. Release the screws on the mains plug.
5. Disconnect the device from the power supply.
6. Disconnect all the cables from the interface plate.
ð
The device is now unmounted.
Storage
Unmounting the device
WAVE 224 monitor/thin client - Industrial monitor/thin client
34
