System Sensor™ Smoke Sensor Model 2100ARFT
Emergencies

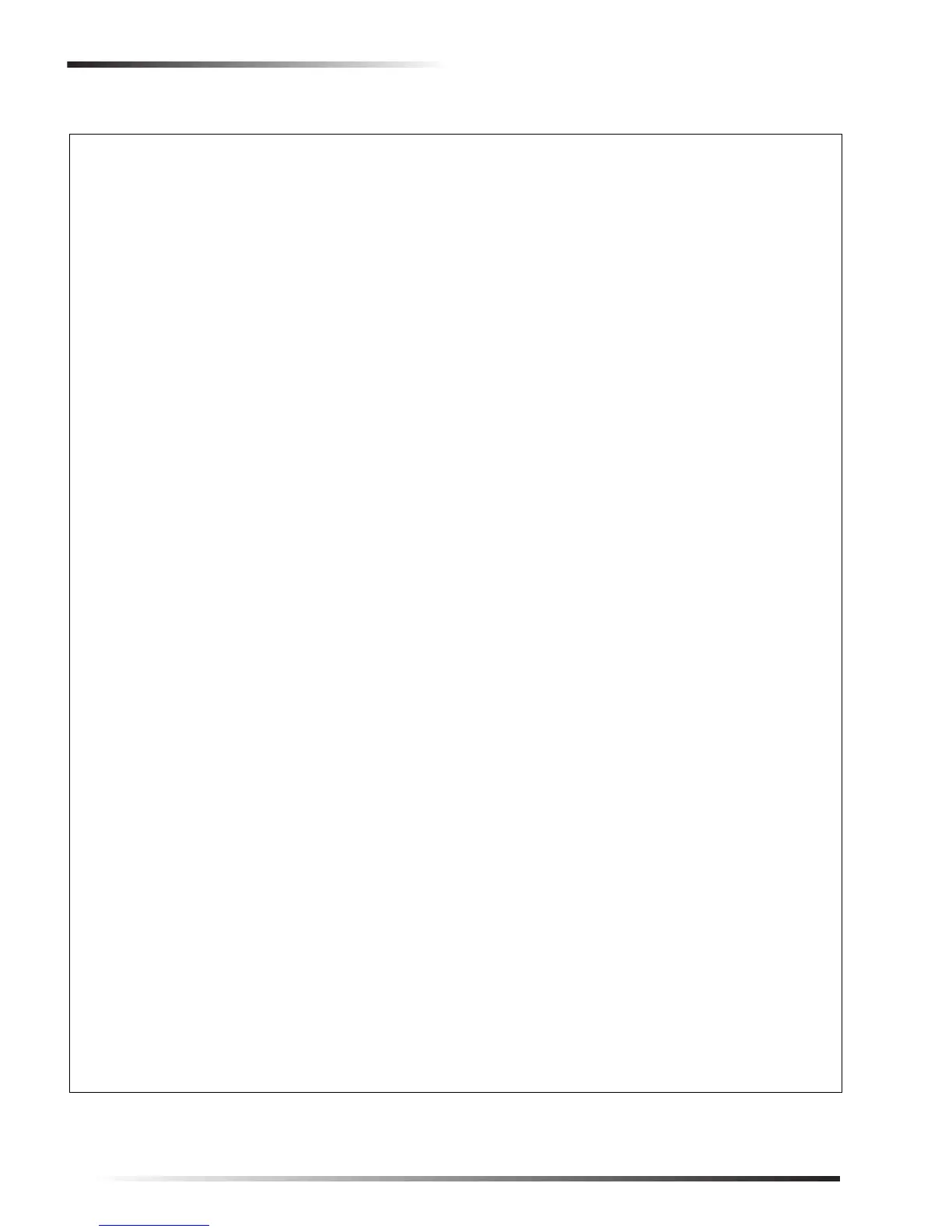

Draw you floor plan in this space.

System Sensor 2100ARFT Specifications

Power

current (typical)	12.5µA
current (peak)	28µA
current in alarm (average)	54.8mA

Operating Environment

operating temperature range	32° to 100°F (0° to 38°C)
storage temperature range	-4° to 140°F (-20° to 60°C)
humidity	90% non-condensing

Power Source

battery type	Two 3-volt lithium batteries
battery models	Sanyo CR123A, Panasonic CR123A, Duracell DL123A
battery approval	UL-approved

Sensitivity Levels

nominal sensitivity	1.00%/ft - 3.54%/ft obscuration
nominal supervisory sensitivity	2.25%/ft obscuration
nominal close to alarm	LED stops blinking at 44 sec. intervals

Weight and Dimensions

dimensions (without mounting bracket)	2.0 × 5.0″
dimensions (with mounting bracket)	2.0 × 5.5″
