System Sensor™ Smoke Sensor Model 2100ARFT
Emergencies
❑ Meet at a designated outdoor location.
❑ Emphasize that no one should return to the premises if
there is a fire.
❑ Notify fire department from a neighbor’s phone.
WARNING
!
If you arrive at the premises and hear sirens, do
not attempt to enter the building. Call for emer-
gency assistance from a neighbor’s phone.

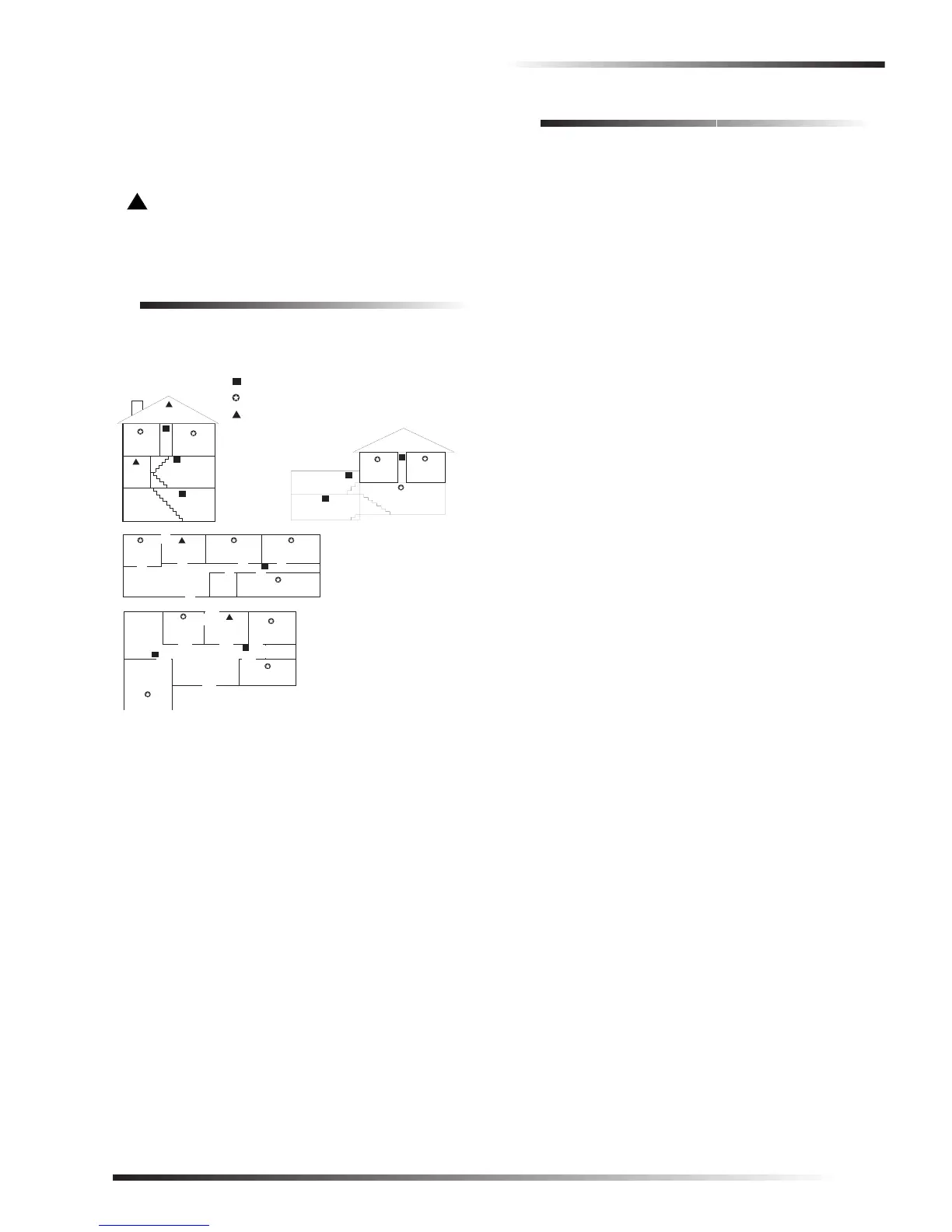

Floor Plan Example
Figure 10 is an example of a multilevel floor plan. Use it as
a guide and draw your floor plan on the next page.
Figure 10.Examples of a floor plans.
Your Floor Plan
When establishing your escape routes, consider the
following guidelines:
❑ Show all building levels.
❑ Show all exits, (two exits per room are recommended).
❑ Show the location of all components of the fire system.
❑ Show the locations of any fire extinguishers, hoses,
ladders, etc.
SMOKE ALARMS/DETECTORS FOR MINIMUM PROTECTION
SMOKE ALARMS/DETECTORS FOR ADDITIONAL PROTECTIO
N
HEAT ACTIVATED ALARMS/DETECTORS
KITCHEN
ATTIC
BASEMENT
LIVING
ROOM
BEDROOMBEDROOM
DINING
ROOM
LIVING
ROOM
KITCHEN
BEDROOM BEDROOM
BEDROOM
BATH
BEDROOM
BEDROOM
BEDROOM
KITCHEN
DINING
ROOM
TV
ROOM
LIVING
ROOM
BATH
RECREATION
ROOM
BEDROOM BEDROOM
LIVING
ROOM
BASEMENT
A smoke detector should
be located on each level.
Smoke detectors should be located
between the sleeping area and the
rest of the family living unit.
In family living units with more than
one sleeping area, locate a smoke
detector at each area.

System Sensor 2100ARFT Specifications

Power

current (typical)	12.5µA
current (peak)	28µA
current in alarm (average)	54.8mA

Operating Environment

operating temperature range	32° to 100°F (0° to 38°C)
storage temperature range	-4° to 140°F (-20° to 60°C)
humidity	90% non-condensing

Power Source

battery type	Two 3-volt lithium batteries
battery models	Sanyo CR123A, Panasonic CR123A, Duracell DL123A
battery approval	UL-approved

Sensitivity Levels

nominal sensitivity	1.00%/ft - 3.54%/ft obscuration
nominal supervisory sensitivity	2.25%/ft obscuration
nominal close to alarm	LED stops blinking at 44 sec. intervals

Weight and Dimensions

dimensions (without mounting bracket)	2.0 × 5.0″
dimensions (with mounting bracket)	2.0 × 5.5″
