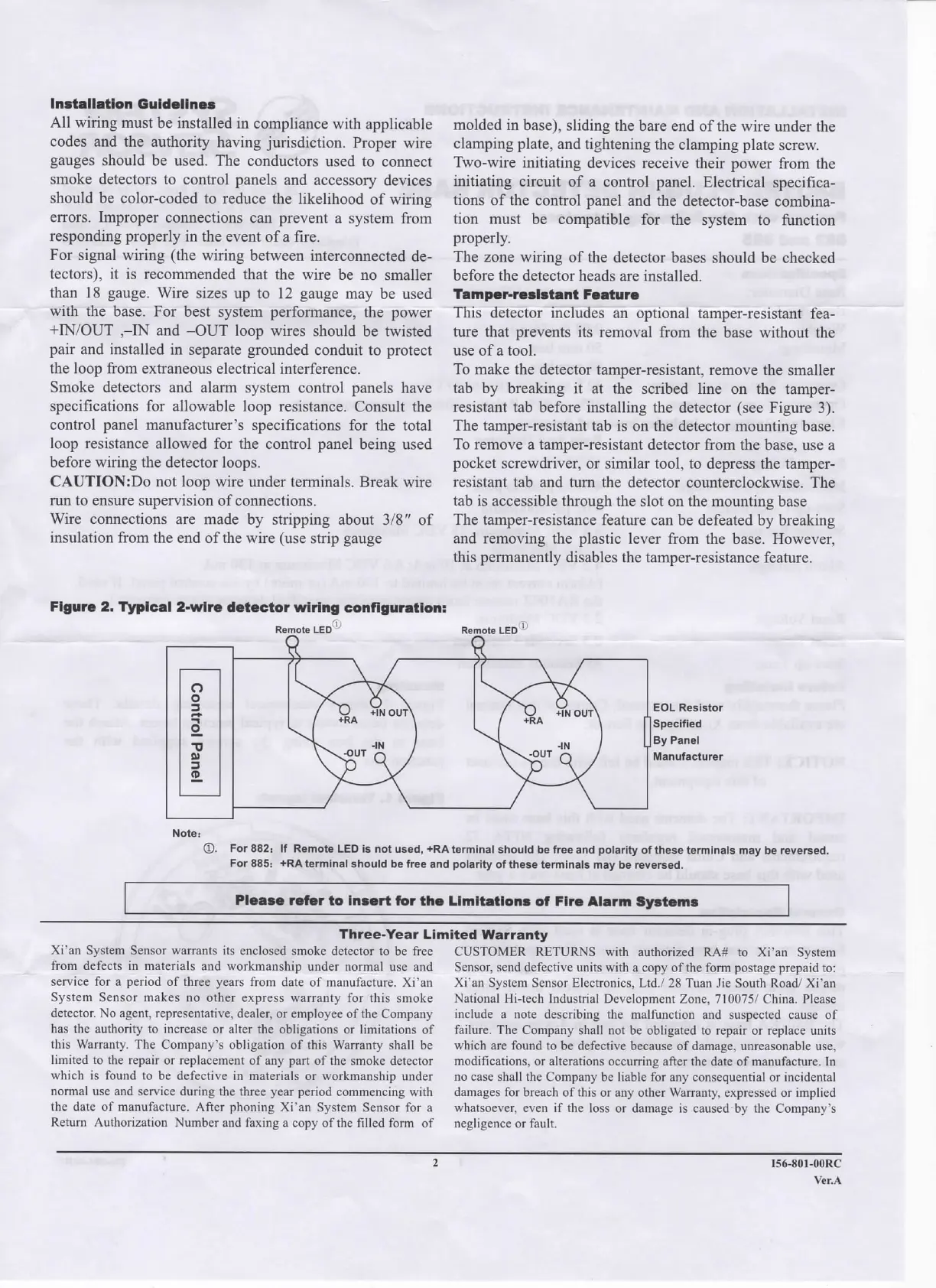

lhstallatl®h Gu]d®llh®s
All wiring must be installed in compliance with applicable
codes and the authority having jurisdiction. Proper wire
gauges should be used. The conductors used to connect
smoke detectors to control panels and accessory devices
should be color-coded to reduce the likelihood of wiring
errors. Improper connections can prevent a system from
responding properly in the event of a fire.
For signal wiring (the wiring between intercomected de-
tectors), it is recommended that the wire be no smaller
than 18 gauge. Wire sizes up to 12 gauge may be used
with the base. For best system performance, the power
+IN/OUT ,-IN and -OUT loop wires should be twisted
pair and installed in separate grounded conduit to protect
the loop from extraneous electrical interference.
Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer's specifications for the total
loop resistance allowed for the control panel being used
before wiring the detector loops.
CAUTION:Do not loop wire under terminals. Break wire
run to ensure supervision of connections.
Wire connections are made by stripping about 3/8" of
insulation from the end of the wire (use strip gauge
molded in base), sliding the bare end of the wire under the
clamping plate, and tightening the clamping plate screw.
Two-wire initiating devices receive their power from the
initiating circuit of a control panel. Electrical specifica-
tions of the control panel and the detector-base combina-
tion must be compatible for the system to function
properly.
The zone wiring of the detector bases should be checked
before the detector heads are installed.
Tamp®rLres[stanl: F®atur®
This -detector include-s---in optional tamper-resistant fea-
ture that prevents its removal from the base without the
use of a tool.
To make the detector tamper-resistant, remove the smaller
tab by breaking it at the scribed line on the tamper-
resistant tab before installing the detector (see Figure 3).
The tamper-resistant tab is on the detector mounting base.
To remove a tamper-resistant detector from the base, use a
pocket screwdriver, or similar tool, to depress the tamper-
resistant tab and turn the detector counterclockwise. The
tab is accessible through the slot on the mounting base
The tamper-resistance feature can be defeated by breaking
and removing the plastic lever from the base. However,
this permanently disables the tamper-resistance feature.
EOL Resistor
Specified
By Panel
Manufacturer
Notei
®. For 882: lf Remote LED is not used, +RAterminal should be free and polarity of these terminals may be reversed.
For 885: +RA terminal should be free and polarity of these terminals may be reversed.
PI®as® refer t® Insert for tlle L[ml(at]ons ®f Fire Alarm Sysl:ems
Three-Year Limited Warranty
Xi'an System Sensor warrants its enclosed smoke detector to be free
from defects in materials and workmanship under normal use and
service for a period of three years from date of manufL-c-ture. Xi'an
System Sensor makes no other express warranty for this smoke
detector. No agent, representative, dealer, or employee of the Company
has the authority to increase or alter the obligations or limitations of
this Warranty. The Company's c)bligation of this Warranty shall be
limited to the repair or replacement of any part of the smoke detector
which is found to be defective in materials or workmanship under
normal use and service during the three year period commencing with
the date of manufacture. After phoning Xi'an System Sensor for a
Return Authorization Number and faxing a copy of the filled form of
CUSTOMER RETURNS with authorized RA# to Xi'an System
Sensor, send defective units with a _copy of the form postage_ prepaid to:
Xi'an System Sensor Electronics, Ltd./ 28 Tuan Jie South Road/ Xi'an
National Hi-tech Industrial Development Zone, 710075/ China. Please
include a note describing the malfunction and suspected cause of
failure. The Company shall not be obligated to repair or replace units
which are found to be defective because of damage, unreasonable use,
modifications, or alterations occumng after the date of manufacture. In
no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused-by the Company's
negligence or fault.
156-80l-00RC
Vcr.A
