External Overview
Ports Overview
The Thelio B1 has several
ports accessible from the rear
of the machine.
4 USB 3.0 Ports
2 HDMI Ports
1 Displayport
1 USB 3.1 Gen 1 Type-C
2 Ethernet (1Gb)
Audio In/Out ports (3.44mm).
1 Standard 3-prong AC wall
adapter port connected to the
power supply (with power
switch).
As well as an additional
expansion port available via
the PCI slot on the board.

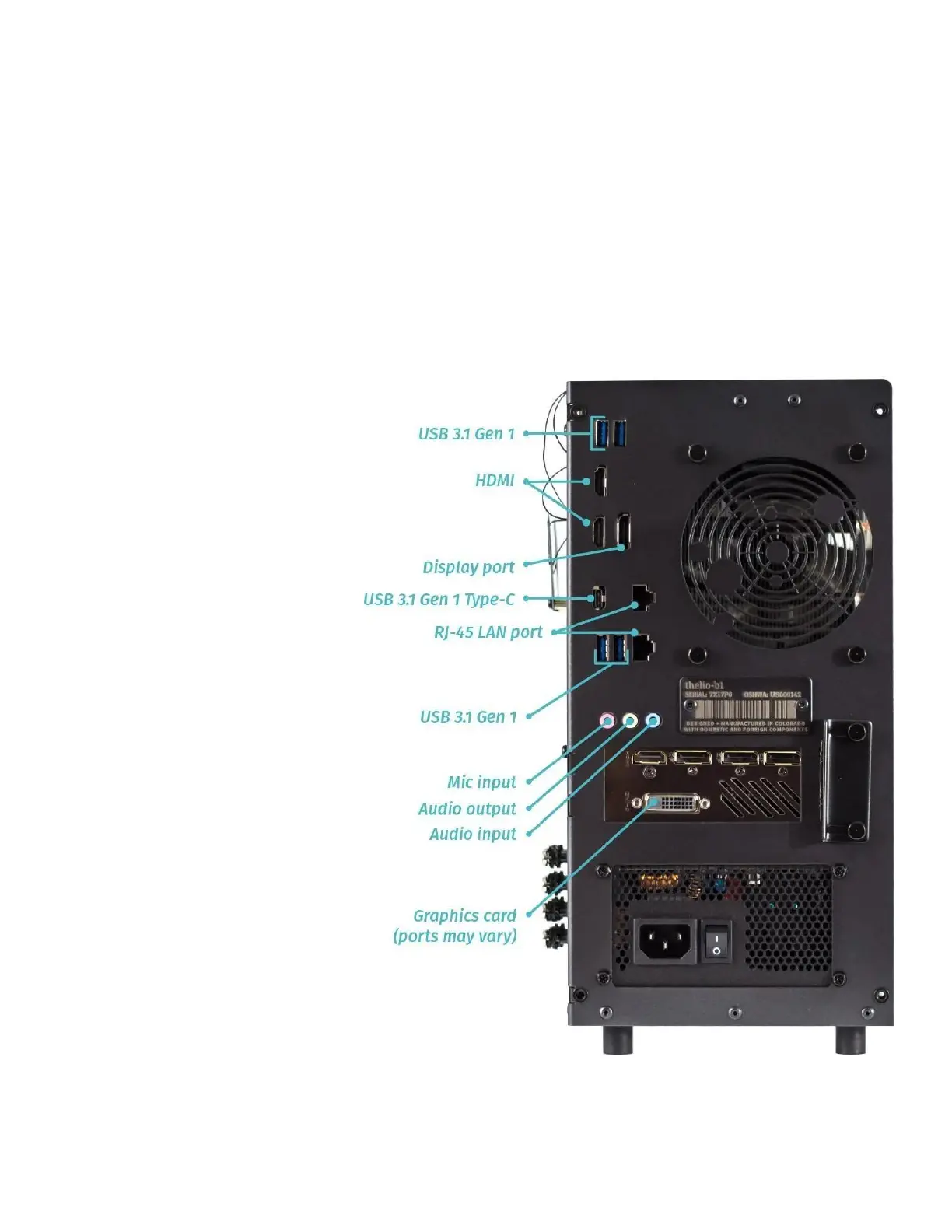

Fig. 8: External Thelio Ports Overview.
System76 Thelio (thelio-b1)
9
