5.1.1 Installation arrangements
NOTE
The following installation arrangements are also possible for the DVN and DVNI series.
2
4
7
8
1b
2
3
5
8
6
7

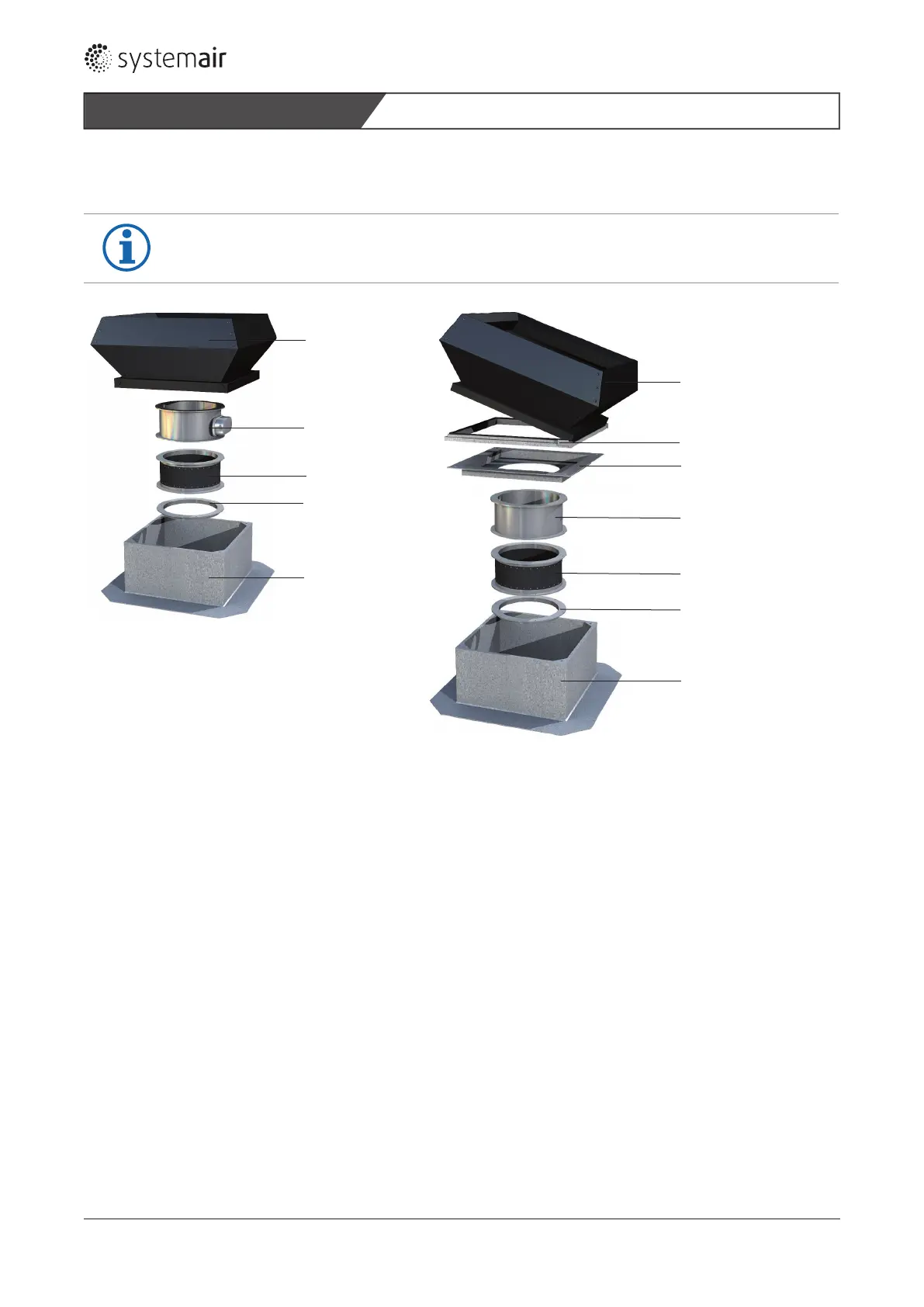

Fig. 26: Examples of the installation arrangement of a fan of the DVS/DVSI series, fi xed or hinged
Legend
1a DVS/DVSI Ventilator fi xed 6 ASS Flexible connection
1b DVS/DVSI Ventilator hinged 7 ASF Intake fl ange
2 FTG Hinged frame 8 FDS Flat roof base
3 TDA Adaptor frame for hinged versions
4 VKM Motor-driven shutter
5 VKS Automatic shutter
