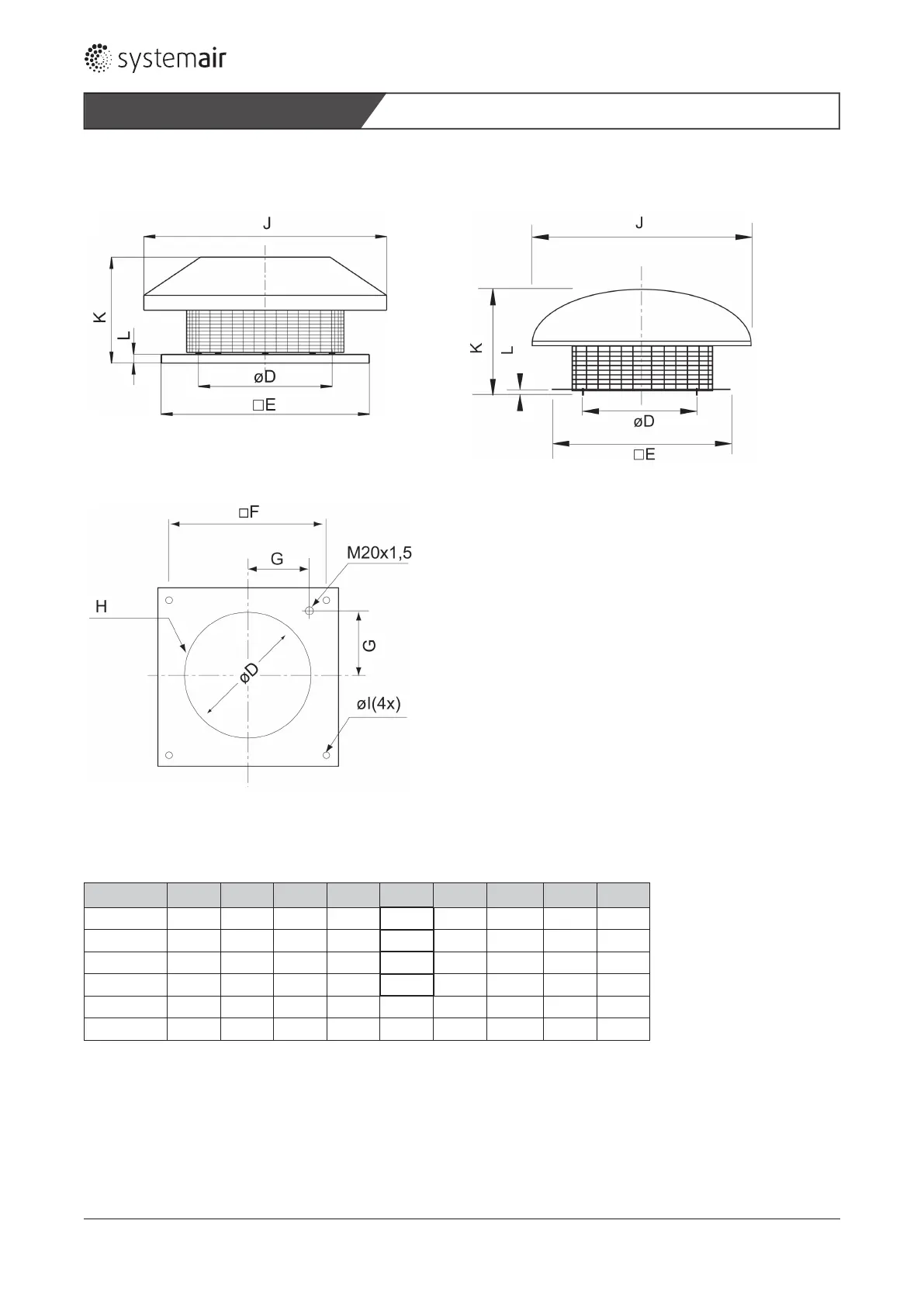

5.1.6 Dimensioned drawing of the DHS fans
Fig. 33: Dimensioned drawing of the DHS fans, squared
Fig. 34: Dimensioned drawing of the DHS fans, round
Fig. 35: Underside DHS
5.1.7 Dimensions DHS
DHS øD E F G H øI J K L
190 - 225 213 335 245 105 6xM6 10 ø417 150 30
310 - 315 285 435 330 146 6xM6 10 ø540 250 30
355 - 400 438 595 450 200 6xM8 12 ø720 330 30
450 - 500 438 665 535 237 6xM8 12 ø830 490 30
560 - 630 605 939 750 293 8xM8 14 1100 535 30
710 647 1035 840 320 8xM8 14 1282 580 40
Table 11: Dimensions of the DHS fans
37
Roof fans - V 1.0
