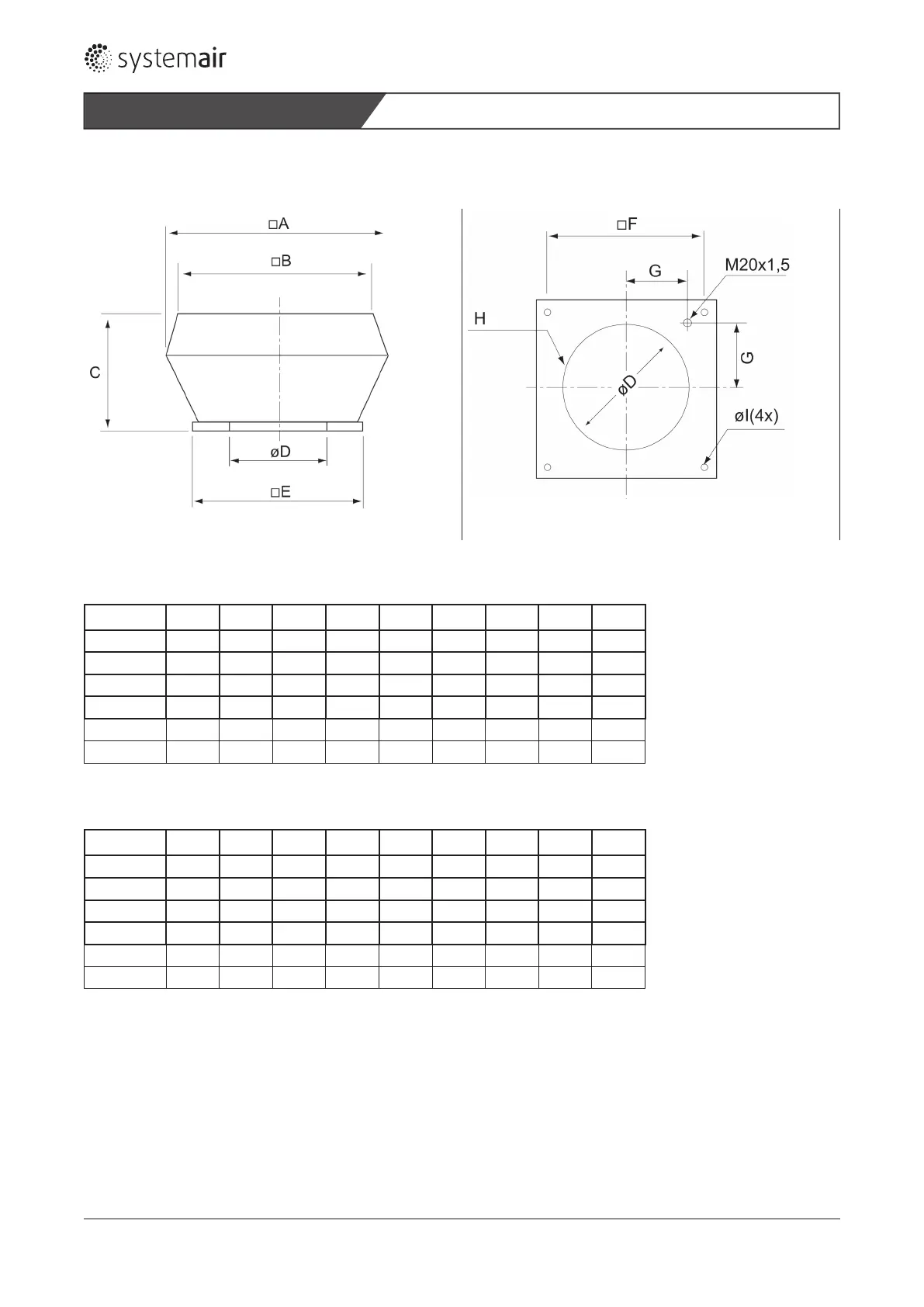

5.1. 3 Dimensioned drawing of the DVS/DVSI fans
Fig. 31: Dimensioned drawing DVS und DVSI Fig. 32: Underside DVS/DVSI
5.1.4 Dimensions DVS
DVS A B C øD E F G H øI
190-225 370 295 170 213 335 245 105 6xM6 10 (4x)
310-311 560 470 330 285 435 330 146 6xM6 10 (4x)
355-400 720 618 390 438 595 450 200 6xM8 12 (4x)
450-500 900 730 465 438 665 535 237 6xM8 12 (4x)
560-630 1150 960 560 605 939 750 293 8xM8 14 (4x)
710 1350 1185 660 647 1035 840 320 8xM8 14 (4x)
Table 9: Dimensions of the DVS fans
5.1.5 Dimensions DVSI
DVSI A B C øD E F G H øI
190-225 497 295 179 213 335 245 105 6xM6 10 (4x)
310-311 690 470 369 285 435 330 146 6xM6 10 (4x)
355-400 874 618 439 438 595 450 200 6xM8 12 (4x)
450-500 968 748 479 438 665 535 237 6xM8 12 (4x)
560-630 1315 960 605 605 939 750 293 8xM8 14 (4x)
710 1483 1185 729 674 1035 840 320 8xM8 14 (4x)
Table 10: Dimensions of the DVSI fans
36
