| Instructions for unloading on the site as well as installation and connection
Assembly is done sucesfully

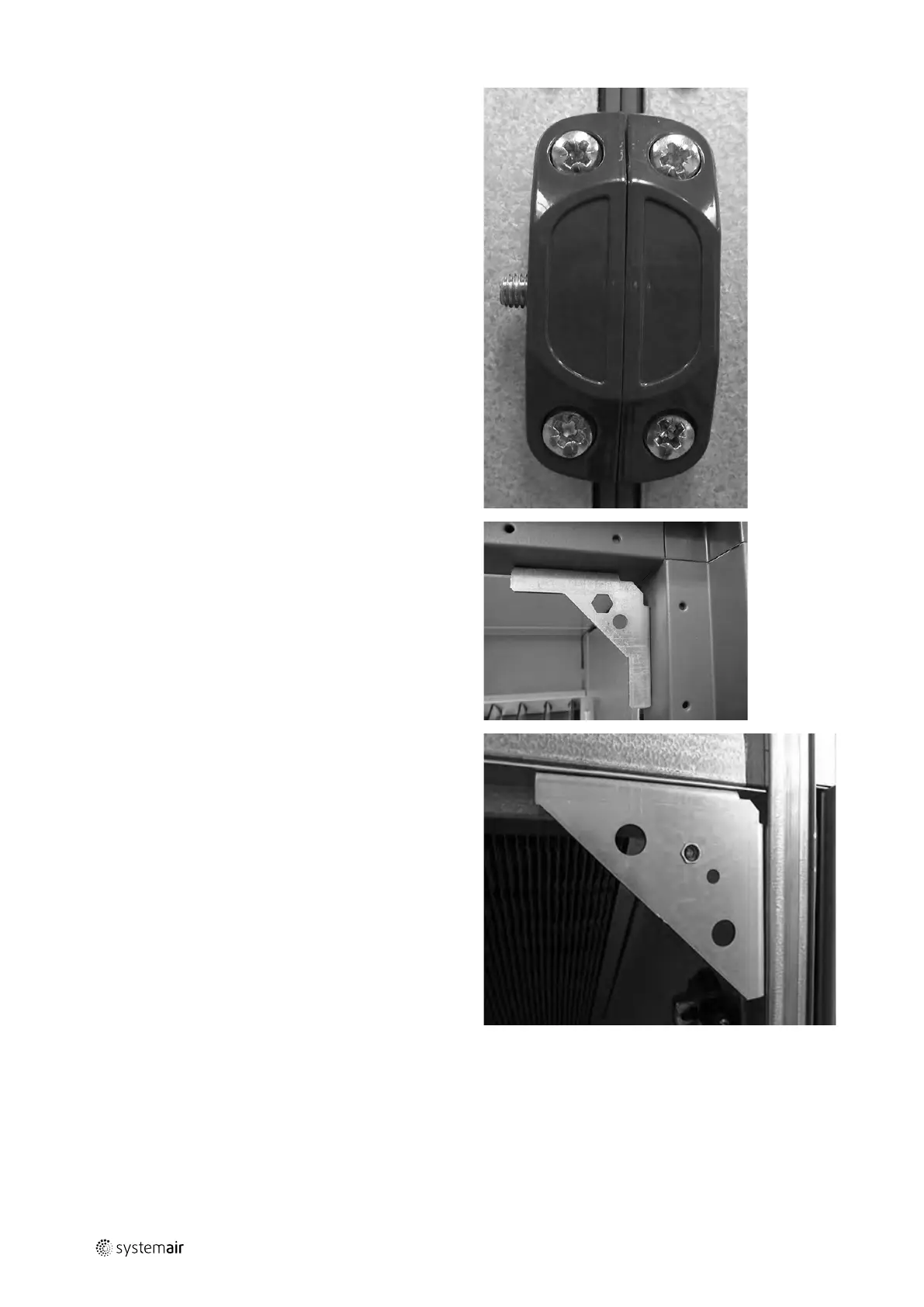

Bracket inside the unit for assembly of Geniox unit sec-
tions in the sizes 16 and 18
Bracket inside the unit for assembly of Geniox unit sec-
tions in the sizes 20 to 31
I.2.9 Fitting the ductwork
Flexible duct connections between AHU and ductwork must always be installed. Be sure that flexible duct connections
are almost fully stretched. (Flexible connections are ordered as accessories and they are placed inside the unit). At the
fan outlet on a centrifugal fan, the duct size should be as close to the outlet size as possible. Avoid blockage and turbu-
lence at the fan outlet.
