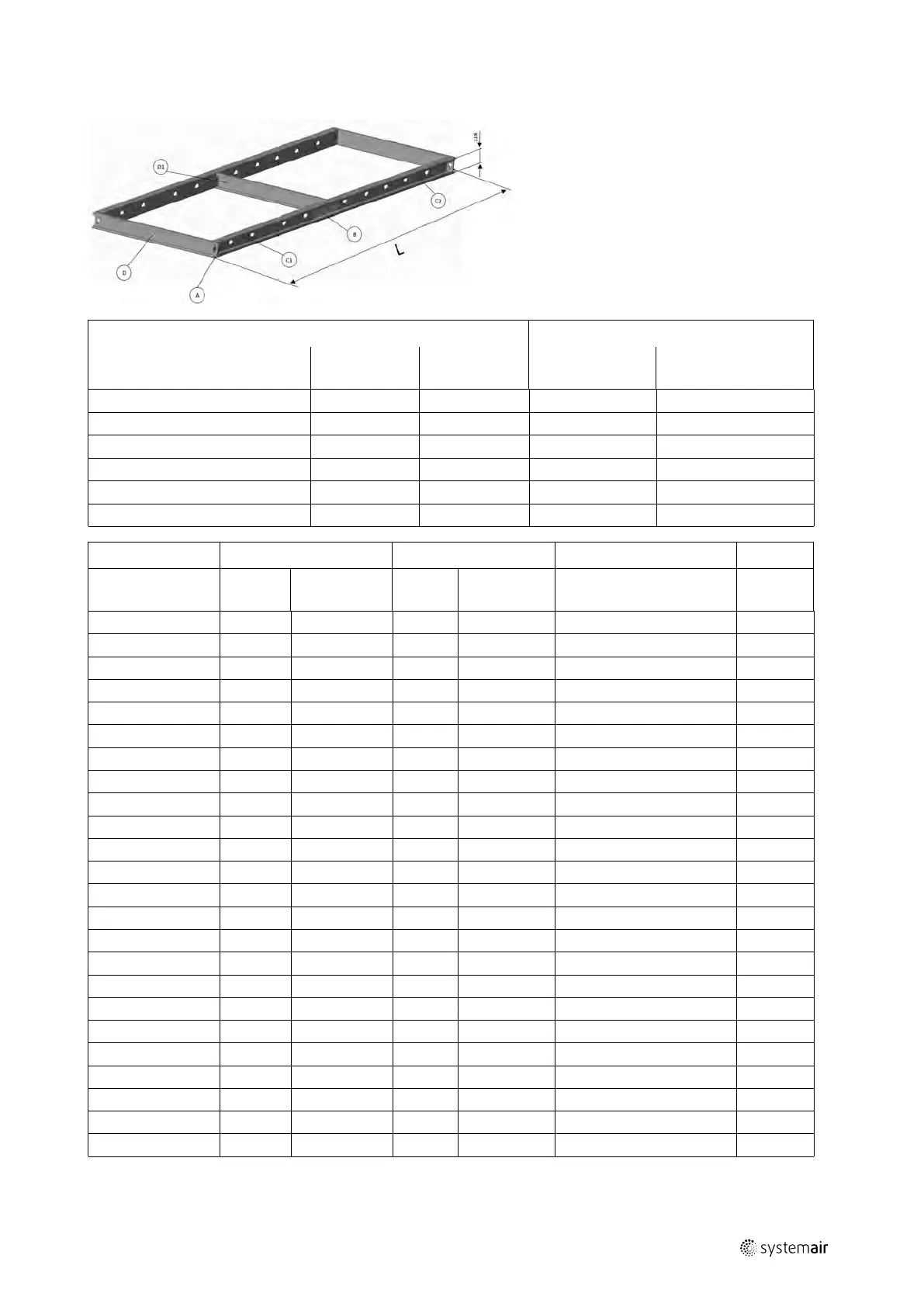

Assembly of base frame height 118 mm for unit sizes 10 18 |
4-3
4.2 Base frame length 2582 4964 [mm] Unit size 10 18
End profile type D (width of base frame)
Middle profile type D1
Unit size Quantity
width of base
frame [mm]
Quantity
Length [mm]
Geniox10 2 1070 1 950
Geniox11 2 1170 1 1050
Geniox12 2 1270 1 1150
Geniox14 2 1470 1 1350
Geniox16 2 1670 1 1550
Geniox18 2 1870 1 1750
Length profile C1 Length profile C2
Corner A
Splice B
Adjustable length
of frame L [mm]
Quantity
Length [mm]
Quanti-
ty
Length [mm]
Quantity Quantity
2582-2664 2 1200 2 1300 4 2
2682-2764 2 1300 2 1300 4 2
2782-2864 2 1300 2 1400 4 2
2882-2964 2 1400 2 1400 4 2
2982-3064 2 1400 2 1500 4 2
3082-3164 2 1500 2 1500 4 2
3182-3264 2 1500 2 1600 4 2
3282-3364 2 1600 2 1600 4 2
3382-3464 2 1600 2 1700 4 2
3482-3564 2 1700 2 1700 4 2
3582-3664 2 1700 2 1800 4 2
3682-3764 2 1800 2 1800 4 2
3782-3864 2 1800 2 1900 4 2
3882-3964 2 1900 2 1900 4 2
3982-4064 2 1900 2 2000 4 2
4082-4164 2 2000 2 2000 4 2
4182-4264 2 2000 2 2100 4 2
4282-4364 2 2100 2 2100 4 2
4382-4464 2 2100 2 2200 4 2
4482-4564 2 2200 2 2200 4 2
4582-4664 2 2200 2 2300 4 2
4682-4764 2 2300 2 2300 4 2
4782-4864 2 2300 2 2400 4 2
4882-4964 2 2100 2 2100 4 2
output |
