SystemAir RS Series User Manual

E
K
L
M
N
O
P
D
A
IHCB
F G
J

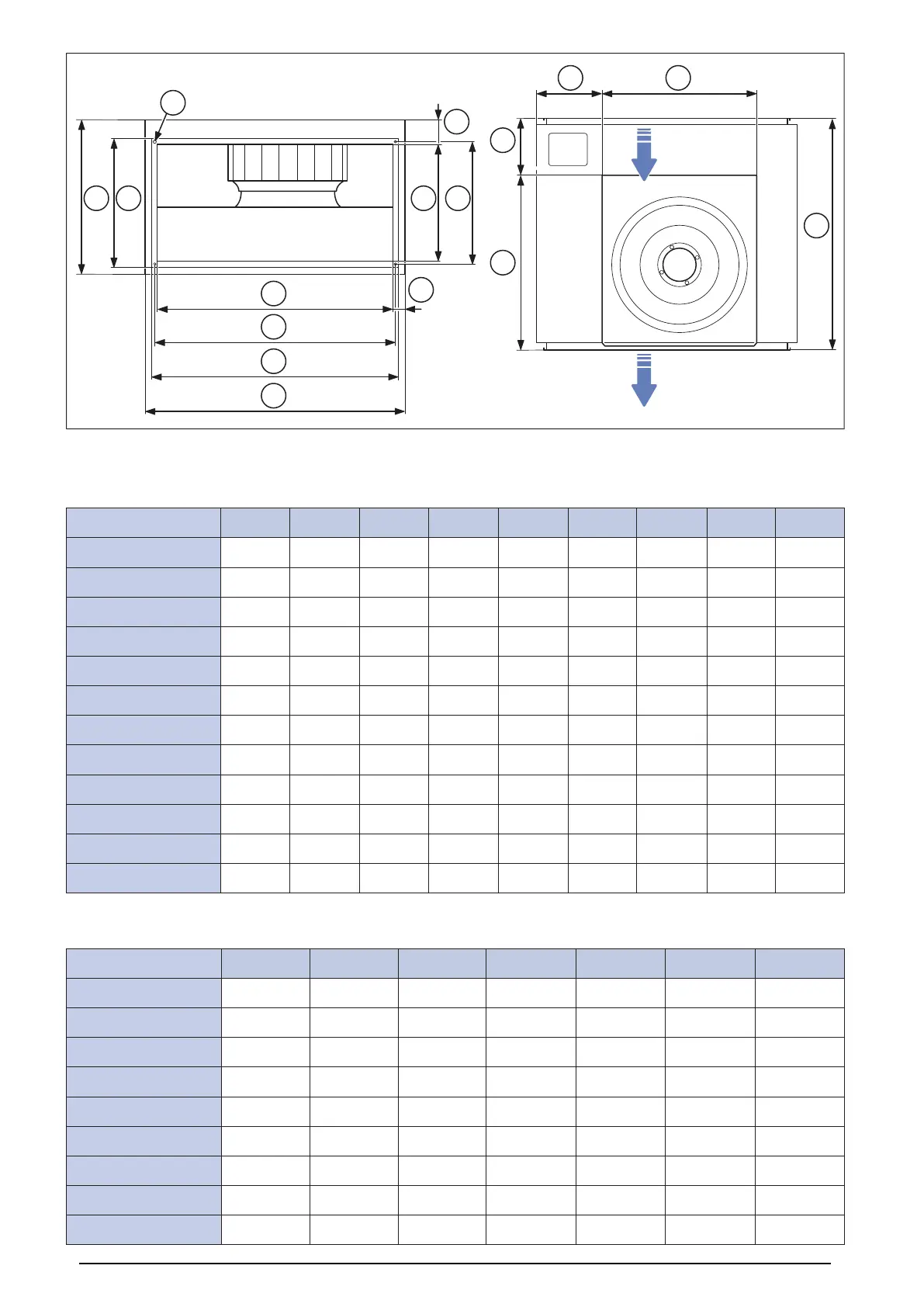

The dimensions are split over 2 separate tables. See Table 4 for measures J-P
Table 3
ØA B C D E F G H c-c I
RSI 60–35 M1 10 492 391 92.5 99.5 139.5 532 347.5 370
RSI 60–35 M3 10 508 391 108 100 140 532 348 370
RSI 60–35 L1 10 508 391 108 100 140 532 348 370
RSI 60–35 L3 10 492 391 92.5 99.5 139.5 532 347.5 370
RSI 70–40 L1–L3 10 564 441 114 170 202 532 397 420
RSI 80–50 M3 10 683 541 133 144 195 656 497 520
RSI 80–50 L3 10 662 541 112.5 144.5 194 656 497 520
RSI 100–50 L3 10 683 541 133 215 302 678 498 520
RSI 60–35 EC sileo 10 508 391 108 100 140 532 348 370
RSI 70–40 EC sileo 10 564 441 114 170 202 532 397 420
RSI 80–50 EC sileo 10 683 541 133 144 882 656 497 520
RSI 100–50 EC sileo 10 683 541 133 215 982 678 498 520
Table 4
J K L M c-c N O P
RSI 60–35 M1 717 597 55 598 620 640.5 708
RSI 60–35 M3 717 597 55 598 620 641 705
RSI 60–35 L1 717 597 55 598 620 641 705
RSI 60–35 L3 717 597 55 598 620 640.5 708
RSI 70–40 L1–L3 787 596 55.5 697 720 741 808
RSI 80–50 M3 882 716 55.5 797 820 841 908
RSI 80–50 L3 882 717 55.5 797 820 841 908
RSI 100–50 L3 982 746 55.5 998 1020 1041 1108
RSI 60–35 EC sileo 717 597 55 598 620 641 705
17
