Technical Data |
3
3.1 Dimensions and Weight

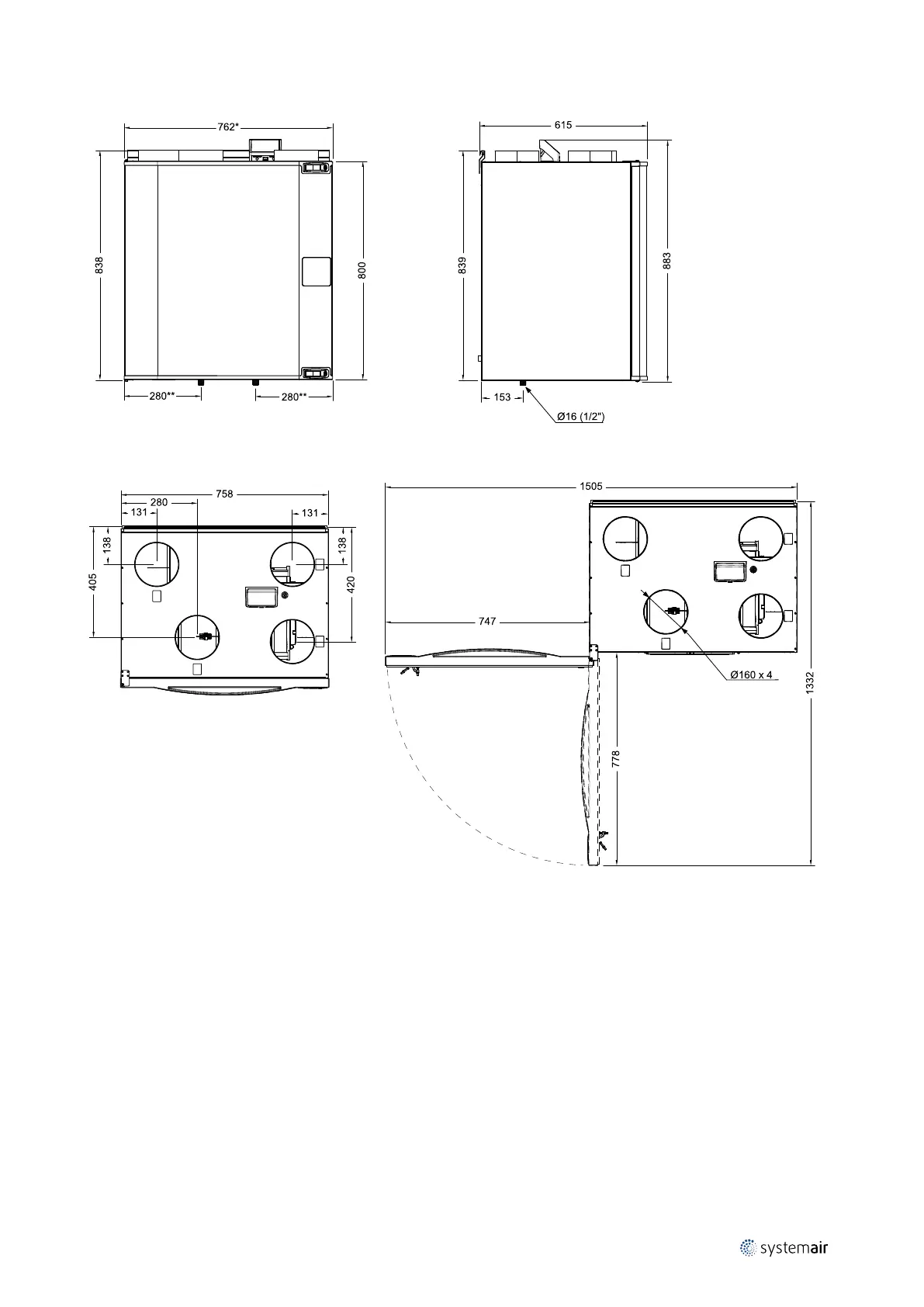

Fig. 2 Dimensions of right hand unit
* Inspection hatch.
** Drainage.
The unit weight is 72 kg.
333569 | v1.1
