GB Maintenance
|
17

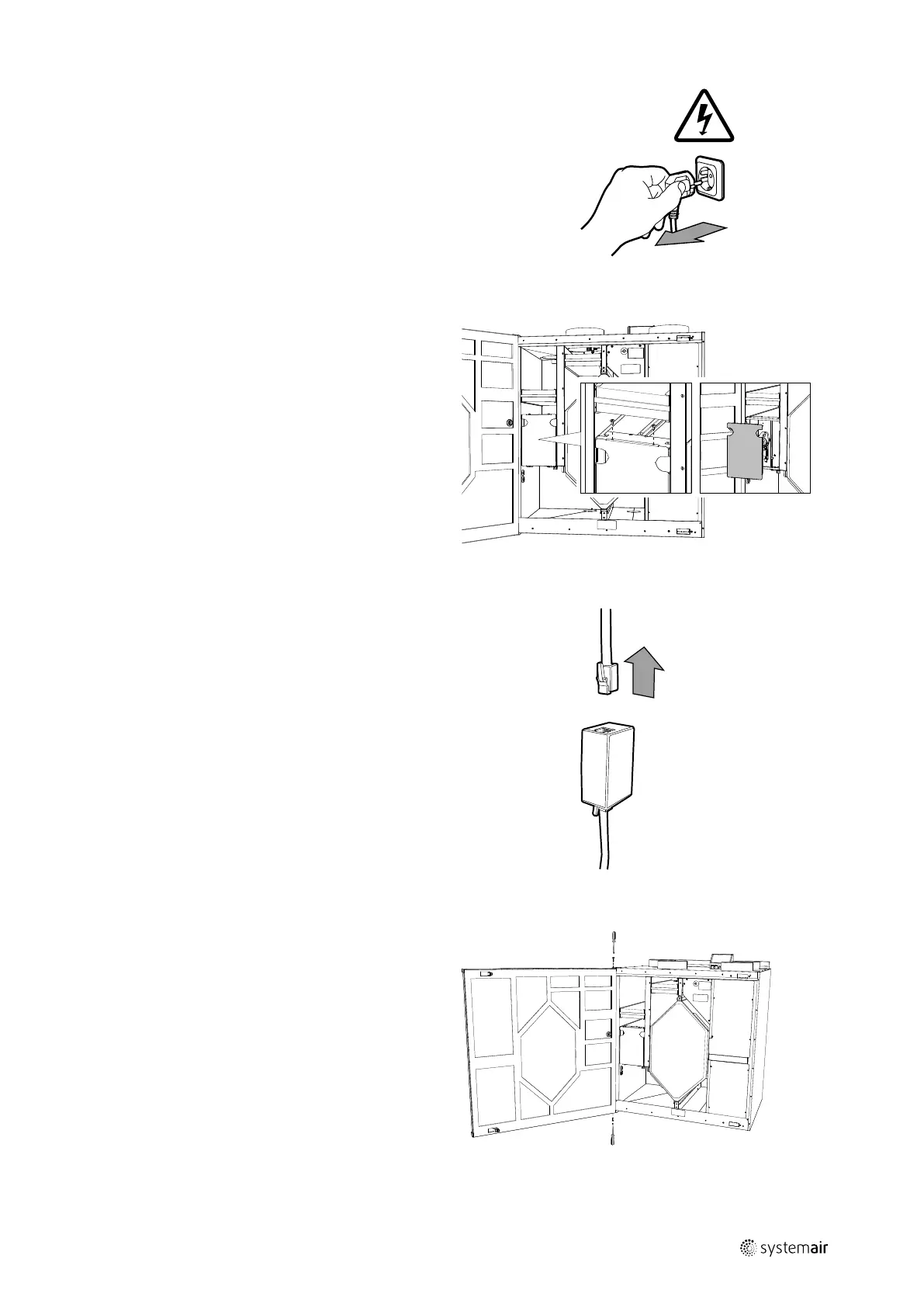

1 Disconnect the unit from the mains by pulling out the wall plug.
2 Remove the cover plate of the bypass damper motor.
3 Disconnect the modular plug from the modular jack situated behind the
bypass damper cover plate.
4 Unscrew the door from the hinges.
211465 | A003
