Configuration |
7

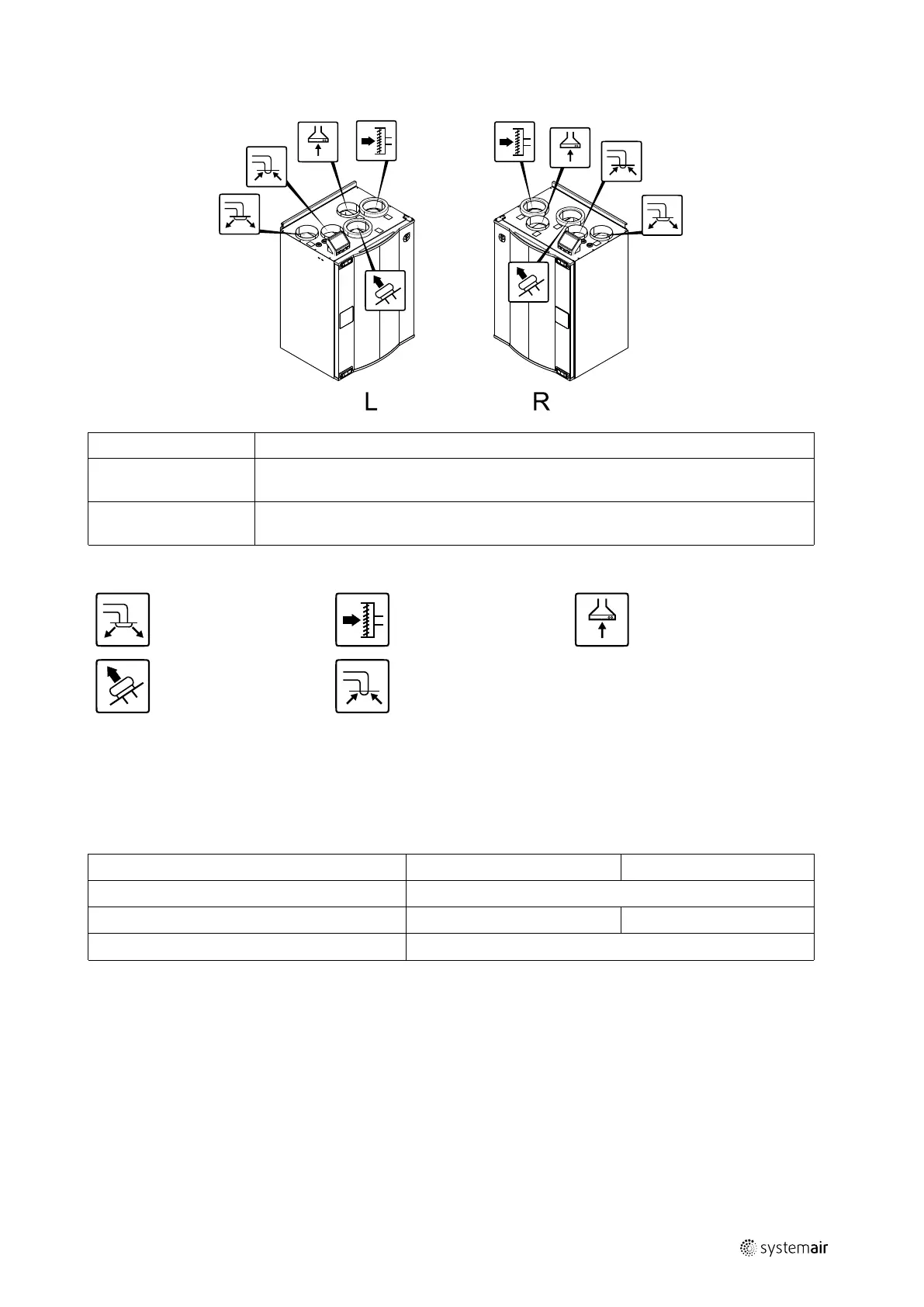

4.3 Connections Left and Right models
Position Description
R
Right hand model (Supply air connection is situated on the right hand side of the unit
viewed from the front)
L
Left hand model (Supply air connection panel is situated on the left hand side of the unit
viewed from the front)
Symbol
Description
Symbol
Description
Symbol
Description
Supply air
Outdoor air Cooker hood air
Exhaust air
Extract air
4.4 Power consumption and fuse size
SAVE VTR 250/B come with 500 W or 1000 W installed re-heater battery.
Table 1 Electrical data
Re-heater (W)
500 W 1000 W
Fans (W)
172 W
Total power consumption (W)
672 W 1172 W
Fuse (A)
10 A
5 Configuration
5.1 General
SAVE VTR 250/B has a modern touchscreen LCD control panel, simply known as HMI — Human Machine Interface. The
touchscreen display provides information about current state of the unit and allows you to control all system functions.
Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too
hard.
5.2 Startup wizard
During the first power up of the unit, you will be asked to set:
| Rev01
