SystemAir SysAqua 25 User Manual

English
6 SysAqua
SEE APPENDIX
5. CONTENTS OF PACKAGE
On opening the carton, check that all the accessories required for installation are present.
5.1. OPTIONALS ACCESSORIES
Anti-vibration rubber pads
Spring pads
Isolating valve
1 SysAqua
1 Water lter
1 Bag with the documentation

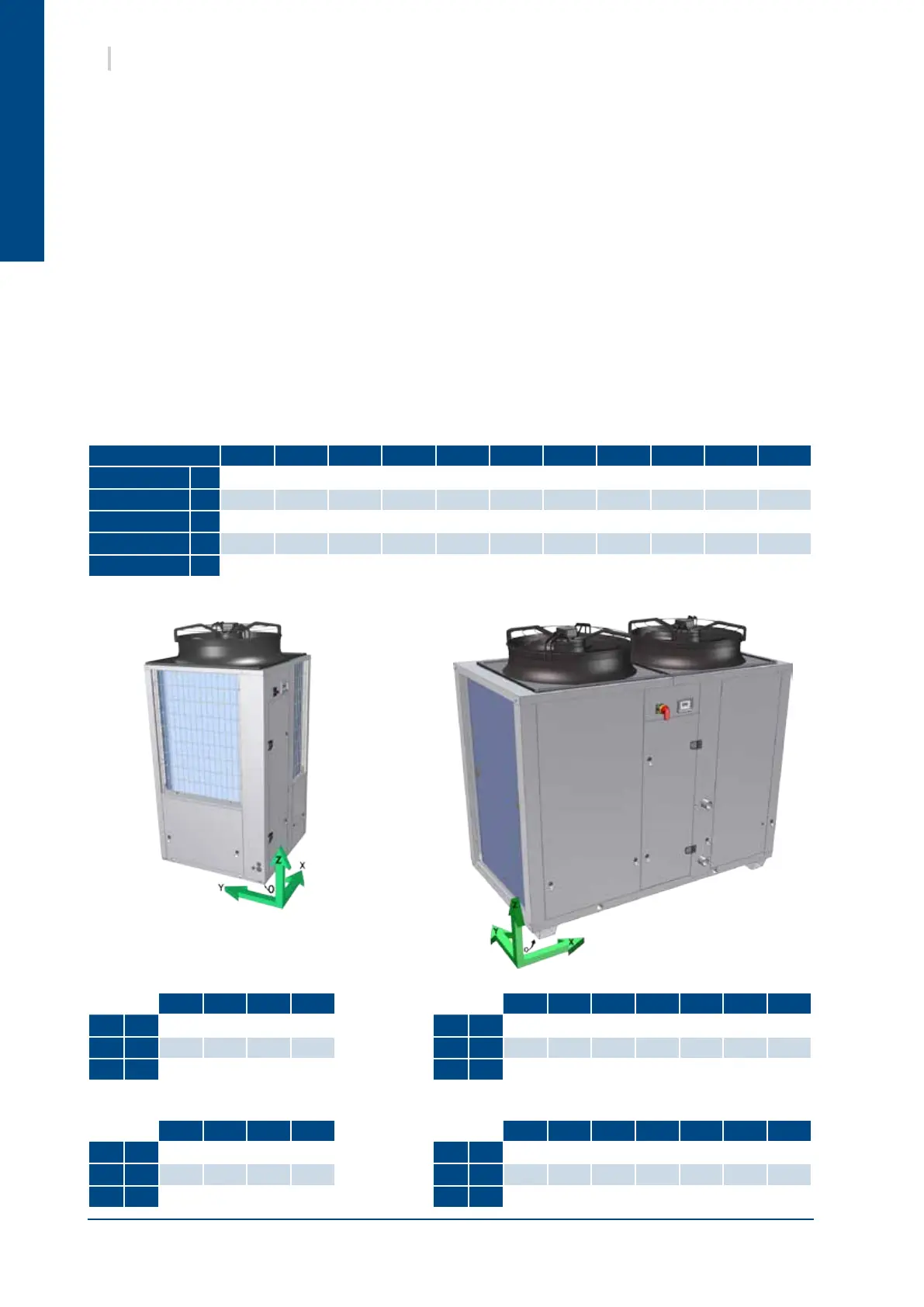

6. DIMENSIONS
7. HANDLING
7.1. NET WEIGHT
7.2. GRAVITY CENTER POSITION
7.2.1. WITHOUT BUFFER TANK
7.2.2. WITH BUFFER TANK
25 30 35 40 45 55 65 75 90 105 125
Without pump kg
270 300 310 310 510 510 580 580 760 870 890
1 pump kg
20 20 20 20 30 30 30 30 30 30 30
2 pumps kg
/ / / / 60 60 60 60 60 60 60
XLN kg
/ / / / 40 40 40 40 40 40 40
Buffer tank Kg
65 65 65 65 160 160 160 160 160 160 160
25 30 35 40
X
G
mm
470 470 470 470
Y
G
mm
460 460 460 460
Z
G
mm
850 850 850 850
45 55 65 75 90 105 125
X
G
mm
940 940 1 000 1 000 1 000 1 000 1 000
Y
G
mm
480 480 540 540 500 500 500
Z
G
mm
700 700 700 700 850 850 850
25 30 35 40
X
G
mm
480 480 480 480
Y
G
mm
580 580 580 580
Z
G
mm
740 740 740 740
45 55 65 75 90 105 125
X
G
mm
1 250 1 250 1 270 1 270 1 100 1 100 1 100
Y
G
mm
480 480 500 500 450 450 450
Z
G
mm
700 700 700 700 850 850 850
