Topvex FR800, FR1600, FR3800
Operation and Maintenance Instructions
Systemair Inc.
2
Position Description Symbols
A Connection outdoor air.
B Connection supply air.
C Connection extract air.
D Connection exhaust air.
1 Fan supply air.
2 Fan extract air
3 Filter extract air.
4 Filter outdoor air.
5 Heat exchanger.
6 Rotor motor.
7 Rotor belt.
8 Re-heater electric or hydronic.
9 Pre-heater electric (mounted outside the unit) or hydronic
10 Pressure transmitter for fan & Filter guard.
11 Rotation guard for heat exchanger.
12 Electrical connection box.
13 Mounting brackets.
Table 1: Components descriptions EL and HW units
2 Product Description

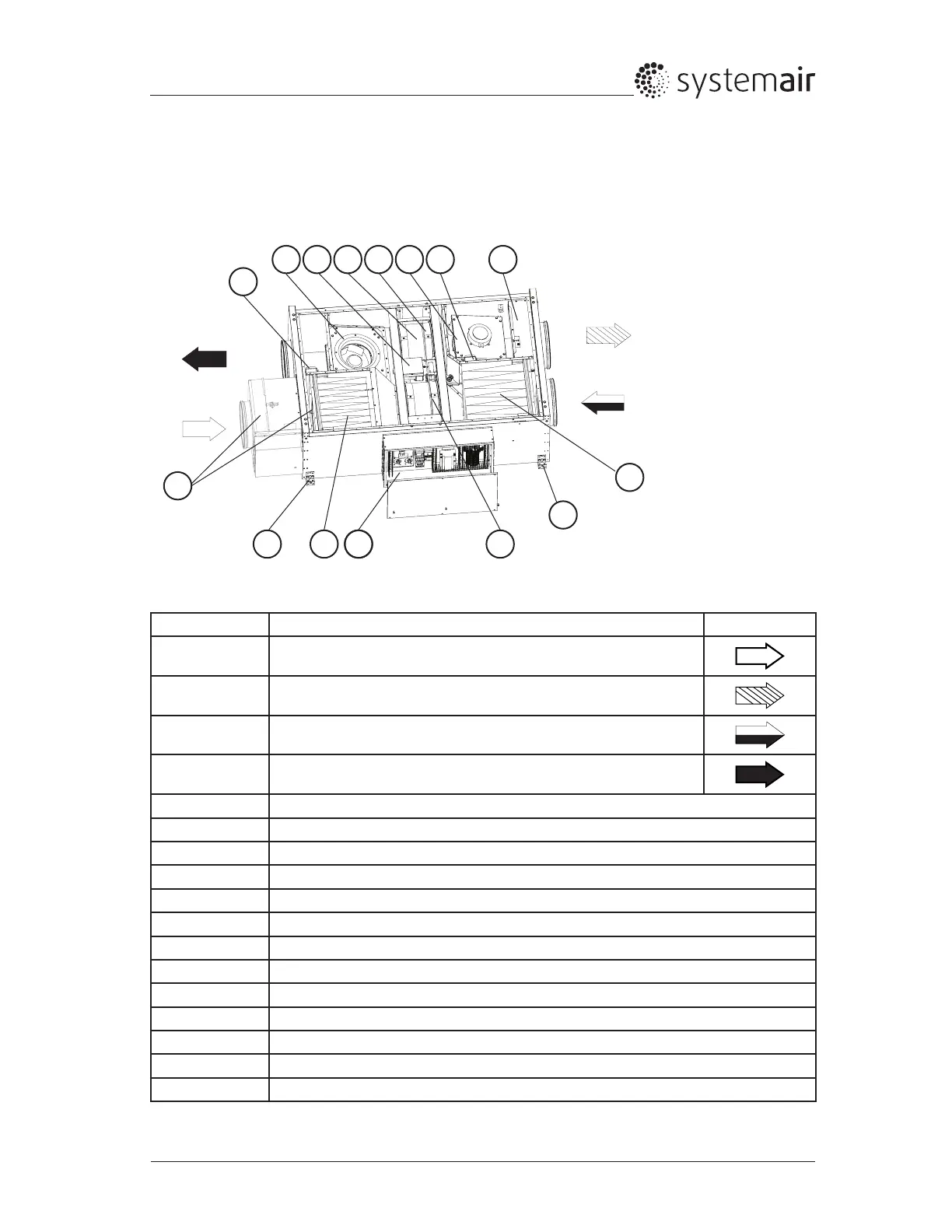

Fig. 1 Topvex FR components
2.1 Internal Components Topvex FR800-3800
5 7 16
3
13
13
9
82 10
124 11
A
B
C
D
10
