3 Interface Description
3.1 Control Panel
The SCP control panel is delivered with a 32 ft. (10 m) cable that is connected to the panel and with a fast
coupling contact, connected to the Topvex unit. The contact is connected to the Corrigo™ controller in the
electricalconnectionbox(pos.1,gure3).Thecablecanbeunscrewedinthebackofthecontrolpanel
(gure4).
3.1.1 Operating the control panel

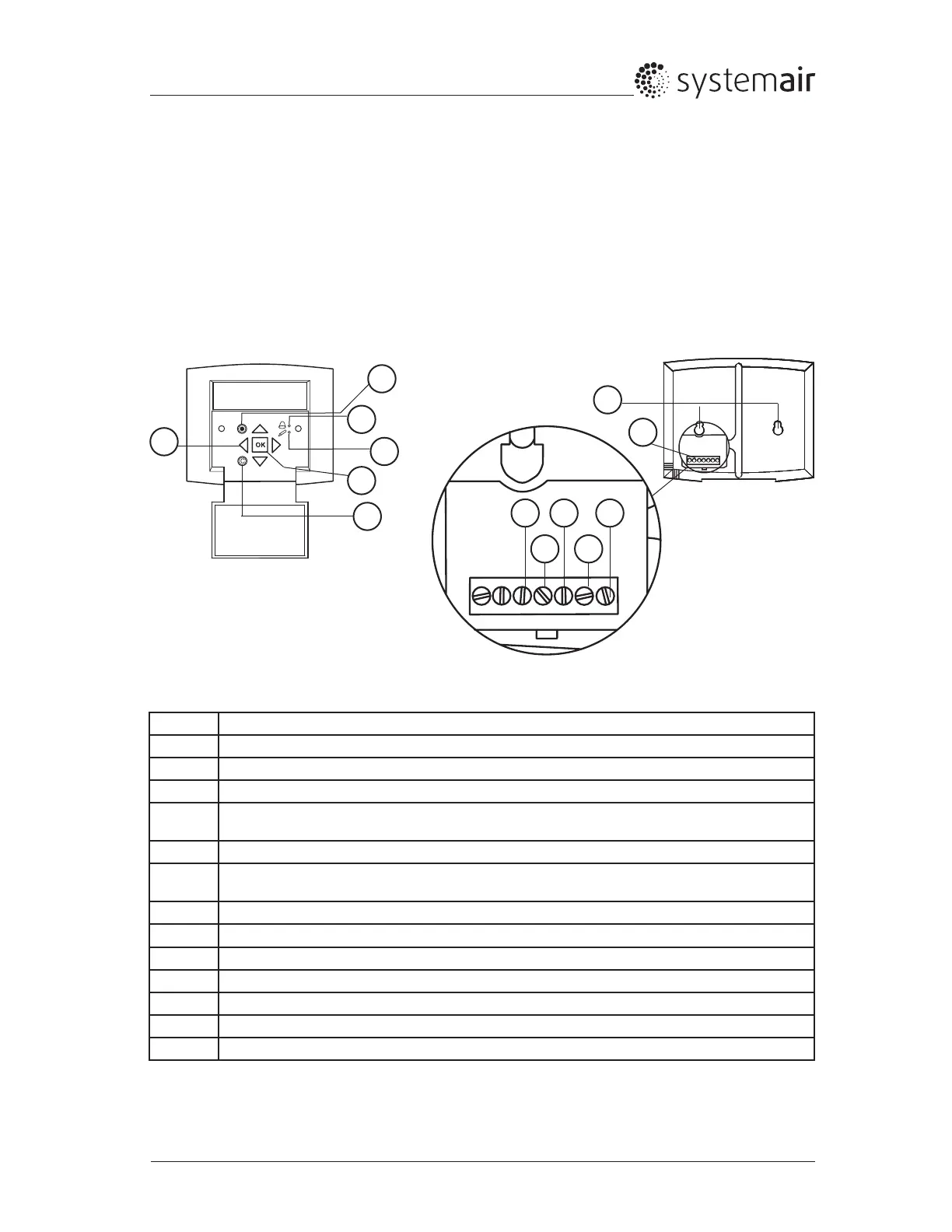

Fig. 4 The control panel
Position Explanation
1 Alarm button: Gives access to the alarm list.
2 AlarmLED:Indicatesalarmbyashingredlight.
3 WriteLED:Indicatesbyashingyellowlightthatparameterscanbesetorchanged.
4 OK button: Press this button to be able to change or set parameters whenever possible. Also
used to move between chargeable parameters in one dialogue window frame.
5 Cancel button: Used to abort a change and return to the initial setting.
6 Right/Left & Up/Down buttons: Used to move up, down, left & right in the menu tree. Up/Down
buttons are also used to increase values when setting or changing parameters.
7 Mounting holes
8 Connection block.
9 Connection to yellow cable.
10 Connection to orange cable.
11 Connection to red cable.
12 Connection to brown cable.
13 Connection to black cable
3.1.1.1 Navigating the menus
Thestartdisplay(thedisplaynormallyshown)isattherootofthemenutree.PressingDOWNwillmove
you through the menu options. UP will move you back through the options. To enter a higher menu level,
Table 3: Description of Control panel and wire connection
10 12
11 13
8
7
9
4
3
1
2
6
5
