Installation |
11
9.2 Disassembly size SC 60-70, TC 60-70
Disassemble the middle section for transport through smaller openings (min 900 mm).
Heaviest part is the heat exchanger: 48 kg x 2.
Table 2 Tools required
Allen key, 8 mm (5/16"), torx 20, screwdriver, drive pin punch
Warning
More than one person is needed to disassembly safely. Stand on stable ground when disassembly.

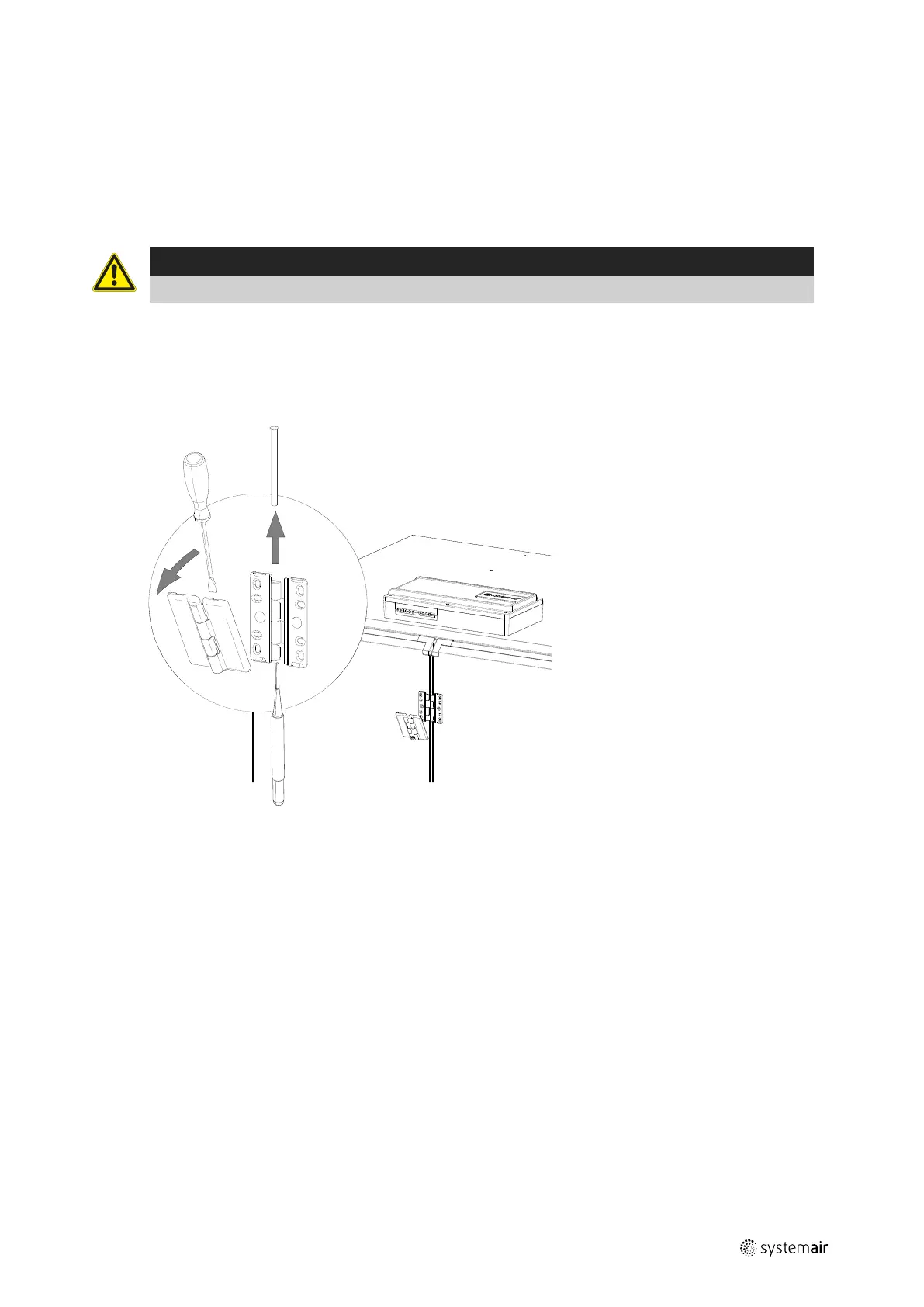

Remove the doors
1. Remove the cover over the hinges with a screwdriver.
2. Remove the hinge pins
3. Remove the doors on front and back side.
214958 | A002
