SystemAir Topvex SC Installation Instructions

Electrical connections |
25
10.2 Connect power supply to electric heating coil

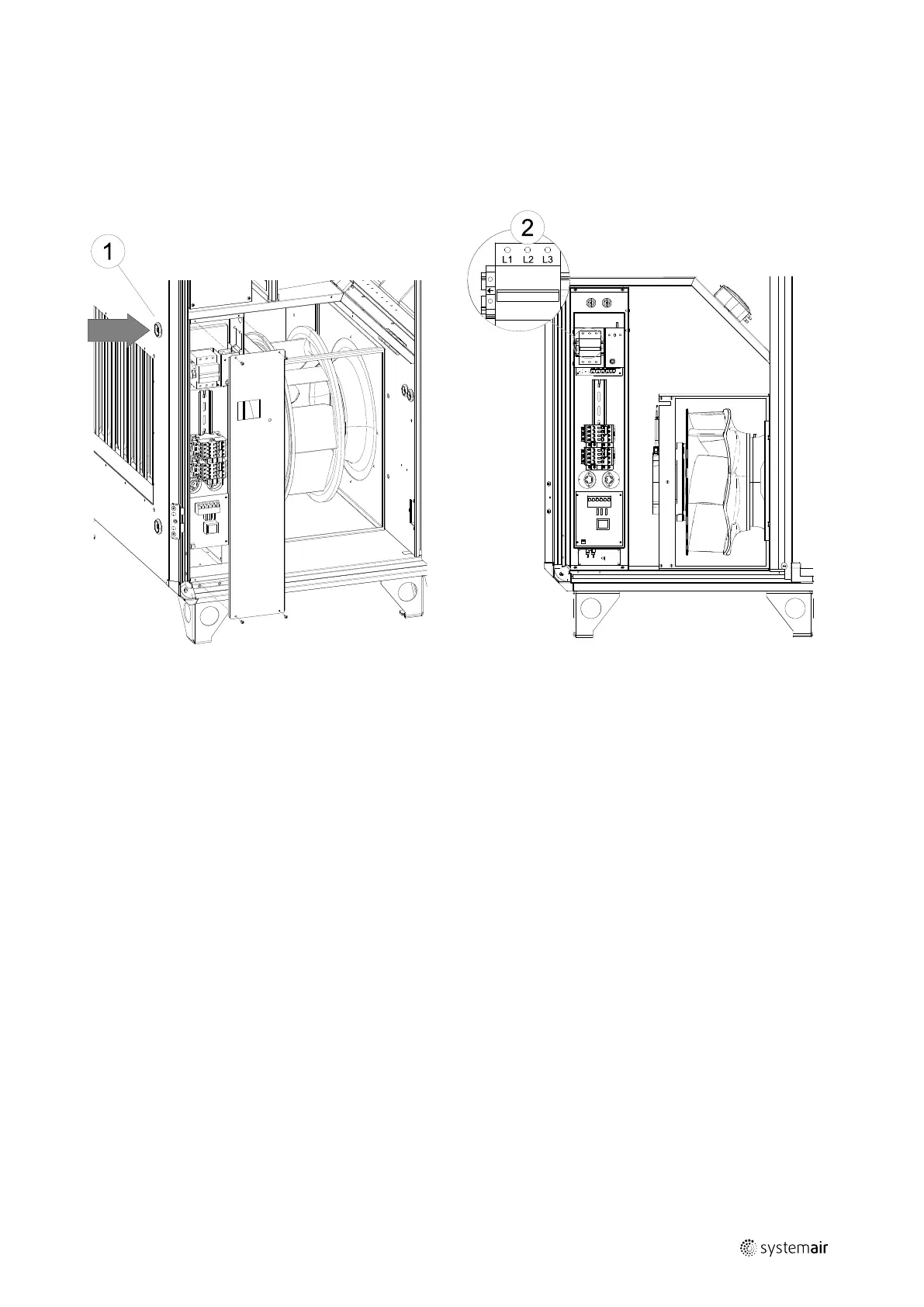

Open the hatch to the electric heating coil by loosening the four screws. Lead the cable through the cable grommet (1)
and connect the mains power supply to the terminals for the electric heating coil (2), figure 11.
Possible to reset fuse and overheat protection for the electric heating coil without opening the hatch to the
compartment.
Fig. 11
214958 | A002
