SystemAir VH15 User Manual

English
Avoid contact with the coil surfaces and their sharp edges as they can be dangerous.
Caution
The unit is not designed to withstand weights or stresses from adjacent equipment, pipe work or
constructions. Any foreign weight or stress on the unit structure could lead to a malfunction or a
collapse with dangerous consequences for personnel and property. In such an event, the warranty
shall be null and void.
Caution
A
C
B
6 VH
5. HANDLING
Always take great care when handling the unit.Do not lift the unit by its condensate outlet, by the water
connectors or by the duct unions (rectangular, circular or oblong). Use a fork lift truck to make it easier to
install the unit.
Unit size
A
(mm)
B
(mm)
C
(mm)
VH07
1000 300 200
VH15
1000 430 200
VH18
1000 430 200
VH21
1000 430 200
VH24
1000 500 200
VH27
1000 500 200
5.1. NET WEIGHT
6. INSTALLATION
Unit size Weight Circular / circular version
(including new air ow
plenum)
Rectangular / rectangular
version
Rectangular / rectangular
version + new air ow
plenum
VH07 kg
48 42 /
VH15 kg
/ 63 69
VH18 kg
/ 65 71
VH21 kg
/ 67 73
VH24 kg
/ 76 84
VH27 kg
/ 80 88
Weight in functioning order, without valve

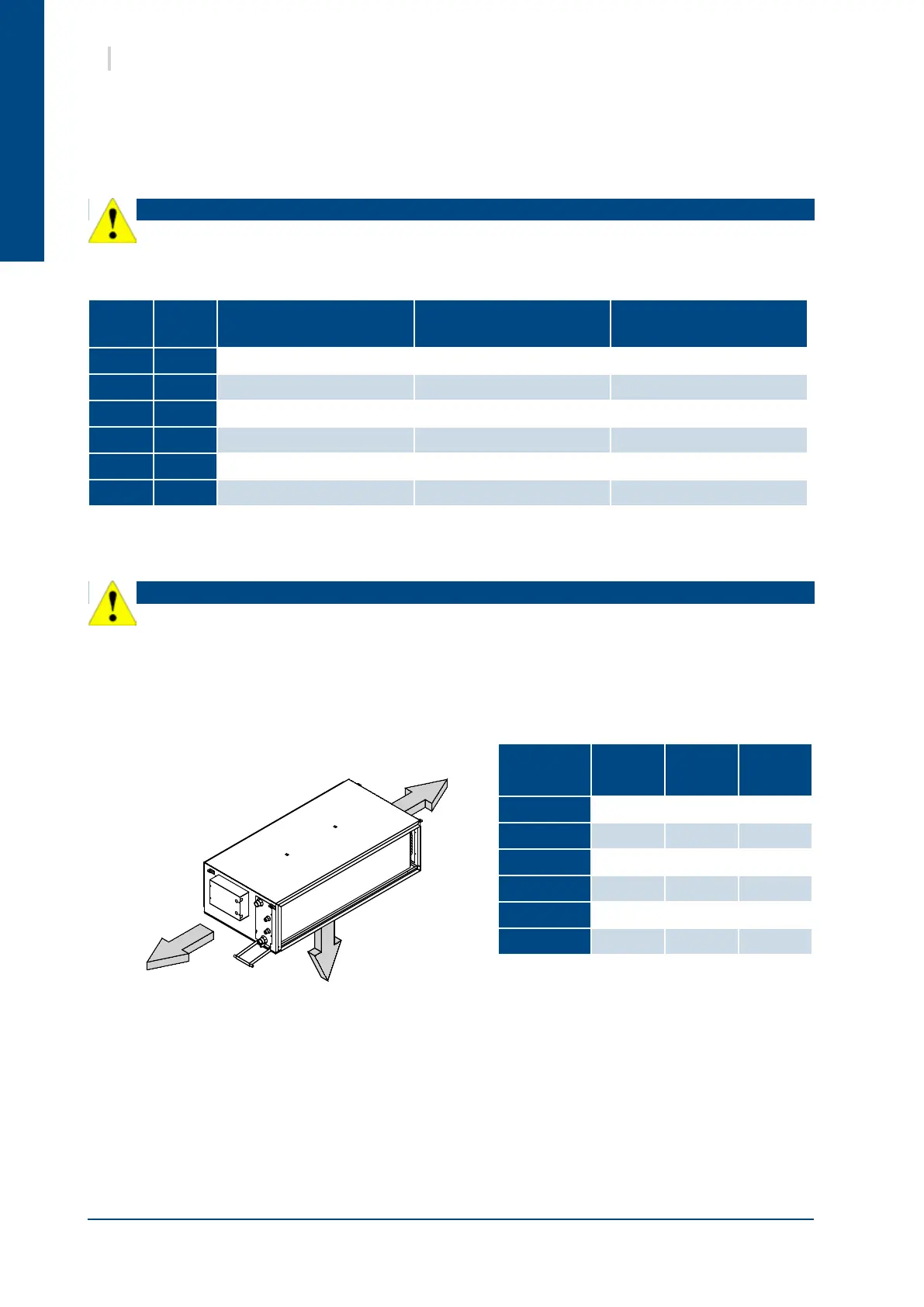

6.1. CLEARANCE
Minimum free clearance for maintenance
A : Clearance for access to the electrical control box.
Clearance for access to the hydraulic connections.
B : Clearance for removing the lter and access to the fan motor assembly.
C : Clearance for access side opposed to the electrical control box and the hydraulic connections.
