TA Instruments TMA Q400 - Position Rear Supports; Install Shoulder Bolts; Install Outer Clamp

Page 3 of 6

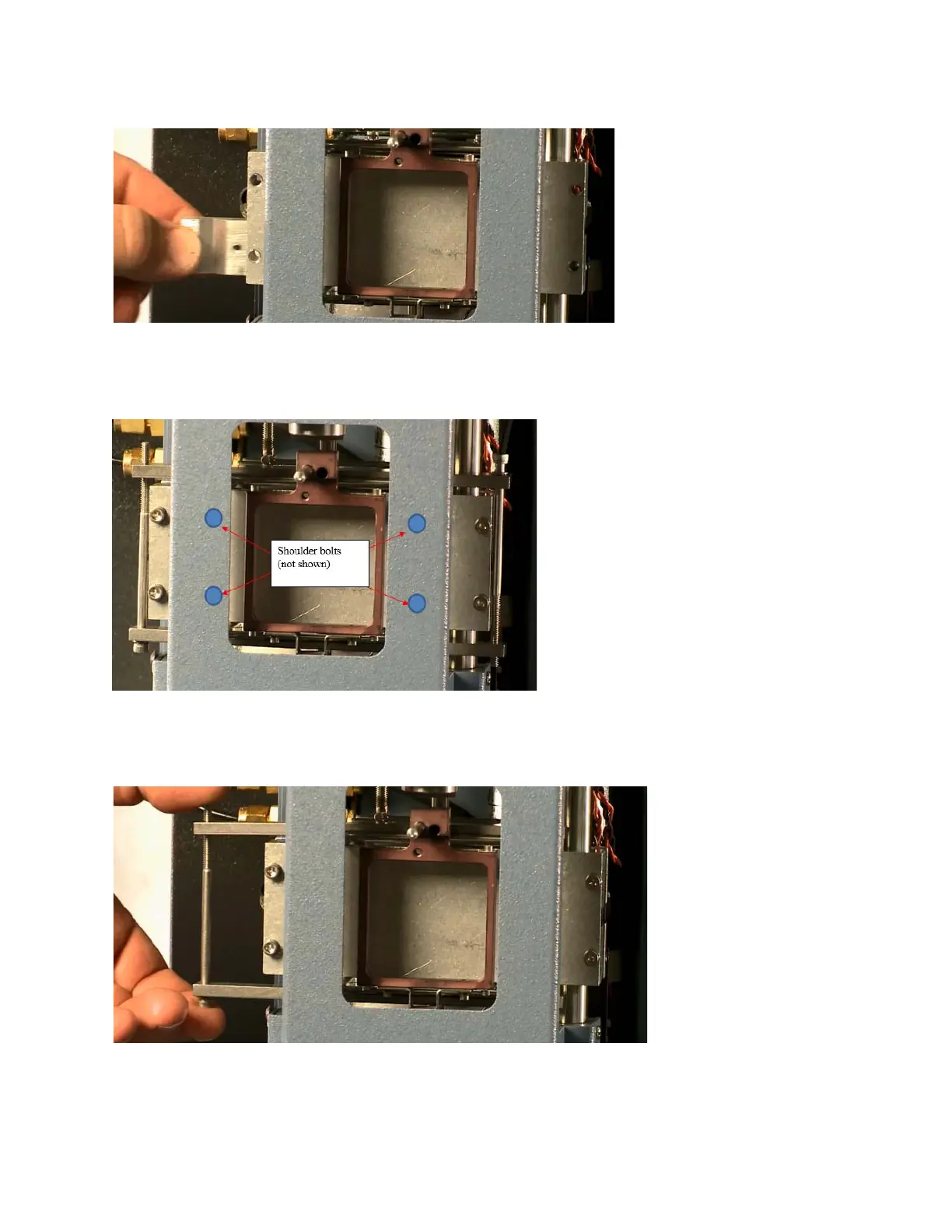

6 Carefully slide the rear supports between the upper and lower suspensions.
Figure 5
7 Install the shoulder bolts through the front support bracket and thread them into the rear support
brackets.
Figure 6
8 Remove one of the bolts from the outer clamp and install the outer clamp. The clamp should go above
and below the upper and lower suspensions.
Figure 7
