Assembly Instructions
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This tool is intended as a stationary machine for making straight lengthways and crossways cuts in wood.
Horizontal mitre angles of -45° to +45° as well as vertical bevel angles of 0° to +45° are possible.
ASSEMBLY
WARNING: To prevent accidental starting that could cause possible serious personal injury, ALWAYS
assemble all parts to your saw BEFORE connecting it to the power supply. The saw should NEVER be
connected to a power supply when you are assembling parts, making adjustments, installing or removing
blades, or when not in use.

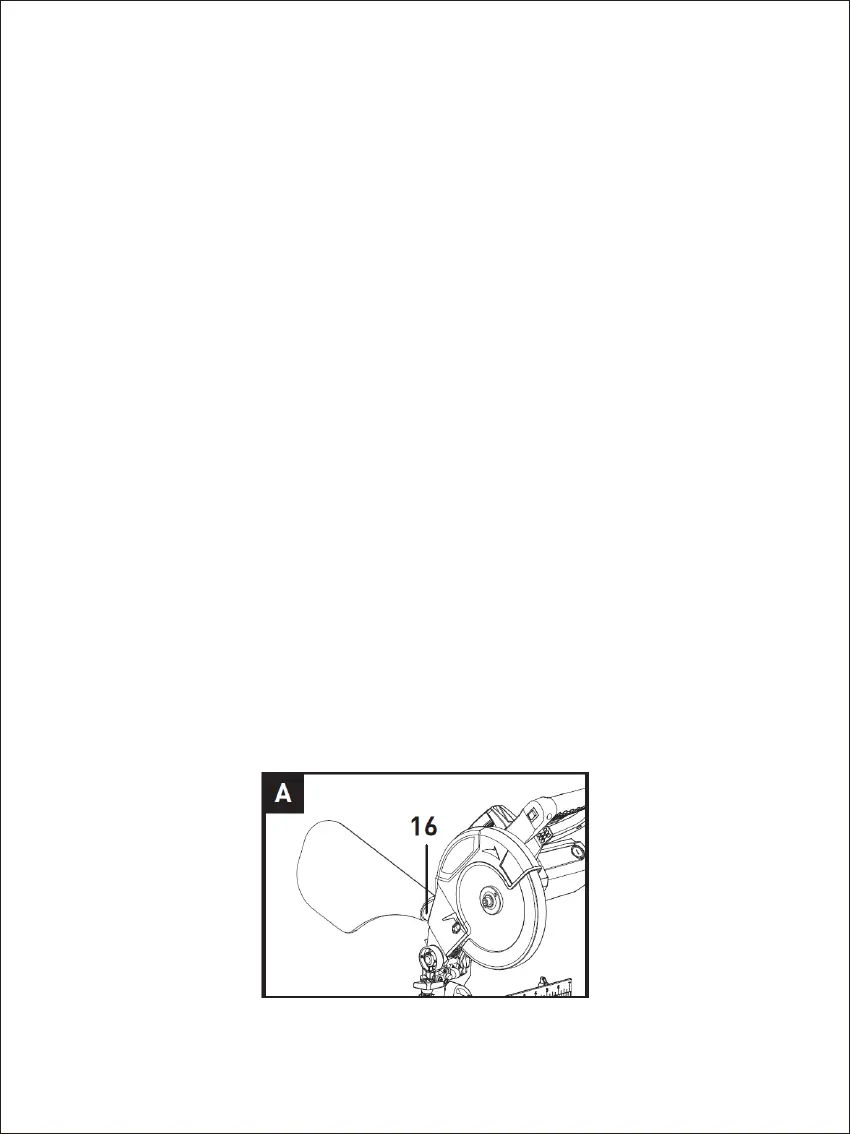

1. DUST EXTRACTION PORT (SEE FIG A)
To reduce build up of saw dust and maintain cutting efficiency, the saw dust collection can be achieved by
clipping a dust bag on the dust extraction port (16).
A dust bag is provided for use on your mitre saw. To install it, simply fit the dust bag over the extraction
port on the upper blade guard.
To empty the dust bag, remove it from the dust exhaust port, open the dust bag by unzipping the slide
fastener.
NOTE: To ensure optimal dust collecting, empty the dust bag when it becomes filled to approximately 2/3
of its capacity.
06
