XT-3 Reader Installation Manual & Data Sheet Doc no. 11-267 02
© TagMaster NA 14 (28)
5 Technical Data
5.1 Reader Overview

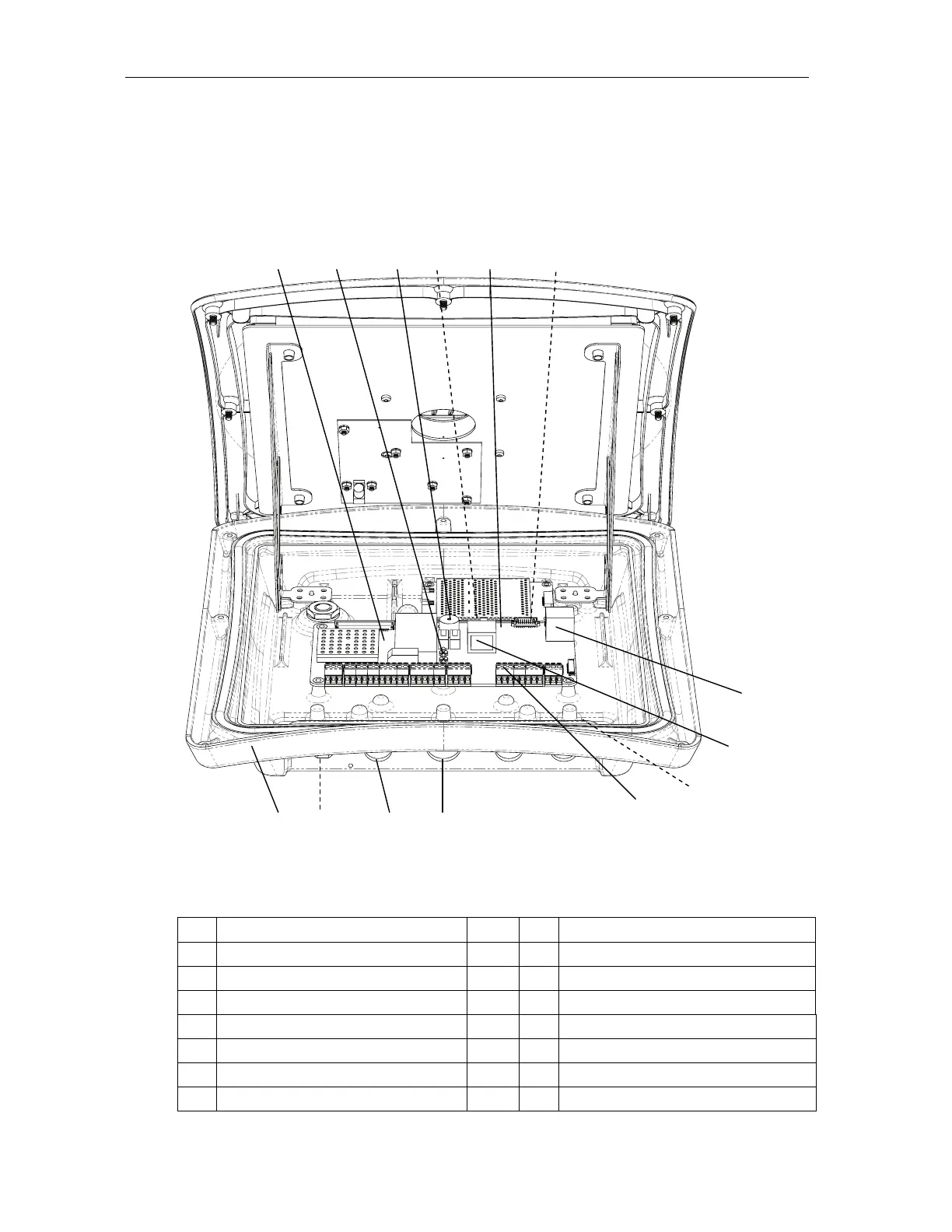

Figure 4 shows an overview of a TagMaster XT-3 reader with open lid.
Figure 4 Overview of the reader with open lid
The following table describes the position of the components inside the reader.
No Component No Component
1 Controller board 8 External antenna RF connector
2 Visible indicator 9 External antenna LED connector (M12-4)
3 Buzzer 10 Cable gland opening
4 Red system status indicator 11 Terminal blocks
5 Green system status indicator 12 Ground M3
6 Yellow system status indicator 13 Ethernet connector
7 Enclosure base 14 USB connector
2 1 3 4 5 6
7 8 9 10
11
13
14
12
