XT-3 Reader Installation Manual & Data Sheet Doc no. 11-267 02
© TagMaster NA 8 (28)
For optimal performance, tilt and rotate the reader into a position so that the front side
of the reader is parallel with the front side of the ID-tag to be read. Align the reader so
that the actual reading range is 60–70% of the specified maximum.

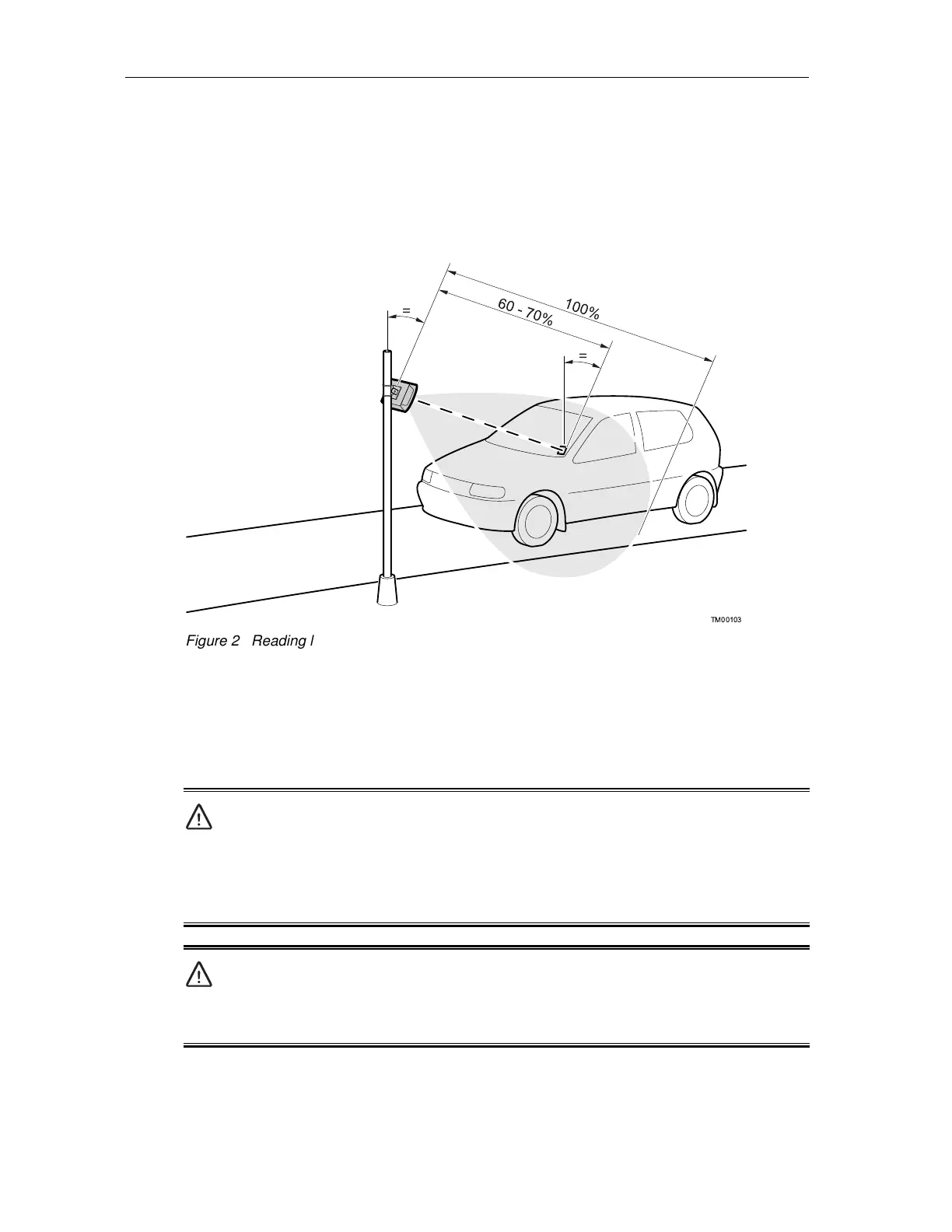

The figure below shows a typical reader installation. Note that the installation details
depend on site requirements.
TM00103
=
=
100%
60 - 70%
Figure 2 Reading lobe
How to mount the ID-tag depends on the type of tag and which object that is being
tagged. TagMaster’s windshield ID-tag should be mounted in a horizontal position in
the windshield. Note that some cars have a metallized windshield. The ID-tag must be
mounted in an area of the windshield without metallization.’
Never mount the reader close to, and directly facing, a large metal area.
Warning!
To comply with Council Recommendation 1999/519/EC and FCC regulations, this
reader must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.
Warning!
Hot surface! The back of the reader enclosure can become hot during continuous
operation in a hot environment.
The Universal Mounting Kit (Part No. 193600) from TagMaster enables the Reader to
be mounted in a wide variety of positions and angles. The kit contains all parts needed
