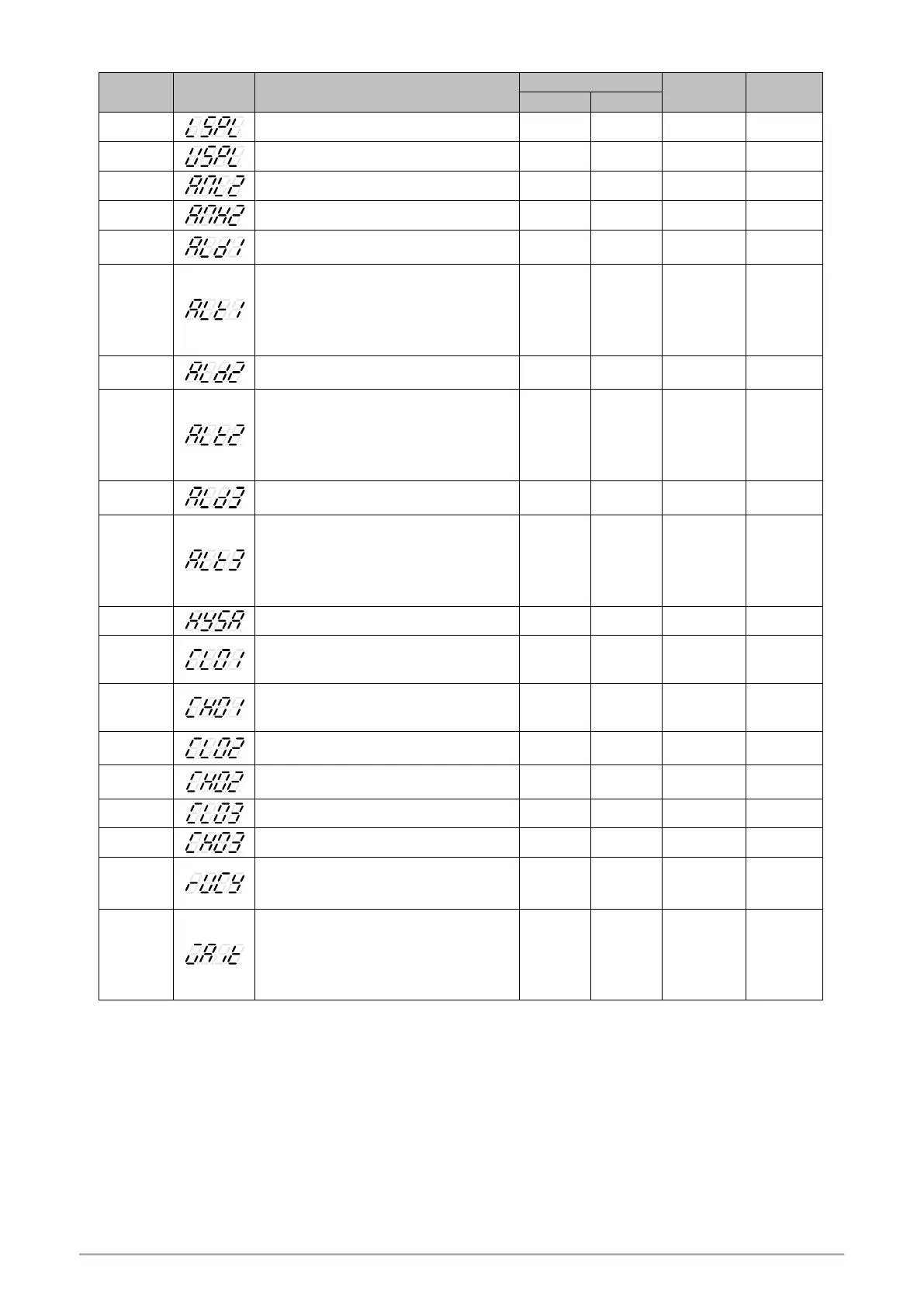

10.9 LEVEL_3 Parameter
Parameter
Symbol
Content
Range
Default
Hide/
Display
MAX
MIN
LSPL
Input scale low
9999
-1999
---
SET2.3
USPL
Input scale high
9999
-1999
---
SET2.3
ANL2
Sub input zero calibration
9999
-1999
0
SET2.4
ANH2
Sub input span calibration (hex display)
0x7FFF
0x0000
0x5FFF
SET2.4
ALD1
Alarm1 mode selection
(Please refer to Chapter 12.1 Alarm Mode)
19
0
11
SET3.1
ALT1
Alarm1 time setting
0.00
：
Flicker
99.59
：
Continued ON
0.01~99.58
：
delay time
Time format
：
min . sec
99.59
0.00
99.59
SET3.2
ALD2
Alarm2 mode selection
(Please refer to Chapter 12.1 Alarm Mode)
19
0
0
SET3.3
ALT2
Alarm2 time setting
0.00
：
Flicker
99.59
：
Continued ON
0.01~99.58
：
delay time
Time format
：
min . sec
99.59
0.00
99.59
SET3.4
ALD3
Alarm3 mode selection
(Please refer to Chapter 12.1 Alarm Mode)
18
0
0
SET4.1
ALT3
Alarm3 time setting
0.00
：
Flicker
99.59
：
Continued ON
0.01~99.58
：
delay time
Time format
：
min . sec
99.59
0.00
99.59
SET4.2
HYSA
Hysteresis setting for alarm1~3
999.9
-199.9
1.0
SET4.3
CLO1
Main output zero calibration
, only available in linear output
(Please refer to Chapter 14.5)
9999
0
0
SET4.4
CHO1
Main output span calibration
, only available in linear output
(Please refer to Chapter 14.5)
9999
0
3600
SET4.4
CLO2
Sub output zero calibration
, only available in linear output
9999
0
0
SET5.1
CHO2
Sub output span calibration
, only available in linear output
9999
0
3600
SET5.1
CLO3
Retransmission zero calibration
9999
0
0
SET5.2
CHO3
Retransmission span calibration
9999
0
3600
SET5.2
RUCY
Motor valve traveling time
unit
：
second
(Please refer to Chapter 11.6)
150
5
5
SET5.3
WAIT
Program execution standby temperature
0 : when program executed reach SV do not
waiting for PV temperature
Other values : when PV= (target SV-WAIT),
program entering next segment
(Please refer to Chapter 13)
100.0
0
0
SET5.3
