3.1.2. Power supply

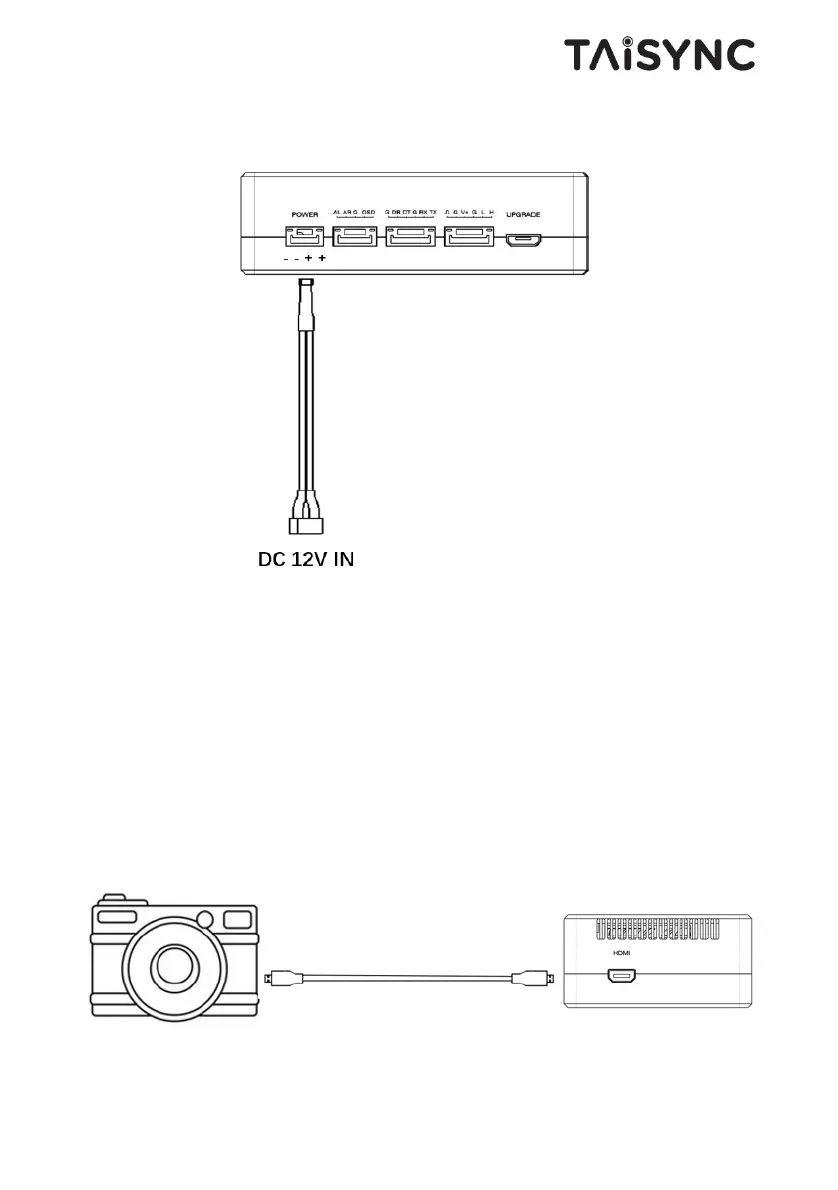

Pin-out: - - + +. Insert the four-pin connector of supplied power cable to the power port

of the air unit and connect the orange power connect of supplied power cable to a battery

output, or the power supply port of a drone. Recommended voltage is 12V.

Note:

(1) To avoid equipment damage, install antennas before powering on the units.

(2) Recommended rated voltage/current is DC12V/1.2A (or 3S lithium battery).

3.1.3. Connection to camera

Connect the HDMI video output port to the HDMI video input port of the air unit.
