3.2.4. Connection to remote controller

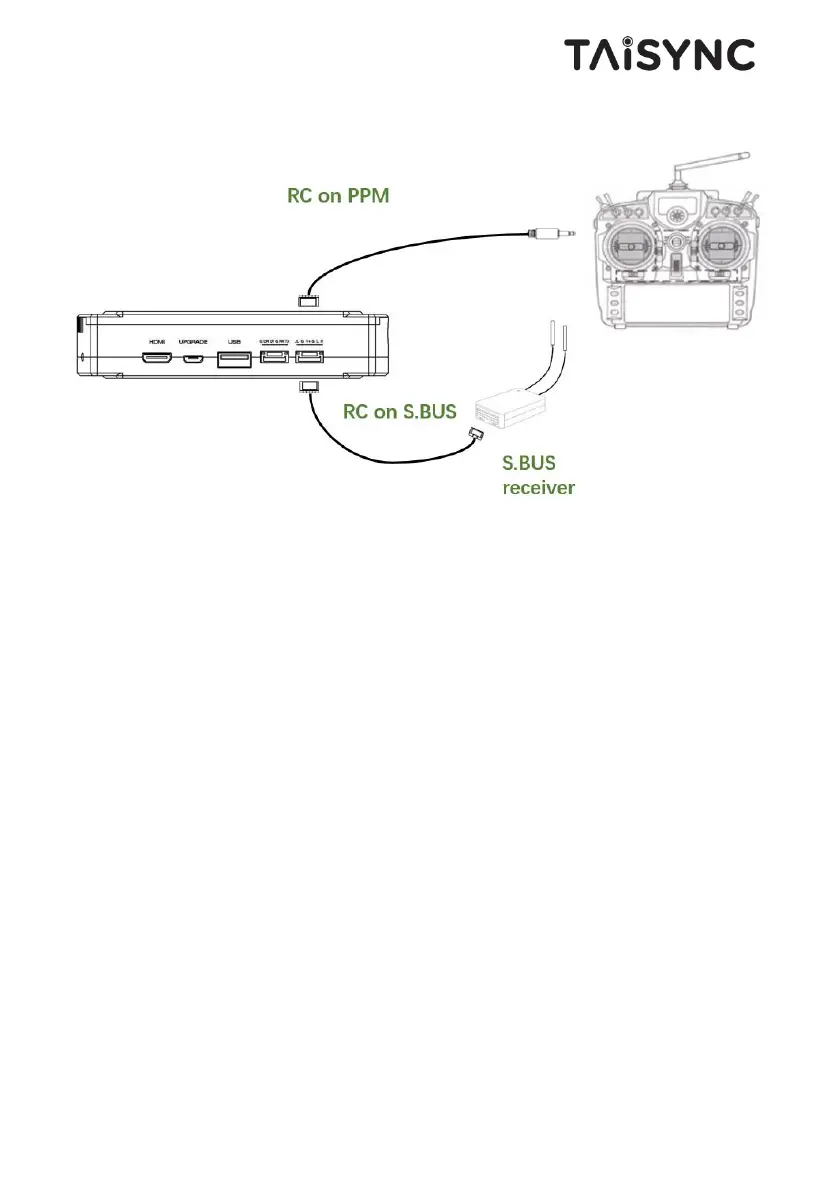

Using PPM mode: Insert the training connector of the supplied RC cable to the training port
of a remote controller and connect the six-pin connector of the RC cable to the RC port of
the ground unit.
Using S.BUS mode: Insert the six-pin connector of the RC cable to the RC port of the
ground unit, the other end connect the S.BUS receiver, and the S.BUS receiver
communicates with the remote controller in wireless communication.
Note:
(1) Ensure the remote controller is in training mode, it is configured to the PPM or S.
BUS working mode.
(2) Ensure the RC cable sequence matches the interface definition of Taisync module.
(3) If the S.BUS receiver is used, the working frequency of the receiver and the Taisync
module should be guaranteed with a certain degree of isolation.
