Taisync ViULinx Lite - Telemetry Connection

13

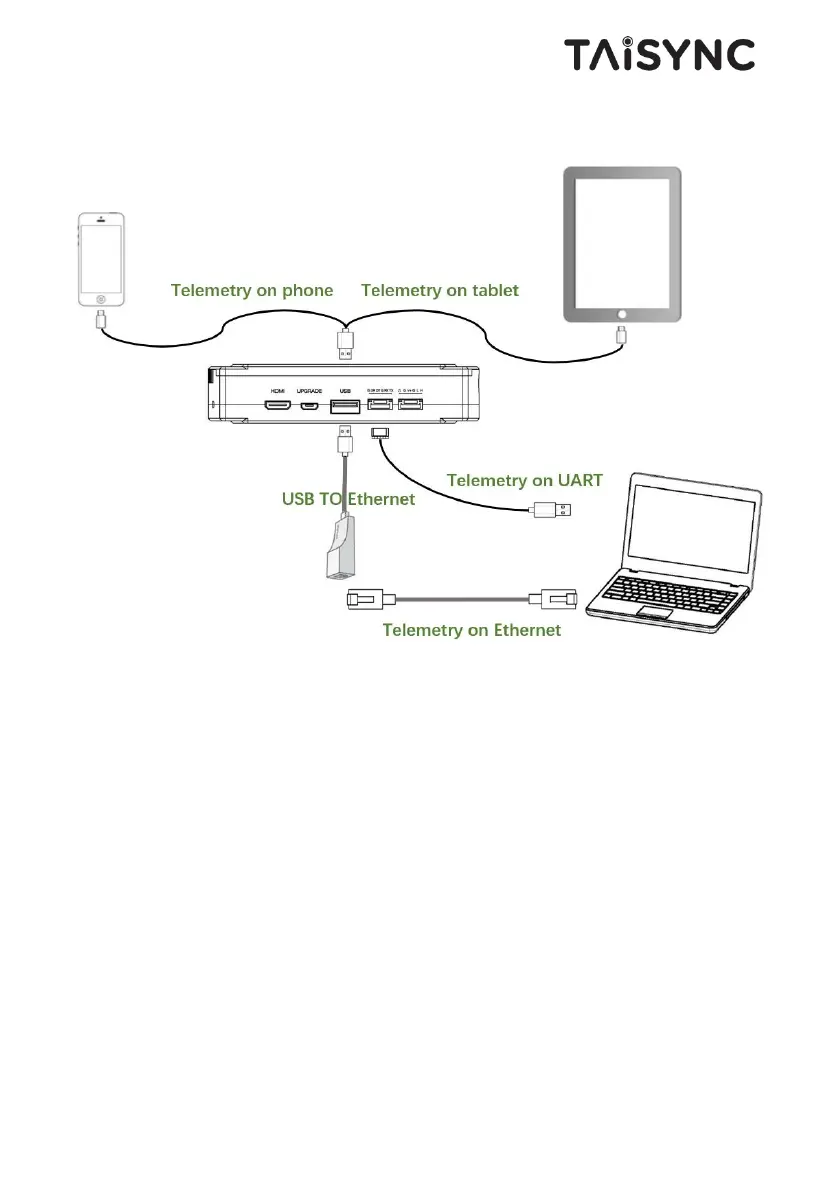

3.2.3. Telemetry connection
Insert the six-pin connector of supplied serial cable to the serial port of the ground unit and
connect the other end of supplied serial cable to the telemetry port of the ground control
station.
Note:
(1) Ensure the baud rate of ground station and the baud rate of Taisync module are
configured correctly.
(2) Ensure the serial cable sequence matches the interface definition of Taisync module.
