6
Connect this port to the training PPM/S.bus port of a remote controller. Remote controller can
use ViUlinxTM uplink to communicate with the drone. Pin V + can provide 5V power
supply.

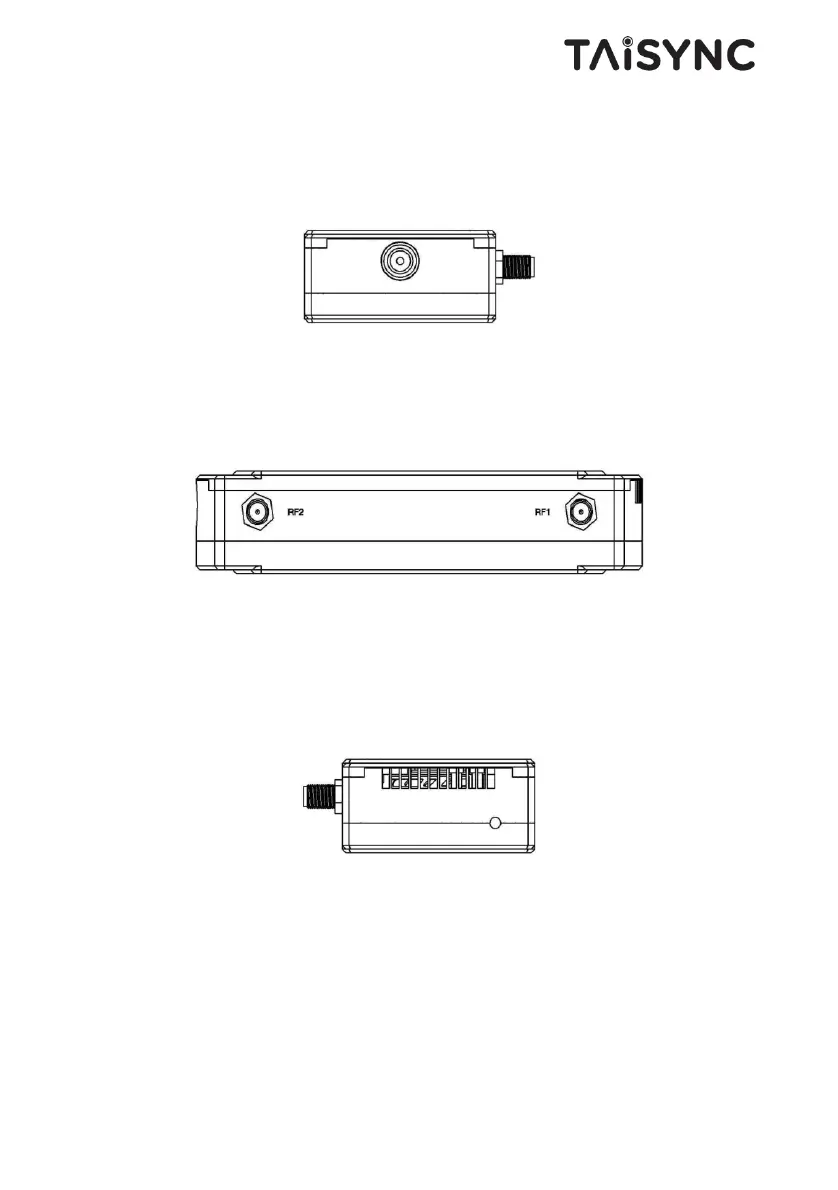

① Charging Port
Connect this port to the supplied power adaptor to charge the battery in the ground unit.
The power supply recommended 3s battery.
① RF2 Port
Connect the 2nd ground unit antenna to this port.
② RF1 Port
Connect the 1st ground unit antenna to this port.
① Bind Button
Press this button to perform the binding operation.
② Fan Ventilation Outlet
Don’t block this fan ventilation outlet to ensure effective cooling.
