M2000-00
8.12.5
Copyright TEL 31/12/97
8.12.4 T2000-60 Set-Up
Test Equipment Required
• AF signal generator
• modulation analyser
• high impedance voltmeter (e.g. VTVM)
•IBM
†
or compatible personal computer
• lead to connect radio to CE and AE, if required (refer to Figure 8.12.2 & Figure 8.12.3)
• oscilloscope
• power supply (+13.8V)
• RF signal generator
• 40dB RF attenuator

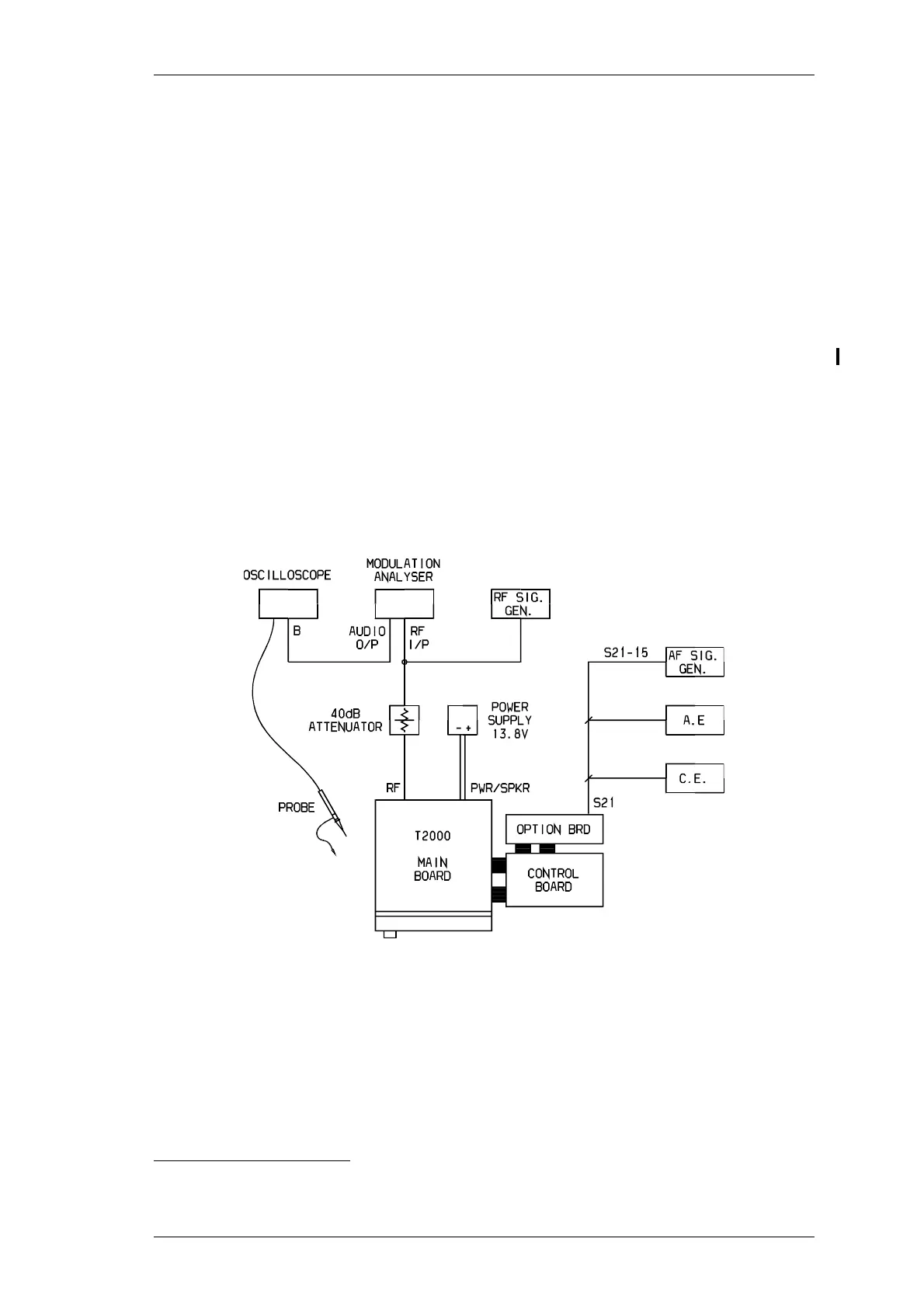

The following diagram shows a typical test set-up.
Figure 8.12.2 Test Equipment Set-Up
† IBM is the registered trademark of International Business Machines.
