Page 8 of 20 TN-906-AN
© Tait Electronics Limited 21 December 2005

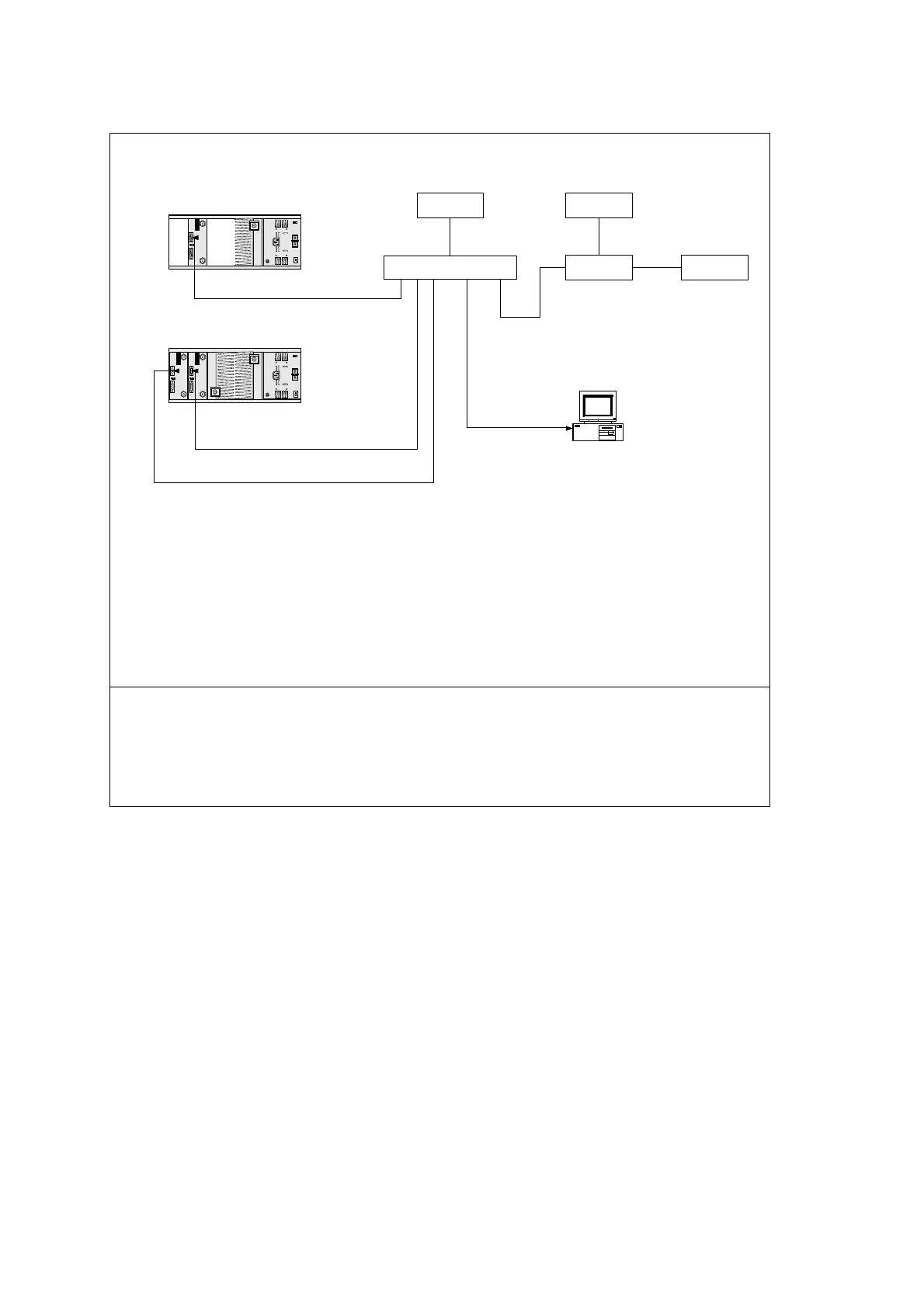

Figure 5 Combined PSTN and direct connections
Cables 1, 2, 3 & 4 9-way straight through (not null modem) RS-232 cable
Cable 5 9-way null modem RS-232 cable
Cable 6 APS power cable, either AC mains or –48VDC, depending on the model chosen
Cable 7 modem power cable, usually AC mains
Cable 8 Telco connection, usually RJ12 (also called RJ11 in some countries)
Notes
■ The illustration above shows base stations with TaitNet RS-232 system interface
boards, but front or rear connection can be used.
■ If possible, the PC should be connected to a spare APS port so that normal dial-in
and dial-out is not disrupted. If there is no spare port available, any port can be
used, but some disruption may then possibly occur.
?
Dial-up ModemAPS PSTN
APS Power Modem Power
Cable 1
Cable 2
Cable 4
Cable 6 Cable 7
Cable 8
Cable 3
Service Kit
Cable 5
Dual channel
Single channel
To Next Page
