12 Installation Options TM9300/TM9400 Installation Guide
© Tait International Limited August 2020
2 Installation Options
This section provides an overview of the main accessory kits that are
currently available for installing the following components:
■ radio body
■ remote control head
■ dual control heads
■ hand-held control head
■ desktop installation
Some installation options may not be suitable for some models of radio.
For more information, contact your regional Tait office.
2.1 Radio Body

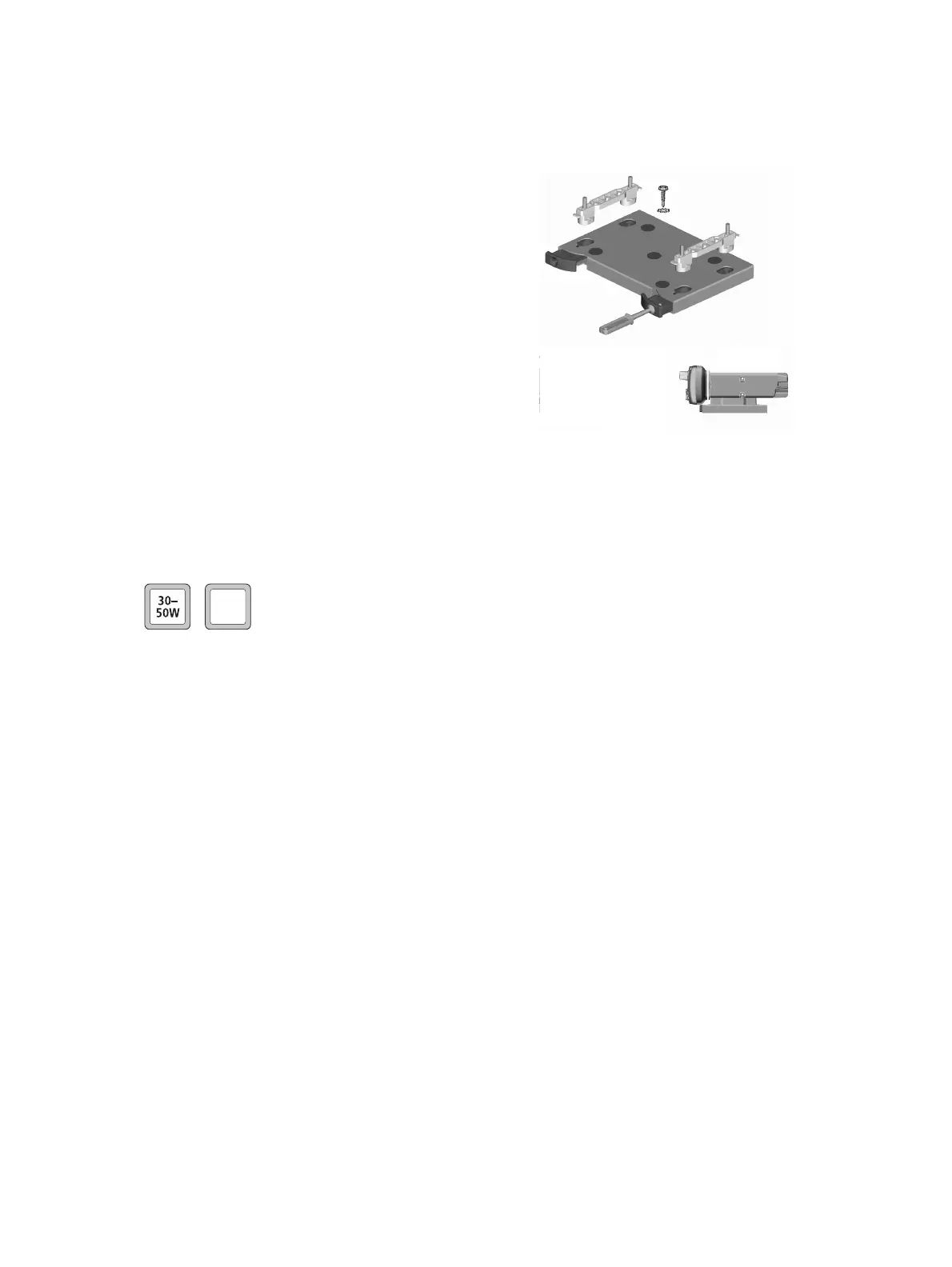

U-Cradle Install Kits The U-cradle install kits are supplied as standard for mounting a radio body
fitted with either a local control head or a remote interface (for a remotely
mounted control head).
The following kits are available:
■ TMAA03-22 (30-50W radios with BNC antenna connector)
■ TMAA03-17 (30-50W radios with mini-UHF antenna connector)
■ TMAA03-01 (25W radios with BNC antenna connector)
■ TMAA03-23 (25W radios with mini-UHF antenna connector)
The kits contain the following items:
■ U-cradle
■ thumbscrews
■ self-drilling screws and washers
■ power cable with DC connector
■ fuses with in-line fuse holders
■ receptacles for a remote speaker
(remote speaker not included)
■ crimp terminals for a remote
speaker
■ antenna connector
For full details on mounting the
U-cradle install kit and radio, refer to “Mounting the U-Cradle” on page 29
and “Installing the Radio” on page 38.
