16 Installation Options TM9300/TM9400 Installation Guide
© Tait International Limited August 2020
Refer to the installation instructions (402-00087-xx) provided with these
kits for full details.
Remote Head
Extender Upgrade
Kits
The T02-00064-2xxx remote head extender upgrade kits can be used when
extended distances are required between a TM9300 or TM9400 radio body
and the control head interface box or graphical-display control head (up to
a maximum of 750m).
Refer to the T02-00062-2xxx Remote Head Extender Upgrade Kits
Installation Instructions (402-00102-xx) for full details.
2.4 Hand-Held Control Head
Hand-Held Control
Head
The T02-00073-AAAx is a hand-held control head for mobile radios that
enables the user to operate the radio at a distance from the radio body.
The hand-held control head plugs into one of the RJ45 sockets on the
appropriate remote control head. A remote speaker is required when a
hand-held control head is installed. Refer to the T02-00073-AAAx Hand-
Held Control Head Installation Instructions (402-00101-xx) for full details.
Hand-Held Control
Head Remote
Interface Kit

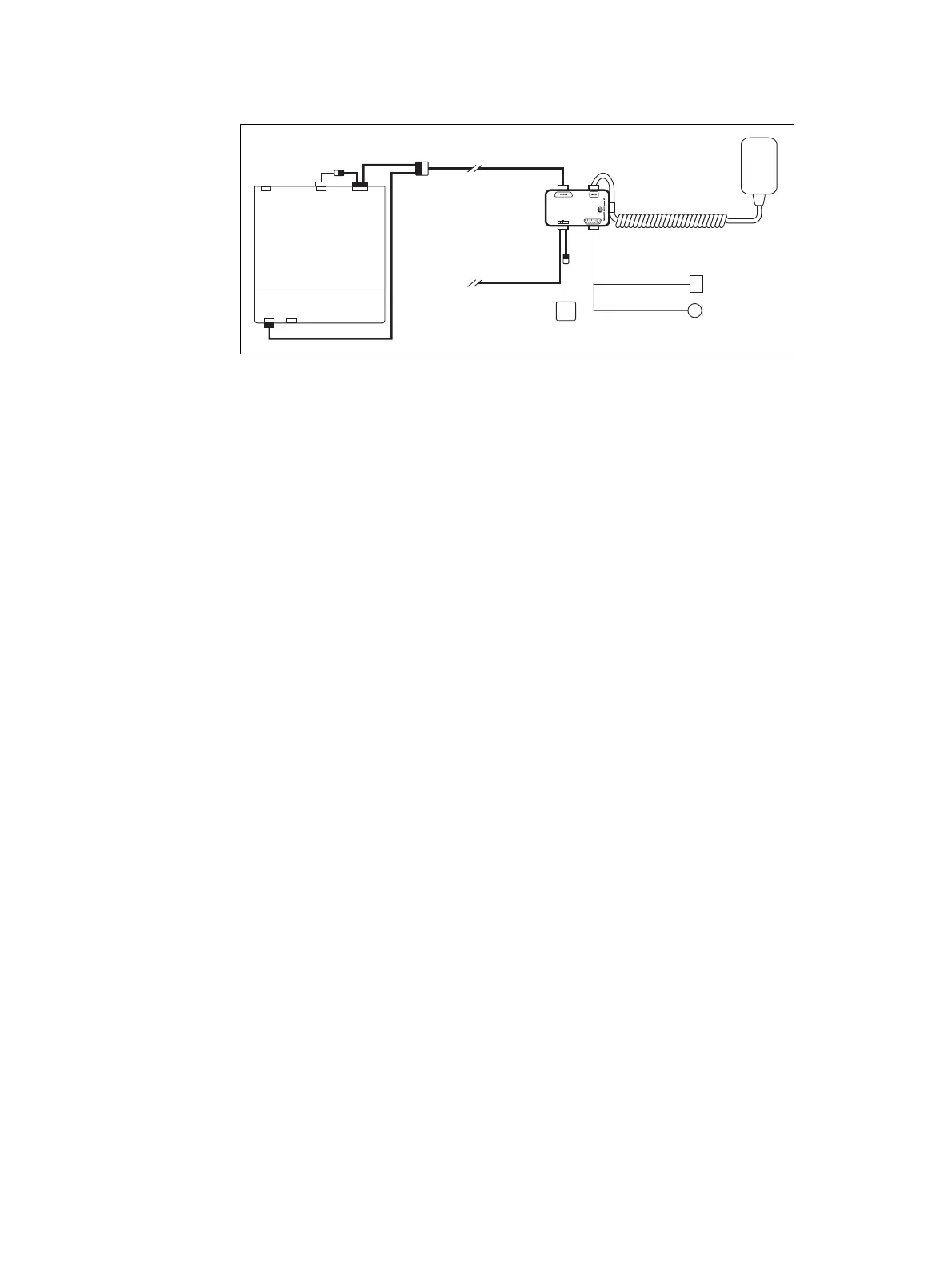

The T02-00063-2001 is an installation kit for remotely mounting the T02-
00073-AAAx hand-held control head. The following diagram summarizes
how the components are installed. The items named in bold are part of the
T02-00063-2001 kit. Refer to the TMAA03-32 Hand-Held Control Head
remote control head
TMAA10-03 or TMAA10-06
remote speaker
TMAC70
Zone 11
Channel 12
Talkgr
Menu
microphone
clip
8mm Allen key
T02-00073-AAAx
hand-held control head
T02-00073-AAAx
hand-held control head
remote control head
