38 Tait Orca Portable (TOP) Encryption Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited

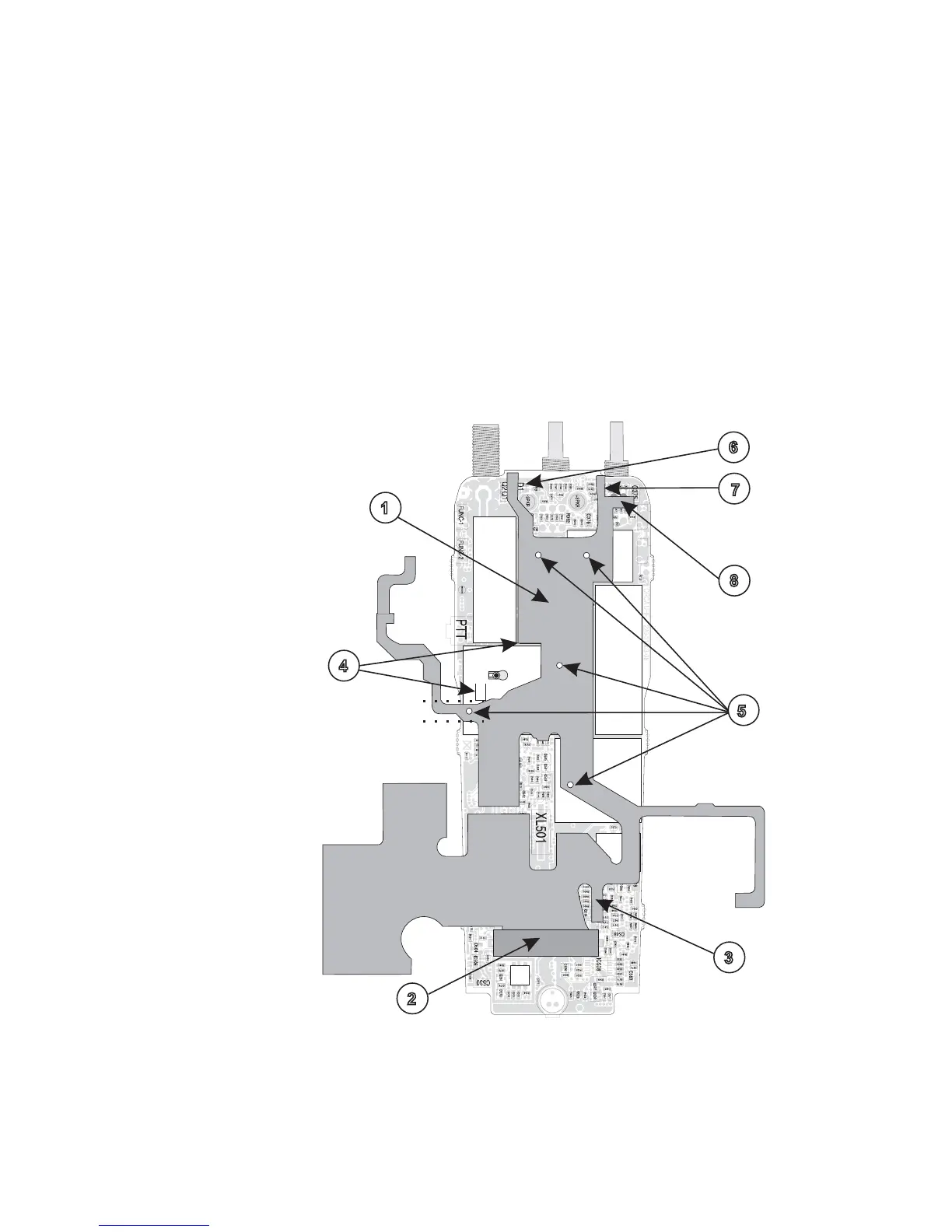

Fit Flex to TOP PCB (bottom side)
1. Lay flex onto PCB exactly as shown
2. Fit flex firmly into PL1 flex edge connector and press locking tabs
closed
3. Solder two flex pads to the position vacated by C572
4. Ensure flex fits exactly to corner of can, with the edge clear of the
PA can tag
5. Solder flex to cans, holding soldering iron to each point for at least
three seconds to ensure permanent joins
6. Solder flex pad to top pin of LED1 as shown
7. Solder flex pads to space vacated by R356
8. Solder flex pads to volume control switch pins 2 and 3 as shown
1
4
5
2
3
7
6
8
