17

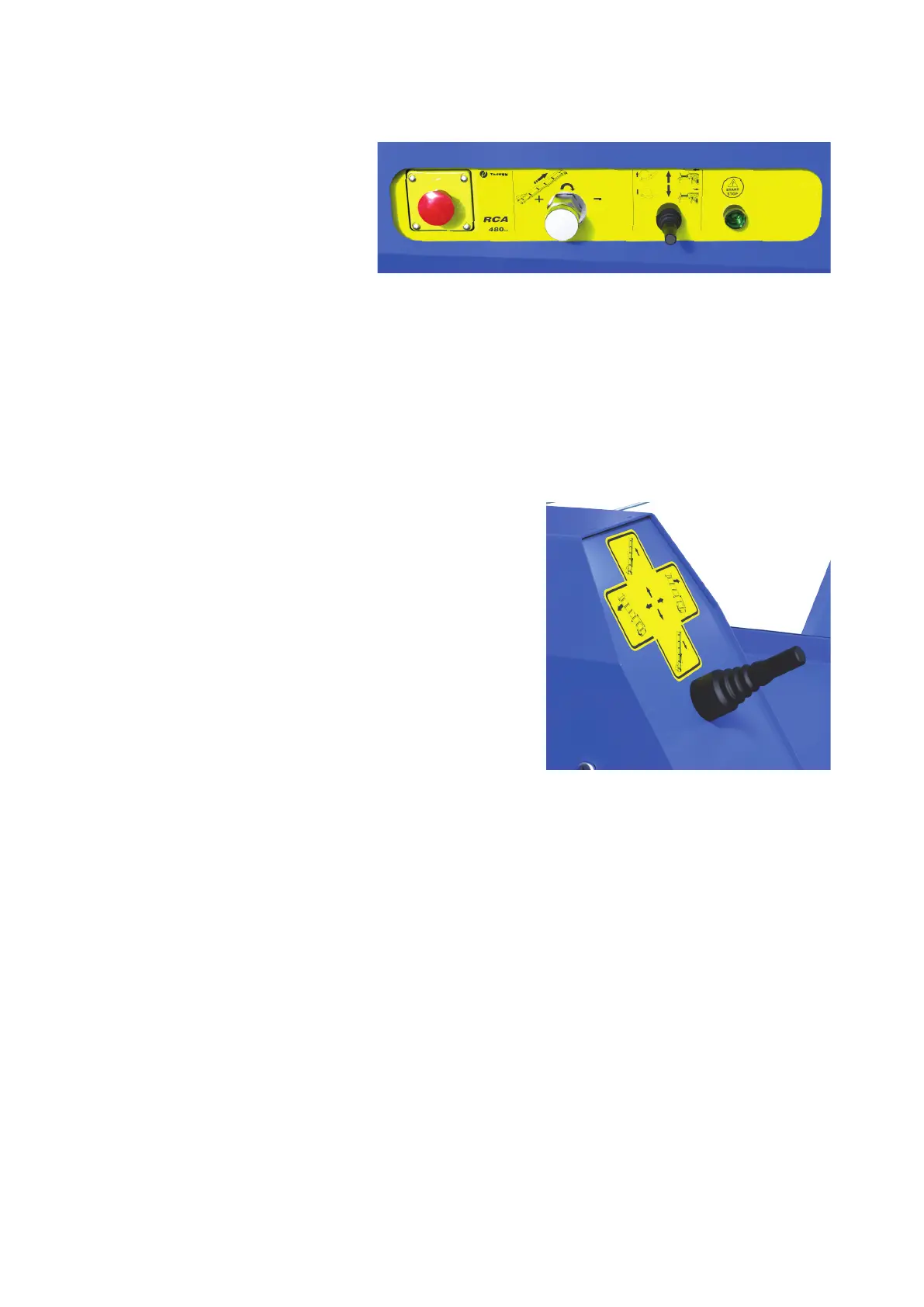

Additional functions:
A -> safety STOP switch
B -> conveyor belt speed regulator
C -> log loader - conveyor chain
D -> on / off switch for turning el.
system on and off.
Additional functions – conveyor:
• UP/DOWN -> raising and lowering the conveyor by
means of a hydraulic winch;
• LEFT/RIGHT -> moving the conveyor left and right
(15° to each side).
Warning!
The speed of these functions depends on the conveyor
belt speed valve settings.
If the speed is set too low, the hydraulic winch brake
remains engaged and the winch does not operate.
C
A
B D
