3.1. SCOPE OF THE OPERATING INSTRUCTIONS
The (RCA 480 JOY / RCA 480 JOY PLUS) firewood processor is used for processing firewood.
The operation process includes the following stages:
Loading logs on the log deck (optional), which allows the feeding of the logs transversally and
longitudinally, as well as synchronously with the in-feed conveyor.
Transporting logs with maximum diameter of 5 to 48 cm (2” to 18.9”) with the in-feeder conveyor
to the adjustable limiter, which can be used to set the cutting length (25 to 50 cm or 7.9” to 20” (See
chapter: Log feeding)).
Sawing with the chainsaw according to the set cutting length (See chapter: Sawing).
Splitting. The use of suitable splitting wedge allows adjusting the log size (cross-section) (See
chapter: Splitting).
Transporting logs with the adjustable conveyor (adjustable speed, height and transversal offset (See
chapter: Conveyor).
The quality of the logs, as well as the machine capacity, diminishes when using pre-split wood.
3. GENERAL

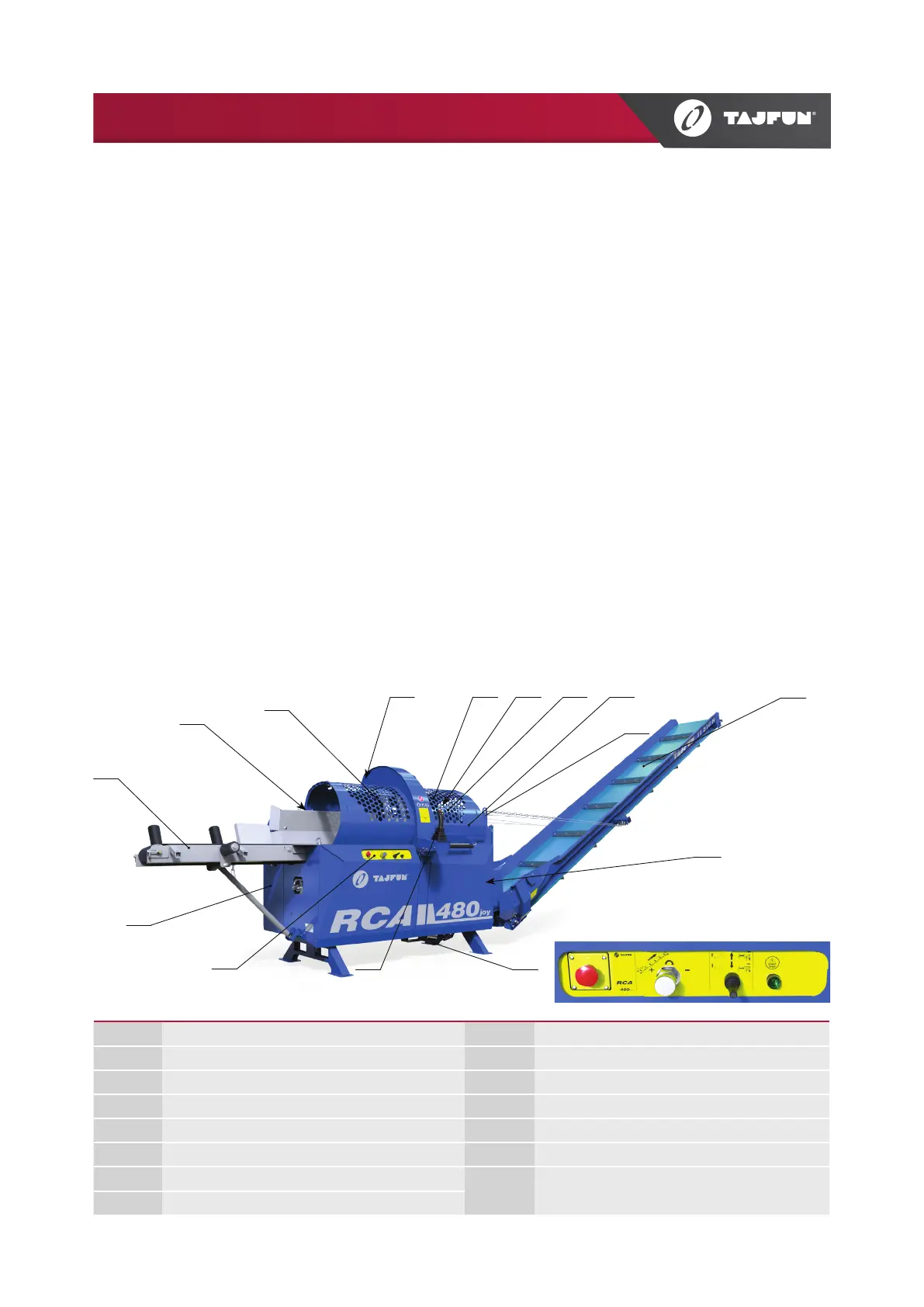

3.3. MACHINE’S MAIN COMPONENTS
3.2. DESCRIPTION OF THE MACHINE’S FUNCTIONS
These operating instructions apply to the following models:
• RCA 480 JOY
• RCA 480 JOY PLUS (See: RCA 480 JOY PLUS attachment to RCA 480 JOY operating instructions)
1 In-feed conveyor 9 Conveyor
2 Log holder 10 Splitting cylinder, splitting wedge
3 Chainsaw drive 11 Splitting wedge lifting mechanism
4 Chain lubrication oil reservoir 12 Control handle
5 Trapdoors 13 Control panel
6 Cutting length limiter 14 Hydraulic oil reservoir
7 Machine cover with a safety switch
15 Three-point hitch
8 Hydraulic pulley
1
2
3 4 5 6
7
8
9
10
11
12
13
15
14
