Tajfun RCA 480 JOY PLUS - Replacing the Cutting Chain Belt

34

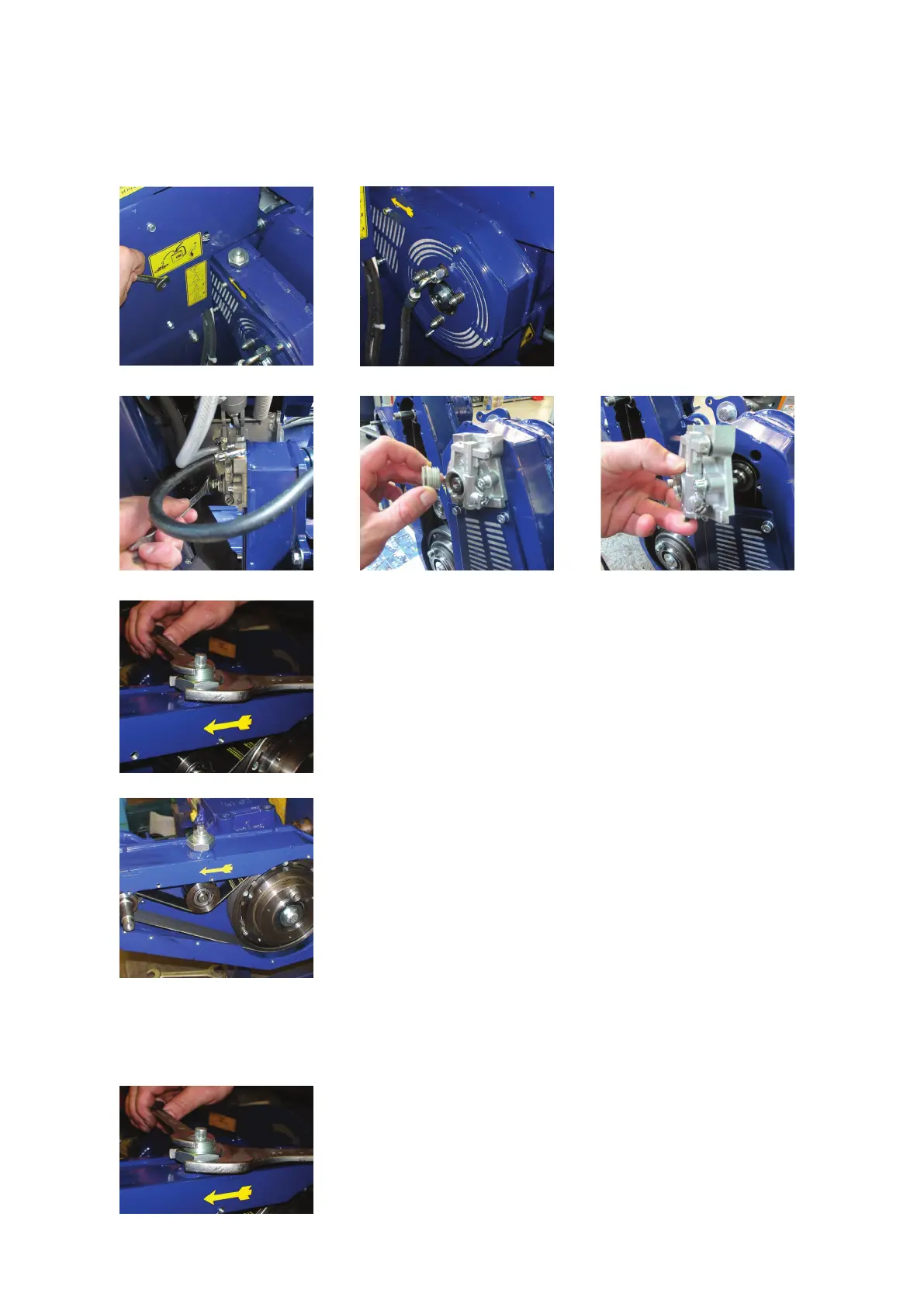

7.11. REPLACING THE CUTTING CHAIN BELT
• Disconnect the machine from the drive;
• Remove: drive protection, drive cover, hydraulic pipe, 3 spring screws;
• Unscrew the lubrication pump;
• Loosen the belt tensioner;
• Remove the belt from the driven pulley;
• Remove the old belt and clean the drive assembly;
• Insert a new belt;
• Install the belt on the pulley;
• Tension the belt and re-attach the elements: lubrication pump, drive cover with filter;
