TAJIMA TFMX-C - Layout of Electrical Component, Card

241
Spec. of the machine
Chapter 11
1
2
3
4
5
6
7
8
9
10
11
QS10

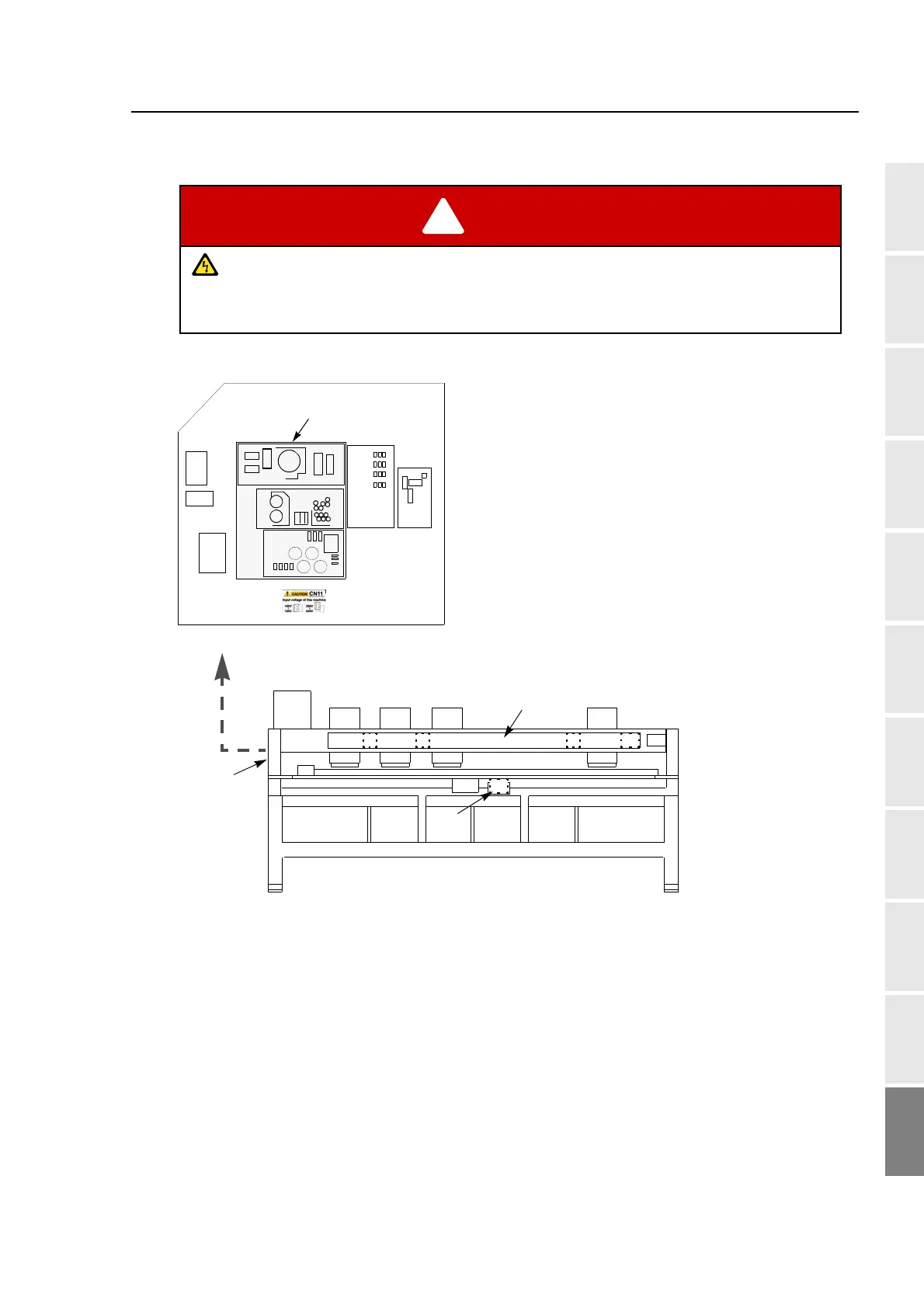

1-4. Layout of electrical component, card
Since there could be danger of electric shock, other persons than service personnel
certified by Tajima should not open the right-end box cover A, wiring cover B and Y-axis
driver box C.
Acrylic board
1
2
3
4
5
6
7
8
9
10
B
A
C
9 9
11
1. Breaker
2. DC 24 V power supply
3. Machine card
4. X-axis driver
5. Terminal base
6. DC 12/5 V power supply
7. Power supply card
8. Noise filter
9. Head card
10. Y-axis driver
11. Main shaft driver
!
DANGER
